Plastic Extruder Blowing Machine ZK-90B Bed Panel Drum Jerrycan
- NINGBO SHANGHAI
- T/T
You May Like
-
Accumulator Extrusion Blow Molding Machine Taizhou Machine
-
Extrusion Blow Moulding Machine for Life Buoy Ring Desk Panel
-
Plastic Blowing Machine Traffic Products Road Barrier Anti-bump Barrel Crash Cushion
-
Automatic Blow Molding Machine Jerrycan
-
Automatic Extursion Blow Moulding Machine Traffic Barrel
-
Plastic Blowing Machine ZK-90B Sprayer Tank Drum
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | shengda | Model Number | ZK-90B |
Product Description
Specifications
plastic blowing machine ZK-90Bimport PLC controller
30points parison control system
taiwan touch screen
barrel auto parts..
plastic blowing machine ZK-90B Model

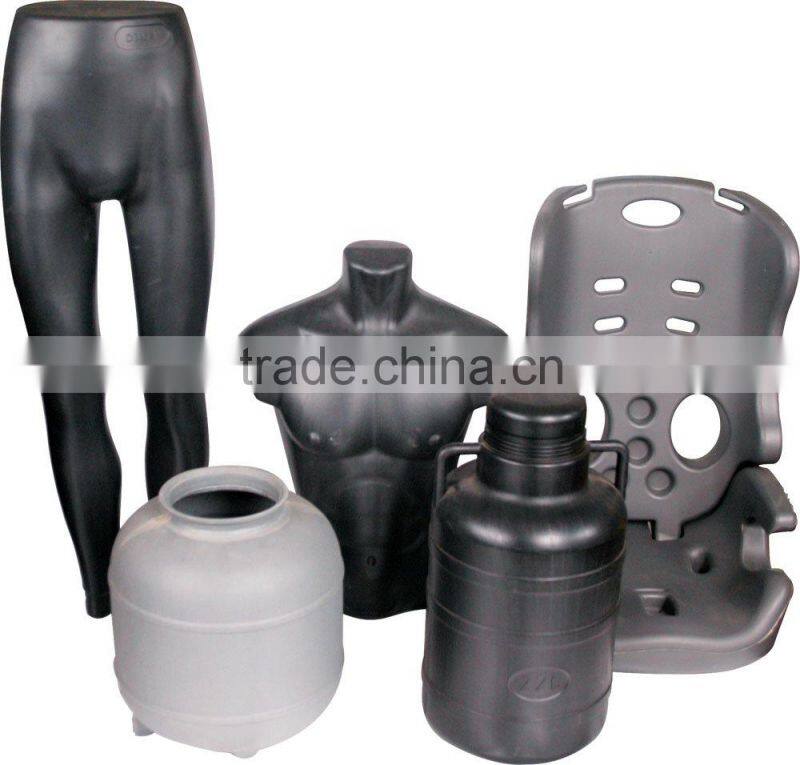

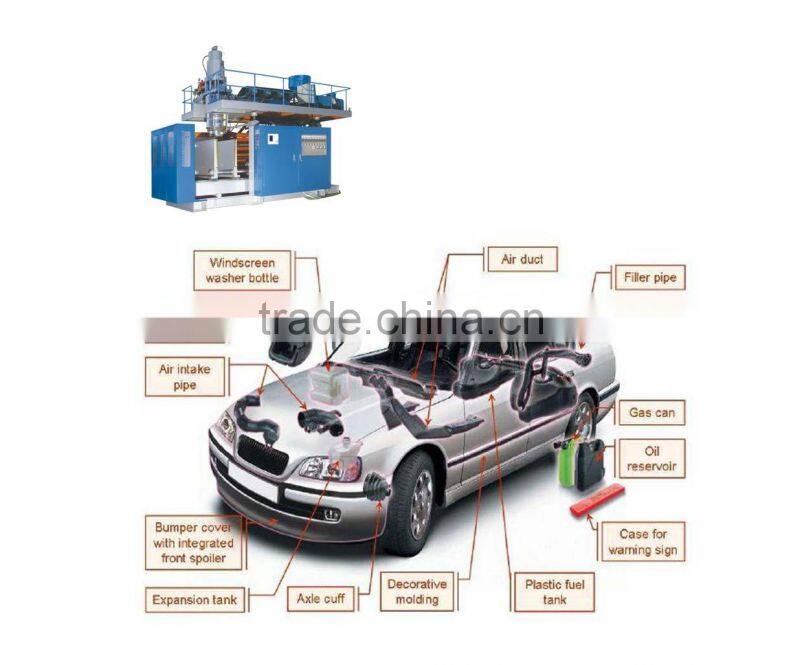

automatic large extrusion blow molding machine --- This model adopts fixed mould open-closing system and accumulator die. Parison programmer is available to control thickness.This model is automatic process with low noise, saving energy,high efficiency, safe operation, easy maintenance and other benefits. This model is widely used to produce chemical barrel, auto parts(water box,oil box,air-condition pipe,aoto tail), toys(wheel,hollow autobike, basketball stands,baby castle), tool box,vacuum cleaner pipe,chairs for bus and gymnasium,etc.This model can produce max 60L hollow plastic product.
good quality and best price, can make the needs of customers.
following is the technical specifications:
specification | unit | zk-90A | zk-90B |
max container capacity | L | 50 | 60 |
number of die heads | set | 1 | 1 |
machine dimension(L*W*H) | M | 5*3.1*3.2 | 5*3.1*3.9 |
total weight | ton | 7 | 9 |
clamping unit |
|
|
|
clamping force | KN | 300 | 300 |
platen opening stroke | mm | 350-1050 | 350-1050 |
max mould size(W*H) | mm | 700*1000 | 700*1000 |
mould thickness | mm | 360-500 | 360-500 |
power |
|
|
|
max drive | KW | 11 | 11 |
total power | KW | 63 | 70 |
fan power for screw | KW | 0.9 | 0.72 |
air pressure | Mpa | 0.7 | 0.7 |
air consumption | m3/min | 0.9 | 0.9 |
average energy consumption | KW | 28 | 35 |
extruder unit |
|
|
|
screw diameter | mm | 90 | 90 |
screw L/D ratio | L/D | 25:1 | 25:1 |
plasticizing capacity | kg/hr | 100 | 120 |
number of heating zone | zone | 5 | 4 |
extruder heating power | KW | 12.5 | 12.5 |
extruder driving power | KW | 22 | 30 |
accumulator head |
|
|
|
die head dimension | m |
|
|
number of heating zone | zone | 3 | 5 |
power of die heating | KW | 7 | 20 |
max die-pin diameter | mm | 350 | 350 |
accumulator volume | L | 5 | 6 |
