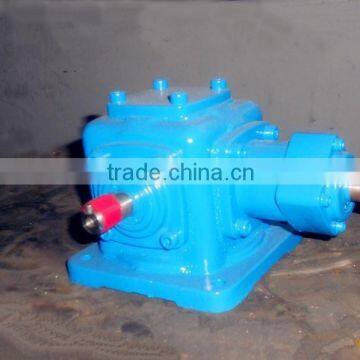

T series of bevel gear reducer 2:1 ratio 90 degree gearbox

Product overview:

T series of a spiral bevel gear steering box( 2:1 ratio 90 degree gearbox ), standardization, variety. 1:1 ratio, 1.5:1, 2:1, 2.2:1, 3:1, 4:1, 5:1 is the actual ratio.

Steering function of single, double, single longitudinal axis transverse, longitudinal optional double. Spiral bevel gear steering box can be both positive and negative operation, high speed and low speed are stable operation, and low noise, vibration small, large carrying capacity.

Product features:

1. Shell: high rigidity of the FC-25 cast iron casting;

2. Gear: gear with high purity alloy steel 20CrMnTiH quenched processing, carburizing quenching and grinding;

3. Main: shaft made of alloy steel quenching and tempering process, with the heavy load capacity;

Bearing: tapered roller bearing with heavy load capacity;

4. Oil seal: with oil seal lip, ability has dustproof and oil leak-proof high;

Models:

  T 2, 4, 6, 7, 8, 10, 12, 16, 20, 25

T series( 2:1 ratio 90 degree gearbox  ) gear unit is a new gear commutator designed & manufactured by bevel gear(hard gear) transmission principle.

1. High mechanical efficiency: 98% (depends on the transmission steps);

2. Input form:  shaft input;

3. Materials of gear unit body: HT250 high-strength cast iron;

4. Materials of shafts:42CrMo alloy steel;

5. Materials of gears : 20CrMnTi alloy steel;

6. Heat treatment: tempering, cementiting, quenching;

7. Surface hardness of gears: HRC58°-62 °;

8. Maching precision of gears: 6-5GRADE;

9. Brand of bearings: HRB, LYC,ZWZ,NSK;

10. Noise of gear unit: 60-68dB.
