F37 FAF37 Ratio of 3.81 ~ 128.51 Gear Box Motor Helical Gears Hardened Tooth Surface Modular One-piece Gear Speed Reducer
You May Like
-
F87 FAF87 Ratio of 4.20 ~ 271.92 Gear Box Motor Helical Gears Hardened Tooth Surface Modular One-piece Gear Speed Reducer
-
F57 FAF57 Ratio of 5.18 ~ 199.70 Gear Box Motor Helical Gears Hardened Tooth Surface Modular One-piece Gear Speed Reducer
-
F97 FAF97 Ratio of 4.68~ 276.64 Gear Box Motor Helical Gears Hardened Tooth Surface Modular One-piece Gear Speed Reducer
-
F107 FAF107 Ratio of 6.20~ 255.25 Gear Box Motor Helical Gears Hardened Tooth Surface Modular One-piece Gear Speed Reducer
-
F77 FAF77 Ratio of 4.30 ~ 281.71 Gear Box Motor Helical Gears Hardened Tooth Surface Modular One-piece Gear Speed Reducer
-
F47 FAF47 Ratio of 5.06 ~ 189.39 Gear Box Motor Helical Gears Hardened Tooth Surface Modular One-piece Gear Speed Reducer
Product Details
| Place of Origin | Hebei, China | Brand Name | WOSEN | |
| Model Number | F37/FA37/FAF37 | Gearing Arrangement | Bevel / Miter | |
| Output Torque | 200N.m | Rated Power | 0.18~3KW | |
| Input Speed | 1450r/min | Output Speed | 0.1r/min-1450r/min |
Product Description
Specifications
F37 parallel shaft gearbox/gear reducer/gear motor
1.with warranty
2.as design
3.IS9001
4. warranty
F37 parallel shaft gearbox/gear reducer/gear motor
F parallel shaft helical gear unitsFeatures:
It adopts hard tooth gear with high accuracy
Low noise and smooth running
High loading capacity, low in temperature rise and the long useful life
Few difference between transmission ratio rate, i = 228800
Compact structure, small size, convenient maintenance
SLF series reducers are based on the unique modulation combination system, so its convenient for them to fit all types of motors or to connect with other power input. The same type of reducer can fit motors with different power, so that its possible for different types of machines to combine or connect.

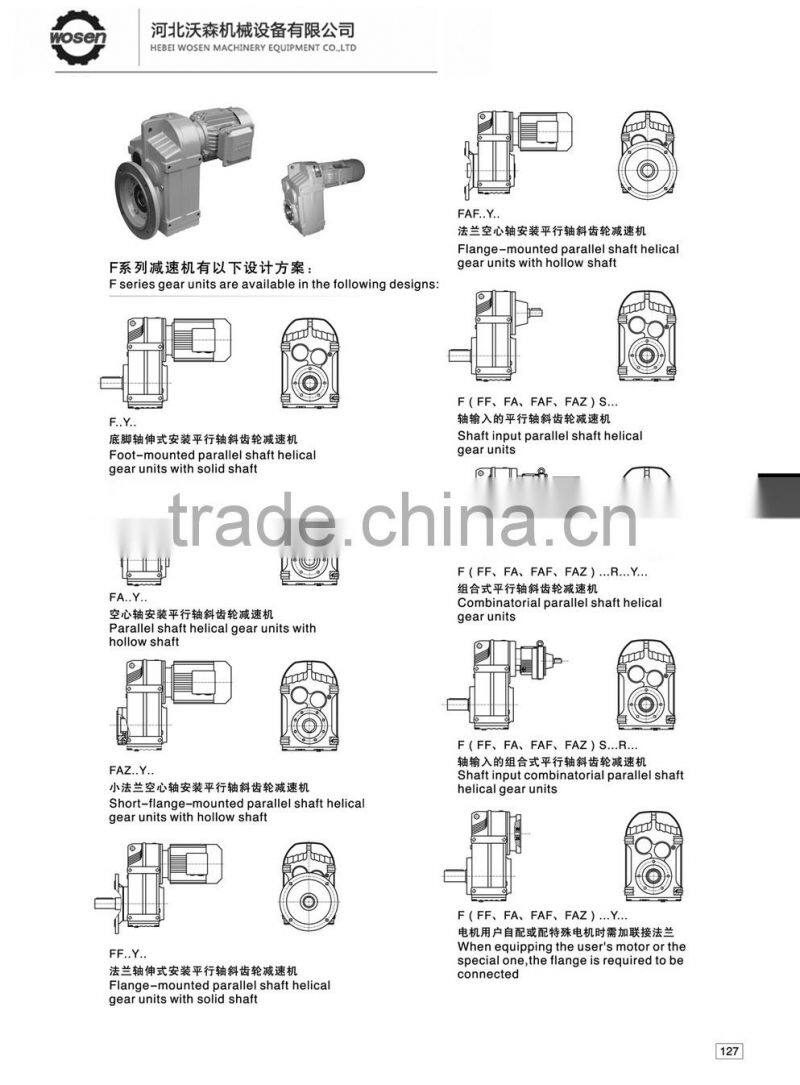

Installation: flange type, foot type, hollow shaft type,
Sze | Structure | Input power rating(kw) | Ratio | Maximum torque(N.m) | weight (KGS) |
37 | F FA FF FAF FAZ | 0.18~3 | 3.81~128.51 | 200 | 13 |
47 | 0.18~3 | 5.06~170.27 | 400 | 18 | |
57 | 0.18~5.5 | 5.18~199.46 | 600 | 34 | |
67 | 0.18~5.5 | 4.21~196.46 | 820 | 55 | |
77 | 0.37~11 | 4.20~243.46 | 1500 | 90 | |
87 | 0.75~22 | 4.12~270.68 | 3000 | 150 | |
97 | 1.1~30 | 4.68~270.64 | 4300 | 260 | |
107 | 2.2~45 | 6.20~255.25 | 7840 | 402 | |
127 | 7.5~90 | 4.63~172.33 | 12000 | 700 | |
157 | 11~200 | 12.07~198.14 | 18000 | 950 |
Application
1.Chemistry,Chemical Industry,Petroleum,Pharmacy and Dyeing
2.Environmental Protection,Sewage treatment,Tap water purification and Garbage treatment
3.Rubber,Plastics,Tyre,Tanning and Papermaking
4.Security door,Garage door,Automatic window and Lifting stage
5.Cement equipment,Mine and Coal Mine
6.Railway,Road,Construction,Bridge,Underground and Tunnel
7.Port and dock,Shipbuilding industry and Deep water dock unloading
8.Water conservancy Construction,Nuclear power industry and Hydropower industry
9.Automobile industry and Garage
10.Machine tool industry
11.Textile industry
12.Food,Brewage industry and Packing industry
13.Professional transmission mechanism for Hoisting machine
14.Steel and Smelting
