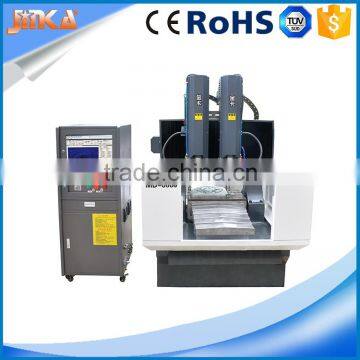

Cheapest metal mould making engraving machine
- 180 Set / Sets per Month
- Shanghai port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Condition | New | Place of Origin | Anhui, China | |
Brand Name | JINKA | Model Number | MD-8080 | |
Rated Power | 800W~2.2KW | Engraving Speed | 5m/min | |
Main Axle Rotational Speed | 10m/min | Feeding Height | 250mm, 250mm | |
Milling Cutter Diameter | 300*220mm | Application | Metal Materials | |
Dimensions | 500*600*460 Mm | Weight | 900kg | |
Certification | CE ROHS | Warranty | 1 Year | |
After-sales Service Provided | No overseas service provided |
Product Description
Cheapest metal mould making engraving machine
Technical Parameters
X,Y, Working Area | 800*800mm |
Feed height | 250mm |
X,Y,Z Traveling Positioning Accuracy | ±0.02mm |
X,Y,Z repositioning Positioning Accuracy | ±0.01mm |
X,Y,Z Structure | Ball screw,PMI linear rail from Taiwan |
Idle Speed | 10m/min |
Working Speed | 5m/min |
Working Voltage | AC380V/50HZ |
Command Code | G code/HPGL |
Spindle power | 3.0kw Chinese water cooling spindle |
Spindle speed | 6000~24000rpm/min |
Control system | NC Studio controller |
Collet | Φ3.175mm, Φ4mm, Φ6mm,Φ12.7mm |
X,Y Working Delicacy | <0.01mm |
Running circumstance | Temperature: 0°C~45°C humidity: 30%~75% |
Feature
1,Integrated casting body
2,Gear rack transmission
3,High precision ball screw and linear square rail
4,Large power, high precision water cooling spindle motor
5,Movement of table ensures highly accurate processing
6,Compatible with any advanced software such as Type3 /Artcam /CAXA /UG /Pro-E /Mastercam /Ucancam and so on.
7, All the mount surfaces for squre rails are well polished before installation.
8,Adopting imported servo system featuring high precision and long time working posesses malposition detecting and alarm function.
Aplications
Mould for small and medium vehicle parts,Pressing mould,High-frequency mould ,Carbon steel, stainless steel, Red copper electrode, aluminum and other metal materials; Woodiness material, aluminous model board, plastic board, PVC, acrylic, double color boards, density board, crystal and etc..
Carving type: Relief, graven images, valuable.such handiwork, carving, cutting, milling bottom, etc.
Hefei Kaxing Digital Control Equipment Co.,Ltd is a high-tech industry enterprise intergrating research,development,manufacturing,sale and after-sales service.We are able to offer preminum quality products an affordable price because we are a factory direct manufacture may offer similar products.We pride our-selves in not only our professional;and strict product line but also incredible custmer service & technical support.
1,There being a core manufacture specialized in Vinyl Cutter and CNC Router for more than 10 years;
2,CE,RoHS,,ECM,STQ certificated;
3,Strictly checking and controlling quality;
4,More than 60 distributors in domestic and international market;
5,Short delivery time(7~20 days);
6,The Core Competitiveness of product price;
7,Professional sale and aftersales
8,replying your any inquiry within 24 hours
We hope to build a deep and long-term cooperation with you as your any needs.
1.How could I get more informations from you?
You could send email,fax or phone us,told us what informations you want(such as air/sea freight,prices and so on),we will reply you in time,then you will know better about our CNC machine and service.
2.Why we have to buy cutting plotter from you?
We are one of the largest and best manufacture of CNC machine in China. We have many year's experience in producing CNC machine equipments,the quality and prices of our machines/materials are superior to others.
And we have specialized marketing group and technical team, we could provide the best service,advice to you.
3.How can I receive your goods?
If you order little quantities(below 100KG)you could use DHL,TNT,UPS or other air express company to delivery your goods,delivery time usually 3-4 working days,they will send the products to your address.
If you order large quantities,you could use sea delivery,and you need to go to your nearest seaport to take your goods,delivery time usually 30-40days.For more details,please contact with us.
4.Way of payment.
We accept the T/T,Western Union,paypal. When we receive your payment,we will prepare your goods and send to you in time. If you order large quantities,you could pay 30% deposit to us,when all the goods ready,we will take photos for you to check it.For more details,please contact with us.
5.How become your sole agent?
When you reach our request quantities,you could become our CNC machine sole agent in your country.
For more details, please contact with us.
