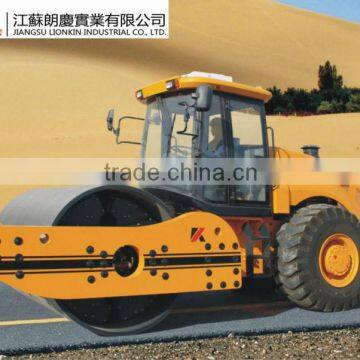

KS262D fully-hydraulic single drum vibration roller (double drive)
- QINGDAO
- T/T
You May Like
Product Details
| Condition | New | Type | Single Drum Roller | |
| Place of Origin | Shandong, China | Brand Name | LIONKIN-KOTAI | |
| Model Number | KS262D | Dimension(L*W*H) | 6800X2520X3250 mm | |
| Weight | 25500 kg |
Product Description
Specifications
Fully hydraulic Transmission and Fully electrical-hydraulic control facilitates the operation and enhances the automation.Main Features
A.SAUER driving and vibration system brings the stability and reliability.
B.Imported vibration bearing, “three prevention” electric plugs are of good quality
C.Fully hydraulic Transmission and Fully electrical-hydraulic control facilitates the operation and enhances the automation.
D.The walking is driven by hydraulic motor, and the monolever-controlling and CVT facilitates the operation.
E.Double frequency and double amplitude vibration makes sure the excellent effectiveness of compaction.
F.Fully-hydraulic articulated steering
G.Maintenance-free battery cell facilitates the maintenance.
H.Automatic power shutting off for braking can make sure the safety and reliability.
I.The stream line configuration and upturning engine housing are complined with people's aesthetic standard.
Technical parameters | ||
Model | unit | KS262D |
Working mass | kg | 25500 |
Static linear load | N/cm | 764 |
Amplitude | mm | 2.05/1.00 |
Vibrating frequency | Hz | 27/32 |
Centrifugal force | kN | 430/295 |
Speed range | km/h | 0-9 |
Grade ability | % | 45 |
Turning radius | mm | 6300 |
Width of vibration drum | mm | 2180 |
Radius of vibration drum | mm | 1650 |
Min. Ground Clearance | mm | 486 |
Model of engine | - | DEUTZ |
Engine power | kW | 155 |
Capacity of fuel tank | L | 280 |
Steering angle | - | ±35° |
Swing angle | - | ±12° |
Length | mm | 6800 |
Width | mm | 2520 |
Height | mm | 3250 |
Note1: Padfoot can be optioned to all the fully-hydraulic single drum vibration rollers with double drives.
Note2: According to the continuous improvement of our product's technology, please illustrate that listing parameter and structure's character are different from objects when ordering products.
.
