Home > Products > Earth Working Machinery > 416 Motor Grader

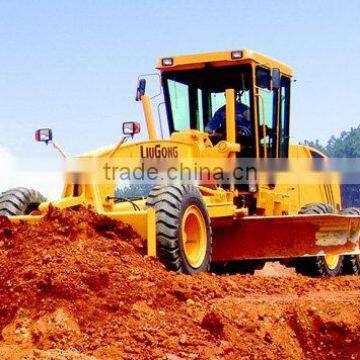

416 Motor Grader
- SHANGHAI
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Guangxi, China | |
| Brand Name | LIUGONG | Model Number | 416 |
Product Description
Specifications
Meets EPA Tier 2Operating Weight 14100kg
Rated Power 129kw
Max. Traction Force 76kN
Blade Cutting Depth 555mm
| Meets EPA Tier 2 | |
| Operating Weight | 14100kg |
| Rated Power | 129kw |
| Max. Traction Force | 76kN |
| Blade Cutting Depth | 555mm |
Operating Weight
Rated Power Operating Weight 14100kg
Max. Traction Force Rated Power 129kw
Blade Cutting Depth Max. Traction Force 76kN
Base operating weight(standard equipment) Blade Cutting Depth 555mm
working capacity(standard equipment) Total 14100kg On front wheels 3700kg On rear wheels 10400kg
Tandem drive Maximum draw pull 74.4kN Cutting pressure 8800kg
Front axle Height 552mm Width 210mm Center distance 1553mm
Steering Ground clearance 654mm
Hydraulics Min.turning radius 81234mm
Circle ure 21MPa Output 151.18@2200r/min
Moldboard Diameter 1230mm Thickness 90mm
Blade lift range Length 3960mm Height(chord) 650mm
Capacities Blade ground clearance 450mm Blade cutting depth 555mm
Engine Fuel tank 270L Hydraulic tank 100L Transmisson 45L Crankcase 22L Rated power 129kw Peak torque 800Nm Cylinders-bore x stroke 6-102×120mm Displacement 5.9L
