QUY25 Tracked Crane
- QINGDAO
- T/T
You May Like
Product Details
| Condition | New | Rated Loading Capacity | 25T | |
| Rated Lifting Moment | 735Kn.m | Max. Lifting Load | 25T | |
| Max. Lifting Height | 27.8m | Place of Origin | Shandong, China | |
| Brand Name | DAOFENG | Model Number | QUY25 | |
| Certification | ISO | Warranty | 1year | |
| After-sales Service Provided | No overseas service provided |
Product Description
Specifications

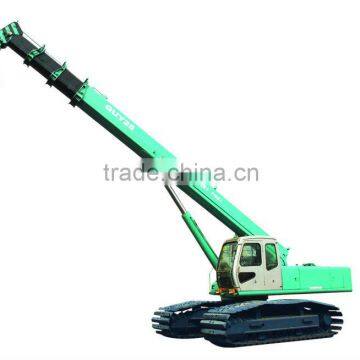

QUY25 tracked Crane with 360 Swing Mechanism and Four-section telescopic boom is a new productQUY25 CRAWLER CRANE
Rated Lifting Capacity:25,000kg 55,116 Ib
Max.Lifting Height: 27.4m 89.9 ft
Engine: CUMMINS 6CTA8.3-C215
Operating Weight:34,500Kg 76,059 Ib
QUY25 tracked Crane with 360°Swing Mechanism and Four-section telescopic boom is a new product developed by our company according to the market need . the crane uses the CUMMINS 6CTA8.3-C215 engine, lengthened and widened undercarriage,and marsh triangle track shoes, so it mainly used at the working site with the uneven surface and the place only short distance transportation is needed. especially swamp place where wheeled crane can not work.
Hoisting , boom lifting adjusting ,swing mechanism and telescoping boom and travel system are all driven by hydraulic pressure, which makes convenient and flexible operation and reliable performance, the travel motor has hydraulic and mechanic brake system. Safety attachments such as overflow valve, balance valve, buffcring valve are equipped to avoid overload of oil circuit and crack of oil pipe, in addition to this, height limiter, load indication and lighting are installed to ensure the safety and reliability of machine performance.
Lifting Working Range:
Overall Dimensions:
Main specification:
Engine | Engine Model | CUMMINS 6CTA8.3-C215 |
Engine Rated Output | 160KW/2200rpm | |
Fuel Consumption | 230g/KW.h | |
Max.Lifting Moment | Base Boom | 735Kn.m(245Kn*3m) |
Full Extended Boom | 450kN.m(50kN*6) | |
Max.Lifting Height | Base Boom | 9.8m |
Full Extended Boom | 27.4m | |
Base boom Length | 9.5m | |
Full Extended Boom length | 27.8m | |
Max.Hoisting speed of Hook | 10.2m/min(Eight Part Line) | |
13.6m/min(Six Part Line) | ||
Working Surrounding | -20°C~ +40°C | |
Section distance of chain rall | 203.2mm | |
Track Shoe Width | 1100mm | |
Min clearance part from groud | 480mm | |
Max. Grade Abilicity | ≥20° | |
Ground Pressure | 32kPa | |
