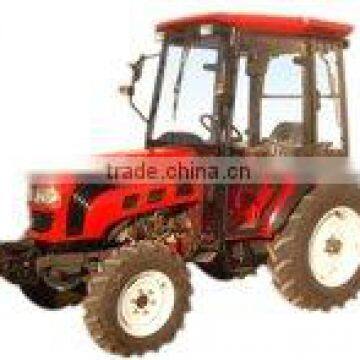

TE354(Flat floor platform)
Negotiable
/ Set
1 Set(Min. Order)
- QINGDAO
- T/T
You May Like
Product Details
| Condition | New | Type | Wheel Tractor | |
| By wheel | 4WD | Usage | Farm Tractor | |
| Certificate | Other, CE EPA ISO | Brand Name | FOTON | |
| Model Number | TE354(Flat floor platform) | Place of Origin | Shandong, China |
Product Description
Specifications
New platform model, side-positioned control, suspension-type foot pedal and optional Cab with heater models;
1. Short-wheelbase models, 8+2,8+8,16+4 variable speed gearbox, a variety of gear shifts selection and reasonable velocity distribution;
2. optional luxury seats, EC certificated seats;
3. Optional Agriculture tire, turf tire, paddy tire ;
4. Provides certified model of EPA.
| Parameter Items | Parameter Value |
| Drive type | 4 ×4 |
| Engine | |
| Engine type | Vertical,water-cooling,four stroke diesel engine |
| Max torque (N•m) @Rotational speed (rpm) | 124@(1560~1760) |
| Displacement (L) | 2.16 |
| Fuel tank capacity(L) | 2.16 |
| Fuel tank capacity(L) | 32 |
| Engine rated power kw@rpm | 25.7@2350 |
| PTO output kw@rpm | 21.88 |
| Drive system | |
| Clutch | Dry-type , double acting |
| Standard PTO speed rpm | 540/1000 |
| Gears | 8 + 8 |
| Gear shift mode | Shift sleeve + Shifting slide gear |
| Hydraulic system | |
| Hydraulic output flow (L/min) | 28 |
| Hydraulic output valve | 2 way |
| Working-device | |
| Three-point suspension mode | 1 Species |
| Lifting power(610mm point)KN | 5.79 |
| Lifting power (Upgrade origin)KN | 10.7 |
| Tractor parameter | |
| Overall dimension(LXWXH)mm | 3500 X 1550 X 2675(Safety frame)3500 X 1550 X 2400(cab) |
| Wheelbase (mm) | 1806 |
| Min ground clearance (mm) | 320 |
| Front tire | 7.5-16 |
| Rear tire | 12.4 -24 |
