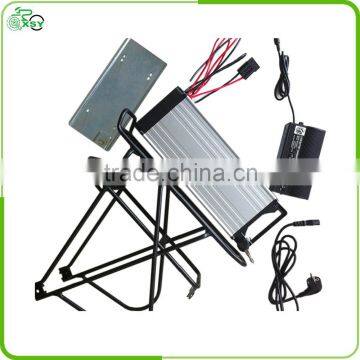

48 volt ebike battery

48 volt ebike battery

Battery Material Lithium NCM

Nominal Voltage 48V

Rated Capicaty 10Ah

Cell Rated capacity : 5000mAh(minimum)

Typical capacity : 11000 mAh

Minimum Capacity : 9000 mAh

Standard discharge : 15000mA (discharge end of 30V)

Maximum discharge current : 30000mA

Maximum charging voltage : 54.5V

Charging Mode CC/CV

Over Current Protection 25A±3A

Cycle Life 800 Cycles

Charge Temperature 0-45℃

Discharge Temperature -20-55℃

Certificates CE,UL

Range with one charge ≥40km (Motor 250W)

Charger

AC Input 100-240V,50/60Hz

DC Output 42V 2A

Charging Time About 5h

Safe Demand CCC CE

Wire Length AC 1m DC 1m

DC Pulg Inside:+ Lateral:-

QC Standard for Cells:

1. In good light,the surface should be smooth and dry,without crack,score,dirt etc.,the identification 2. should be clear and correct.
3. There should be clear polar identifications,the identification should be correct check by voltage meter.
4. Over discharge--no fire,no explosion,no leakage
5. Over charge--no fire,no explosion
6. Short circuit--no fire,no explosion

QC Standard for Battery Pack:

1. Check all connection included cell to cell, data wires between cells and BMS, BMS to the cell, BMS 2. to the discharging port and charging port
3. 100% capacity at 0.2C discharging and in normal temperature 20°c
4. >98% capacitive at 1.5C discharging and in normal temperature 20°c
5. >95% capacity at normal discharging in very high temperature 55°c
6. >50% capacity at normal discharging in very low temperature -20°c
7. Over-discharging testing
8. Over-charging testing

1. Use at temperature below 40°C,charge fully prior to long storage periods or if it has been stored for more than three months

2. If you find any single battery voltage is under 2V at room temperature,the battery has been over-discharged or is self-discharging due to some defect/parasitic load. Discontinue use until the fault can be corrected and the battery be recharged

3. Store in an open,well ventilated,dry,clean area, between -20°C to 40°C for maximum life. self-discharge will accelerated at higher temperature

4. Don’t expose the battery to extremes of temperature over 60°C,directly to sources of heat, direct sunlight or moisture and/or rain
