36v lithium ion battery pack for ebike

electric bike lithium battery

1. Plastic Casing battery with Key also battery gauge

BMS (BATTERY MANAGEMENT SYSTEM) and 100V~240VAC 50/60Hz 1.8A Universal Charger Included

2.Weight: 3.5Kgs

3.Capacities: 36V/10AH

4. Max Discharge Current: 30A

5.Max Continuous Discharge Current: 15A

6.Charging Cycles: >800 times

7.Reference Ranges(full electric mode): 30Km-35Km

8.Dimensions: Dimensions: 300mm L × 145 mm W × 150mm H

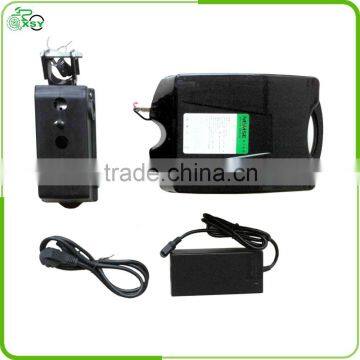

Package Content for 36v 10ah battery bike electric made in China

1 x 36V lithium ion battery

1 x 36V 100V~240VAC 50/60Hz 1.8A charger

Net weight: 4Kg

QC Standard for Cells:

1. In good light,the surface should be smooth and dry,without crack,score,dirt etc.,the identification 2. should be clear and correct.
3. There should be clear polar identifications,the identification should be correct check by voltage meter.
4. Over discharge--no fire,no explosion,no leakage
5. Over charge--no fire,no explosion
6. Short circuit--no fire,no explosion

QC Standard for Battery Pack:

1. Check all connection included cell to cell, data wires between cells and BMS, BMS to the cell, BMS 2. to the discharging port and charging port
3. 100% capacity at 0.2C discharging and in normal temperature 20°c
4. >98% capacitive at 1.5C discharging and in normal temperature 20°c
5. >95% capacity at normal discharging in very high temperature 55°c
6. >50% capacity at normal discharging in very low temperature -20°c
7. Over-discharging testing
8. Over-charging testing

1. Use at temperature below 40°C,charge fully prior to long storage periods or if it has been stored for more than three months

2. If you find any single battery voltage is under 2V at room temperature,the battery has been over-discharged or is self-discharging due to some defect/parasitic load. Discontinue use until the fault can be corrected and the battery be recharged

3. Store in an open,well ventilated,dry,clean area, between -20°C to 40°C for maximum life. self-discharge will accelerated at higher temperature

4. Don’t expose the battery to extremes of temperature over 60°C,directly to sources of heat, direct sunlight or moisture and/or rain
