Hot Sale in Canada!! 3 Ton Log/timber/wood Trialer With Telescopic Crane
- Qingdao
- T/T
You May Like
-
One Post Log Trailer
-
Log Loader Trailer
-
Tractor PTO Driven WC-6 Branch Chipper
-
CE Approved Telescopic Crane and Trailer/ Timber Trailer With Crane
-
Manufacturer Supply Wood Timber Log Trailer With Crane/ Forestry Trailer and Grapple
-
Tractor Towable Log Trailer With Crane/ Hydraulic Timber Crane With Trailer
Product Details
| Condition | New | Type | Other, forestry machinery | |
| Use | Log load and transport | Power Type | Other, diesel/ gasoline engine/ PTO pump | |
| Production Capacity | load capacity 1-12 ton | Place of Origin | Shandong, China | |
| Brand Name | SMATRA | Model Number | ZM3004 | |
| Dimension(L*W*H) | 4200*1500*1300 | Weight | 1010-3200kg | |
| Certification | CE Certificate | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Hot sale in Canada!! 3 ton log/timber/wood trialer
with telescopic crane
SUNCO factory ZM series log trailer with crane with loading capacity of 1ton, 3ton, 5ton, 8ton, 10ton and 12ton.
Common crane and telescopic crane can be choosed.
Grab crane has a 400 - degree rotation, work for forest farm, sugar cane, wood, paper mill to realize grasping, stacking, conveying, loading and unloading.
Three kinds of trailer can be choosed: multiple beam trailer, single girder trailer, steel plate trailer
Parameters of all models:
Model | ZM1002 | ZM3004 | ZM5004 | ZM8006 | ZM10006 | ZM12006 |
Matching Power | 10-25 hp | 20-50 hp | 30-60 hp | 50-80 hp | 70-100 hp | 80 -140 hp |
Machine Weight (kg) | 1010 | 1790 | 2040 | 2750 | 3000 | 3200 |
Trailer Section: | ||||||
Trailer Model: | TR10 | TR30 | TR50 | TR80 | TR100 | TR120 |
N/W of Trailer (kg) | 420 | 690 | 940 | 1450 | 1700 | 1900 |
Rated Loading Capacity | 1T | 3T | 5T | 8T | 10T | 12T |
Loading Area | 0.85 m2 | 1 m2 | 1.6 m2 | 2.2 m2 | 2.5 m2 | 2.8 m2 |
Total Length of Trailer | 3.6 m | 5.1 m | 5.1 m | 5.9 m | 6.3 m | 6.3 m |
Trailer Loading Length | 2.0 m | 3.1 m | 3.1 m | 3.8 m | 4.3 m | 4.3 m |
Total Width of Trailer | 1.4 m | 1.6 m | 1.8 m | 2.2 m | 2.3 m | 2.5 m |
Assistant Hydraulic Steering | No | Standard | ||||
Dia.of Traction Hole | 33 mm | 38 mm | ||||
Tire Model | 6.00 - 13 | 7.00 - 16 | 8.25 - 16 | 400/60-15.5 | ||
Crane Section: | ||||||
Model | CR02 | CR04 | CR06 | |||
Weight of Crane (kg) | 590 | 1100 | 1300 | |||
Max. Arm Reach | 3.5 m | 4.3 m | 6 m | |||
Lifing Capacity/Arm Reach (kg/m) | 400/2, 300/3, 200/3.5 | 900/2, 760/3, 500/4, 450/4.3 | 990/2, 760/3, 500/4, 340/5, 240/6 | |||
Rotating Angle | 370° | 400° | 400° | |||
Grab Section: |
| |||||
Grab model | TG019 | TG024 | TG029 | |||
Weight of Grab(kg) | 90 | 130 | 160 | |||
Max. Grab Opening Width(mm) | 1140 | 1300 | 1430 | |||
Grabbing Dia. of Logs(mm) | 80 - 420 | 70 - 485 | 75~530 | |||
Power (option): | PTO/ Gasoline Engine/ Diesel Engine | |||||

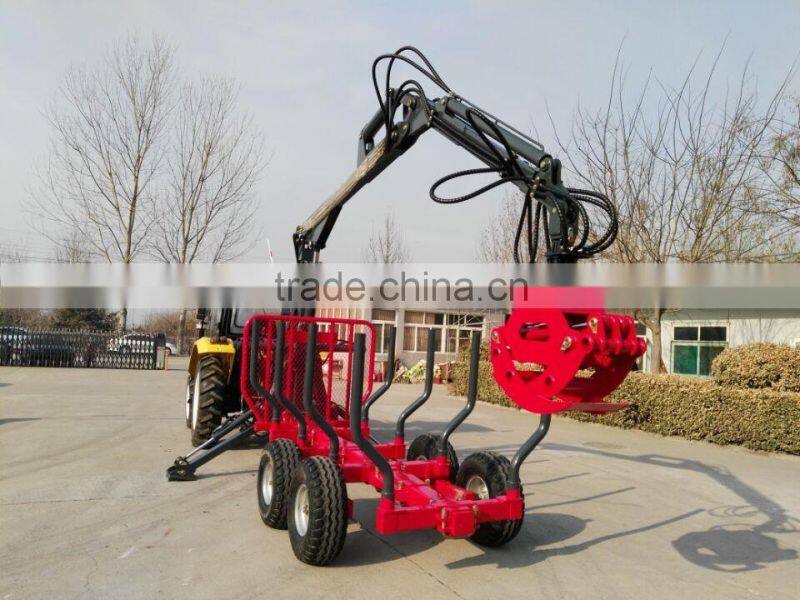

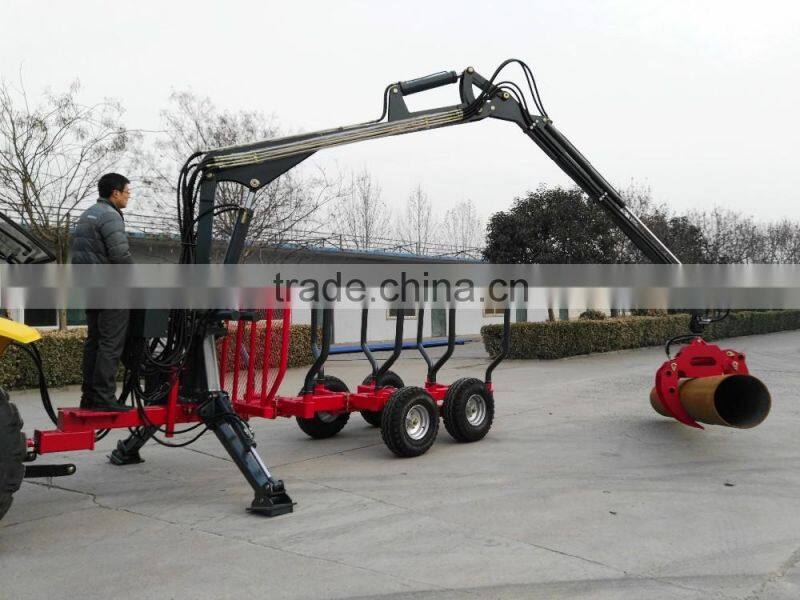

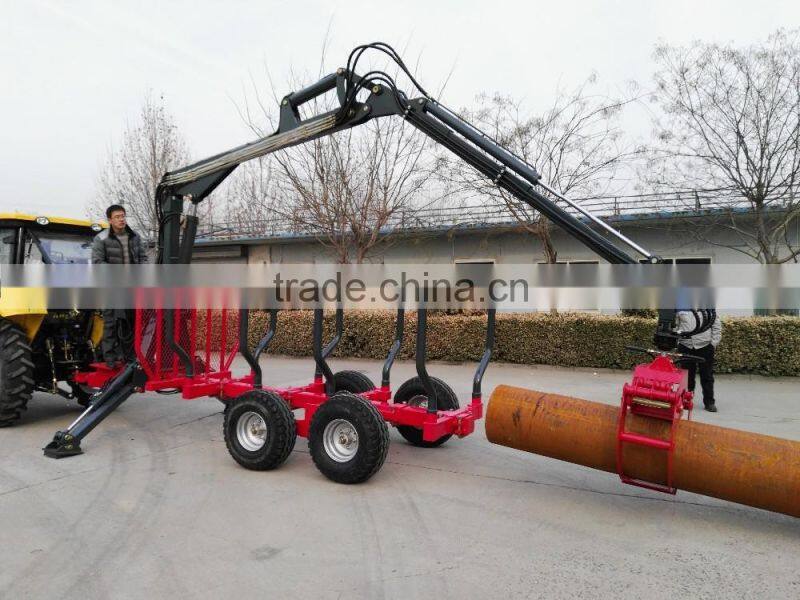

Pictures:

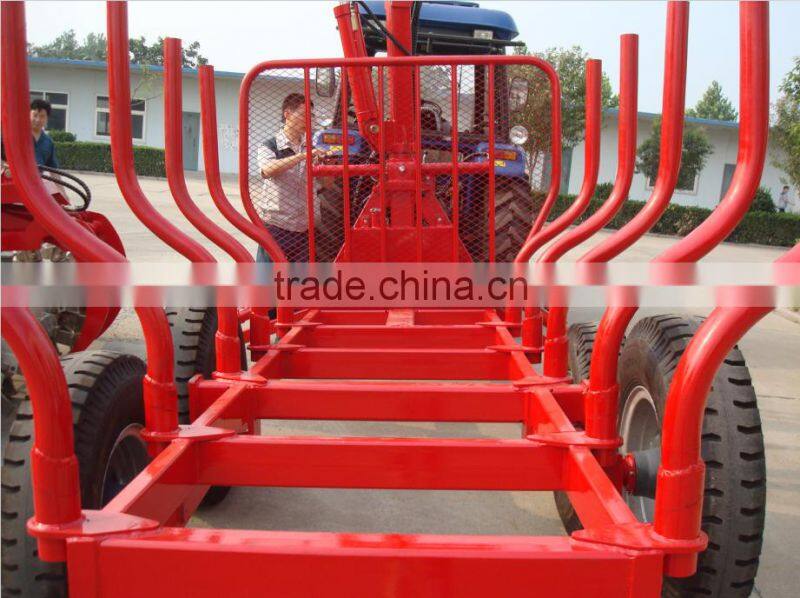

multiple beam trailer
single girder trailer

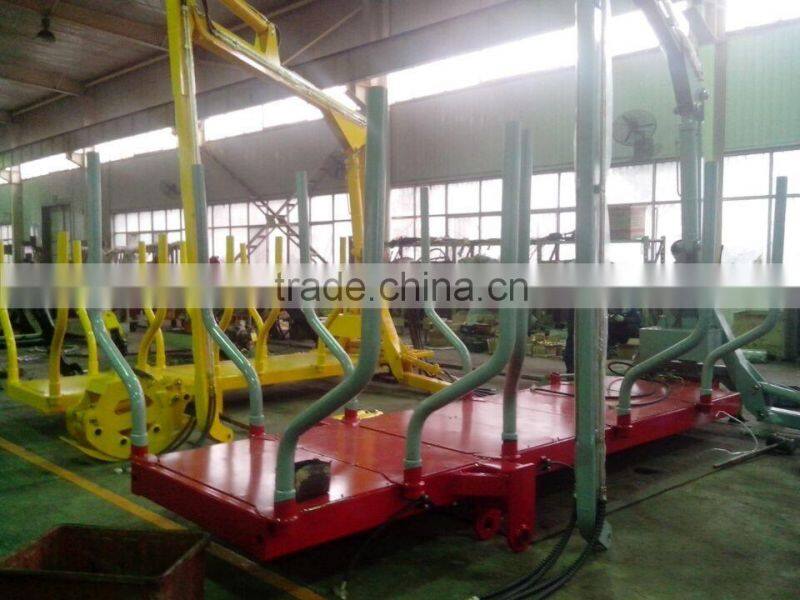

steel plate trailer

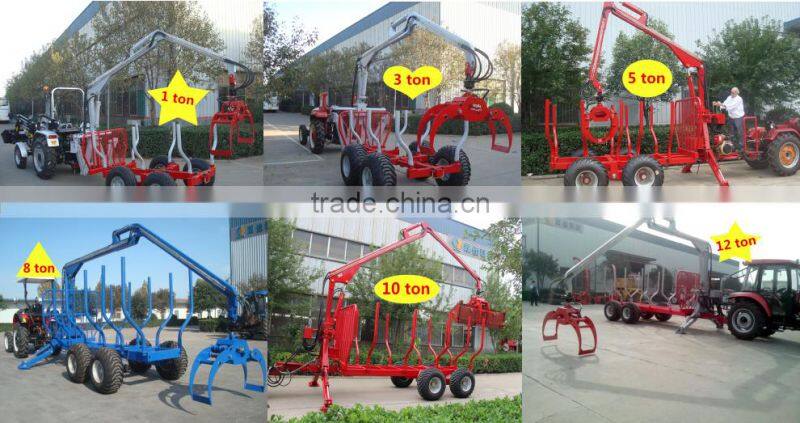

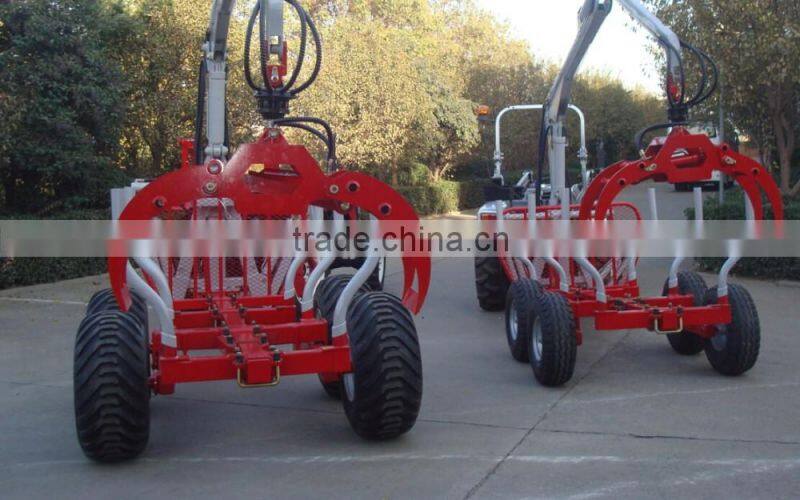

All models:

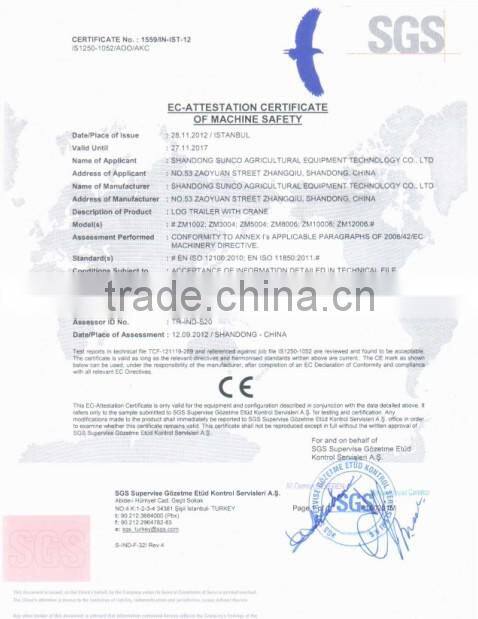

CE certificate:
Welcome to visit our company and factory.
Please contact with me for more details
