Fiber Separating Recycled Waste Paper Pulp Machine With Low Price
- Shanghai Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Inflow Type Pressure Screen for Pulp and Paper Machine
-
Inflow Pressure Screen Machine Making Wood Pulp
-
Wood Pulp Treatment Machinery Pressure Screen for Paper Mill
-
China A Class Manufacturing Craft Pressure Screen for Pulp and Paper Machine
-
High Quality Small Waste Paper Pulp Recycling Machinery/ Pulp Machine Processing
-
Hot Selling Egg Tray Production Making Machine Pressure Screen
Product Details
| Condition | New | Type | Other, paper pulp making machines | |
| Computerized | Yes | Place of Origin | Henan, China | |
| Brand Name | Leizhan | Model Number | ZDFD | |
| Voltage | 380v | Power(W) | up to each model | |
| Dimension(L*W*H) | up to each model | Weight | up to each model | |
| Certification | ISO, BV | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
paper recycling plant machinery fiber separator Wooden case or as your request.
Product Description
Fiber separating recycled waste paper pulp machine with low price
Application
Fiber separating recycled waste paper pulp machine with low price is Used for separating the light and heavy impurities in waste paper recycling process,also making the secondary breaking of the pulp from the hydrapulper,The screen palte hole of the fiber separator can be increased, which improves the production capacity.
Brief Introduction of fiber separator :
ZDFD Series single effect fiber separator machine is a combination of one sealed horizontal hydrapulper and a light & heavy impurity remover. It adopts drum and turbo structure so has higher efficiency.With compact structure,high efficiency,it has functions such as pulp beating,impurity removing ,coarse screening etc,thus simplifies the process of dealing with wasted paper greatly, and reduces the energy consumption.
pulp fiber separator Main specification
| Type | ZDFD2 | ZDFD3 | ZDFD4 | ZDFD5 | ZDFD6 | ZDFD7 |
| Production Capacity (t/d) | 50-70 | 80-120 | 180-250 | 280-360 | 300-400 | 400-500 |
| Concentration of Input Pulp(%) | 2-4 | |||||
| Pressure of Input Pulp (Mpa) | 0.15-0.20 | |||||
| Pressure difference (Mpa) | 0.03-0.05 | |||||
| Power of motor (Kw) | 45 | 55 | 75-90 | 160 | 200 | 280 |
Competitive advantages of ourmachine
1. Over 30 years production experience,we are specializing in making all kinds of paper machines and pulp equipments.
2. 20000 square meters workshop with more than 200 staffs including 50 engineers will be your best support and specialize in making all kinds of paper recycling machines.
3. Full technical support:we will provide the foundation drawings of the fiber separator and installation support.
4. ISO9001:2000 and BV certification.
5. Strict quality control of every procedure,full guarantee of the quality of every single packaging.

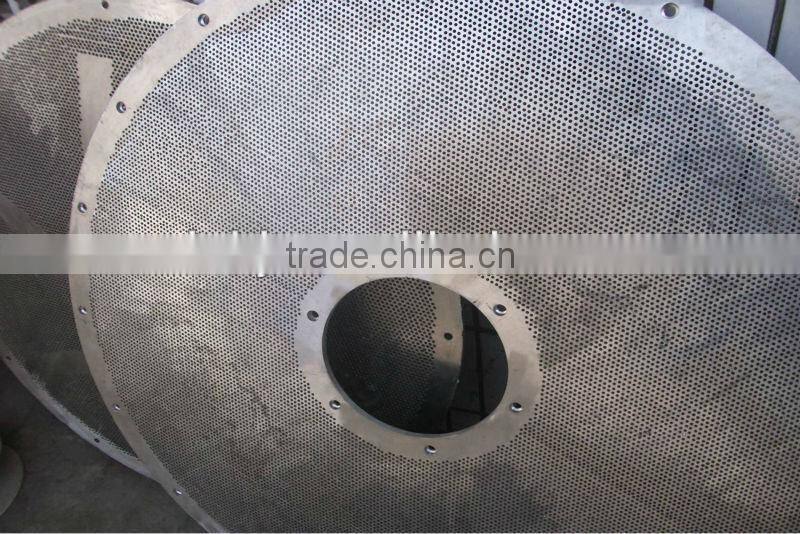

Screening plate in fiber separator fiber separator
WORKING PRINCIPLE
Paper Pulp get into the cylindershaped cabinet with a tangent track and revolve in high speed with the impulse of pressure difference and revolving cutter. Then in the effect of hydraulic shear force , friction of fibers and the beating of blades, the pulp is defibered. The pressure difference between sieve plates and drive impulse of cutters make The defibered pulp go through the screen holes on sieve plates and go out from accept outlet. The pulp which can not go though sieve plates revolve
rapidly in the cabinet and generate strong centrifugal force, which together with the difference of
proportion make the heavy impurities , fiber and light impurities radially stratified. Heavy impurity , fiber and light impurities at the same time move to the section far away from sieve plates with
the push of cutter blades. Heavy impurities move along the inside wall of cabinet to tangent outlet
and go into heavy impurity cleaner. After the cleaning of heavy impurity, pulp will go out from
cleaner regularly and get into fiber separator again from pulp inlet; Light impurities have small
proportion ,they are concentrated in the central part and go out continuously from central outlet.
when pulp move to end cover, it will flow back to cutter and go through sieve plates again.

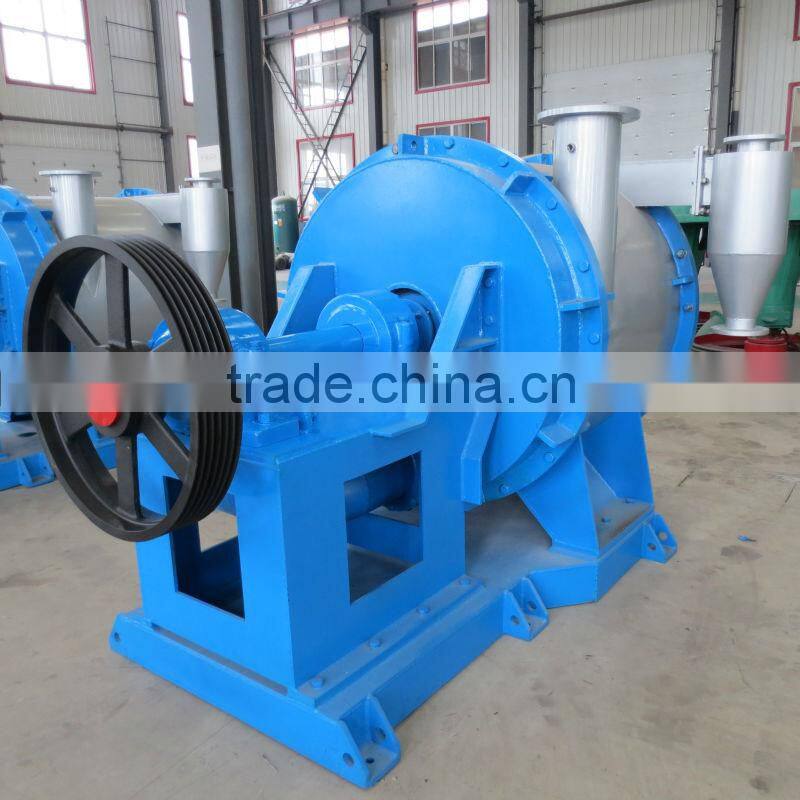

Main body of fiber separator

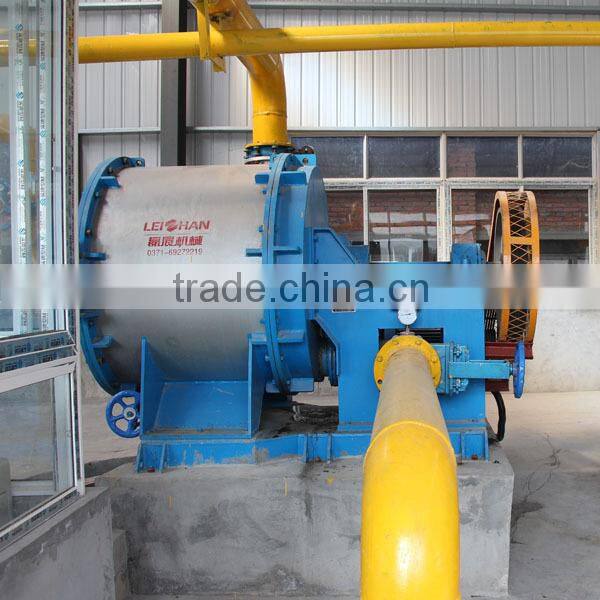

pulp fiber separator working in plant / paper pulp making machines
1. Export packing.(Wooden case, carbon cast and pallet).
2. Container (as customer requirements)
3. It is suitable for long distance ocean transportation.

1.Pre-sales Service
- Offering comprehensive technical and business consultation services;
- Proposing the most suitable scheme and equipment for our clients;
- Designing and fabricating targeted products according to the special requirements of clients;
- Training periodically high qualified service technician.
2.After-sales Service
- Highly inspecting equipments in every working procedure, quality comes first;
- Fast & Safe Delivery;
- Assisting our clients for foundation construction of equipments;
- Dispatching engineers to install and debug equipments;
- Training the first-line operators on site;
- Regularly visit clients to solve production problems;
- Providing life-long maintenance service;
- Providing technical exchanging;
Zhengzhou Leizhan Technology Paper Machinery Co.,LTD is a professional manufacturer with more than 30 years manufacturing experience in making complete set of screening, impurity removal, pulping and refining equipment. Our company is located in Zhengzhou which is the hometown of machinery in Henan Province. We have more than 200 staffs including 50 engineering technicians which can be your best technical support. With high quality products and perfect pre-sale and after-sale service, we have won lots customers from all over the world.
