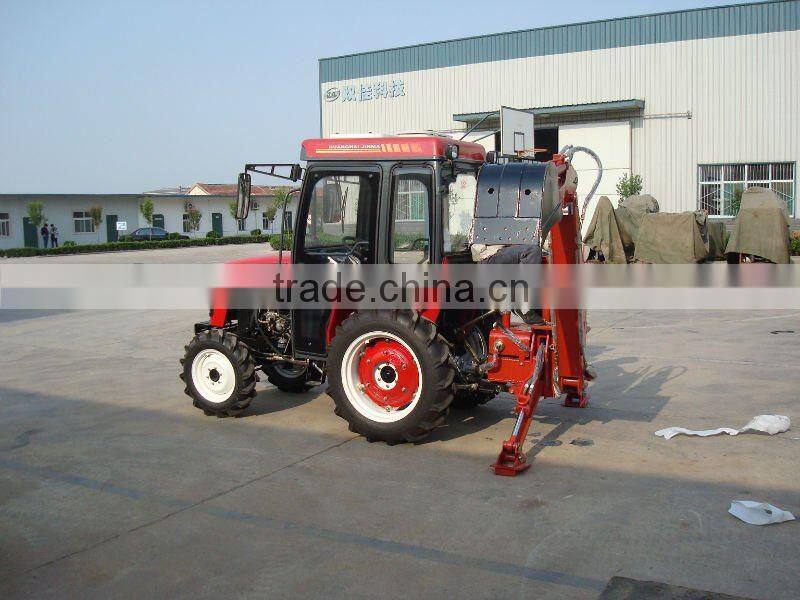

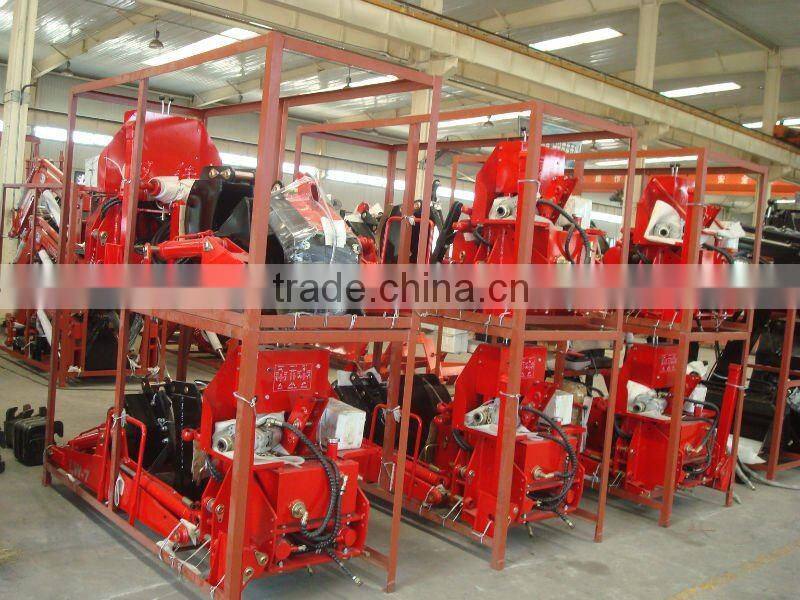

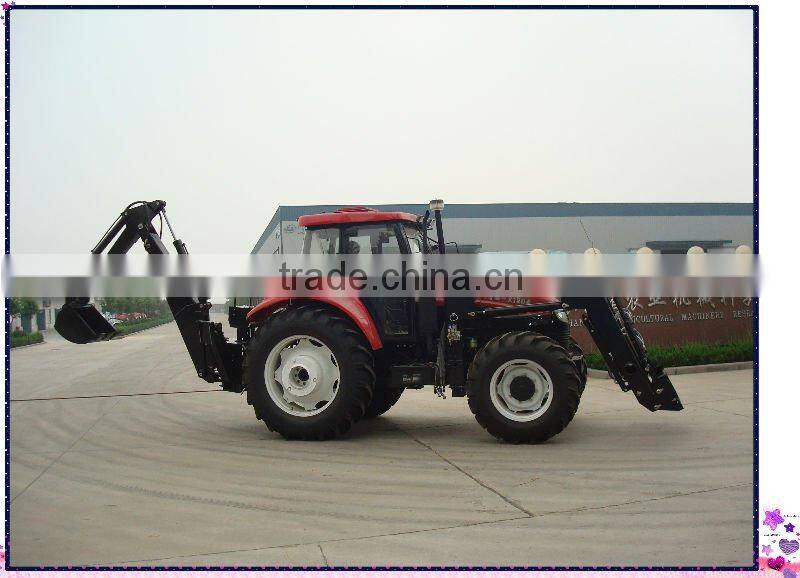

Tractor Backhoe 3-point Hitch

Specifications

CE 3-Point hitch Tractor Backhoe

1. Ditching in farms

    Grazing lands

    Digging pool

2. PTO and Manual Thumb available

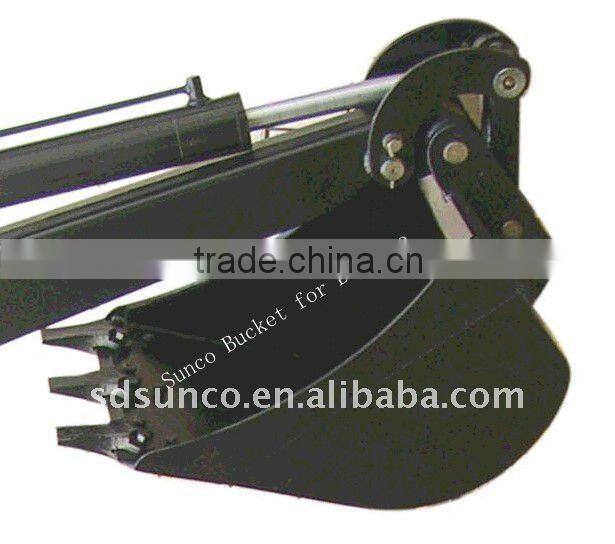

3. Different sizes Buckets: width from 200mm to 1000mm

4. Compact structure with high quality materials

5. Flexibility and convenient operation;

6. Quick mounting and dismounting

LW-6(HW-03)

Matching Tractor: 20 to 30hp

Common Bucket Width: 340mm

Bucket capacity: 0.03m3

Maximum Digging Depth: 1700mm

Unloading Height: 1700mm(Max.)

Maximum Digging Height: 2700mm

Digging Depth Flat Bottom: 1600mm(Max.)

Maximum Swing Angle: 180degree

Bucket Rotation Angle: 160degree

LW-7(HW-05)

Matching Tractor: 30 to 50hp

Common Bucket Width: 380mm

Bucket capacity: 0.048m3

Maximum Digging Depth: 2100mm

Unloading Height: 2300mm(Max.)

Maximum Digging Height: 3300mm

Digging Depth Flat Bottom: 2000mm(Max.)

Maximum Swing Angle: 180degree

Bucket Rotation Angle: 160degree

LW-8(HW-06)

Matching Tractor: 50 to 80hp

Common Bucket Width: 420mm

Bucket capacity: 0.06m3

Maximum Digging Depth: 2600mm

Unloading Height: 2500mm(Max.)

Maximum Digging Height: 3400mm

Digging Depth Flat Bottom: 2500mm(Max.)

Maximum Swing Angle: 180degree

Bucket Rotation Angle: 160degree

LW-12(HW-12)

Matching Tractor: 120 to 140hp

Common Bucket Width: 574mm

Bucket capacity: 0.2m3

Maximum Digging Depth: 3600mm

Unloading Height: 3200mm(Max.)

Maximum Digging Height: 4500mm

Digging Depth Flat Bottom: 3500mm(Max.)

Maximum Swing Angle: 180degree

Bucket Rotation Angle: 160degree
