Model JN-AP280 Automatic Positioning Two Colour Pen Printing Machine
- Shenzhen
- T/T Credit Card
You May Like
-
Model JN-SPE42 Two Station 4 Color Textile Printing Machine
-
IR5060 IR Flash Dryer for T-shirt Printing
-
JN-MS8-5060E Manual Operating 8 Colour Double Pivoting Garment Screen Printing Machine
-
JN-MS6-5060E Manual Operating 6 Colour Double Pivoting T-shirt Printing Machine
-
Multi-Functional Roller Embossing Machine
-
(JN-MS6-4555) 6-Colour Manual-Operating Rotating Textile Screen Printing Machine
Product Details
| Condition | New | Place of Origin | Guangdong, China | |
| Brand Name | JN | Model Number | JN-AP280 | |
| Usage | Other, Pen Printing Mahine | Automatic Grade | Automatic | |
| Voltage | 220V | Gross Power | 6.3KW | |
| Dimensions(L*W*H) | 3200 x 1120 x 1520mm | Weight | 630KG | |
| Certification | CE Approved | Warranty | One year, provide lifelong technical service | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1. Automatic 2 colour printing.2. Automatic loading and unloading.
3. Automatic IR curing.

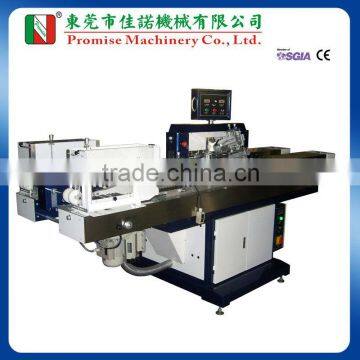

Model JN-AP280 Automatic Positioning Two Colour Pen Screen Printing Machine
Applications:
The screen printer was designed for small diameter objects such as pearl pen, pencil, mark pen, board pen, signature pen, eyebrow pen, labium cream, Injector, chopsticks and high speed screen printing.
Advantages:
1. Fully electric control, no need compressed air, automatic printing.
2. Automatic loading and unloading.
3. Double rail printing.
4. Can print two different objects/images at one time, and one colour or two colour printing.
5. Machine runs steady and smoothly. Printing stroke and printing speed are adjustable.
6. Can stop the any time for screen cleaning, ink adding.
7. Taiwan frequency conversion control make machine runs at constant torque, ensure the printing effect be consistent.
8. IR drying system online (UV drying system optional), achieve printing and drying meantime.
9. With vacuum function seated (optional) for precision orientation.
10. Installed surface cleaning device(optional).
11. Double blade design for high quality coating ink.
12. Eletron controlling ensure lower noise.
Specifications:
1 | Objects diameter | One Colour: φ3~φ20 mm Two Colour: φ12~φ20 mm |
2 | Objects length | 60~160 mm |
3 | Printing stroke | 0~80 mm |
4 | Max printing speed | One Colour: 7200 pcs/hr Two Colour: 3600 pcs/hr |
5 | Max Frame dimension | 300*200mm |
6 | Motor Wattage | 4.3KW |
7 | IR wattage | 1KW(up)+1KW(Down) |
8 | IR Length | 800mm |
9 | Power Supply | 220V, 50Hz |
10 | Dimension | 3200 x 1120 x 1520mm |
11 | Net weight | about 630kg |
