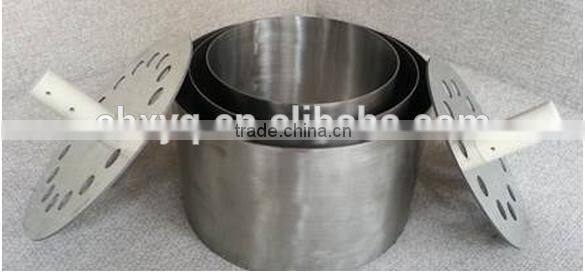

IEC60335-2-9 Test Vessel Pan for Electrical Induction Cooker
- Shenzhen
- Credit Card
You May Like
-
IEC60335-2-9 Standard Test Pans
-
IEC60335-2-9 Induction Cooker Testing Vessel
-
IEC60335-2-9 Good Price Electrical Appliance Testing Vessel
-
IEC60335-2-9 Test Pans Hydrostatic Testing Pressure Vessel
-
IEC60335 & GB21456 Test Pans/vessel for Induction Hob Element
-
Ht-225t Digital Schmidt Concrete Test Hammer
Product Details
| Place of Origin | Guangdong, China | Brand Name | CX, Chuangxin | |
| Model Number | CX-GZ | Power | Electronic | |
| Usage | Other, Test Vessel, Testing Machine, |
standard packing, silver box
Product Description
IEC60335-2-9 &GB21456 Promotion Standard Induction Cooker Testing Vessels

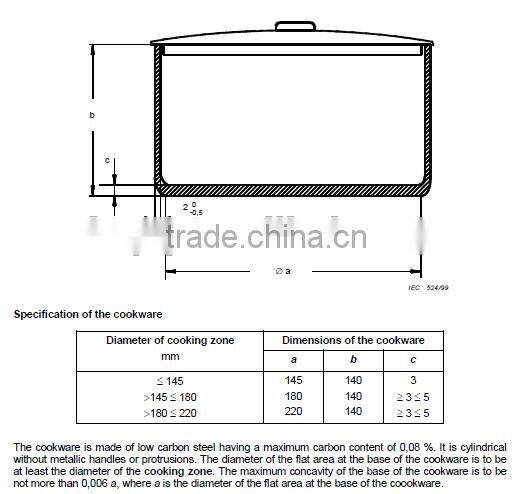

Vessel for induction hob element ( IEC60335-2-9 clause 3 figure 101)
Diameter of cooking zone(mm) | Approximate Dimension | ||
A(mm) | B(mm) | C(mm)
| |
≤110 | 110 | 140 | 8 |
>110≤145 | 145 | 140 | 8 |
>145≤180 | 180 | 140 | 9 |
>180≤220 | 220 | 120 | 10 |
>220≤300 | 300 | 100 | 10 |
Note: The maximum concavity of the base of the vessel is to be less than 0.05mm,the base of the vessel is not to be convex. | |||
IEC60335-2-9 Figure 101 Figure 102 Test Pans, Test Vessel
Diameter of cooking zone(mm) | Approximate Dimension | |||
A(mm) | B(mm) | C(mm) | ||
≤110 | 110 | 140 | 8 | |
>110≤145 | 145 | 140 | 8 | |
>145≤180 | 180 | 140 | 9 | |
>180≤220 | 220 | 120 | 10 | |
>220≤300 | 300 | 100 | 10 | |
Note: The maximum concavity of the base of the vessel is to be less than 0.05mm,the base of the vessel is not to be convex. | ||||

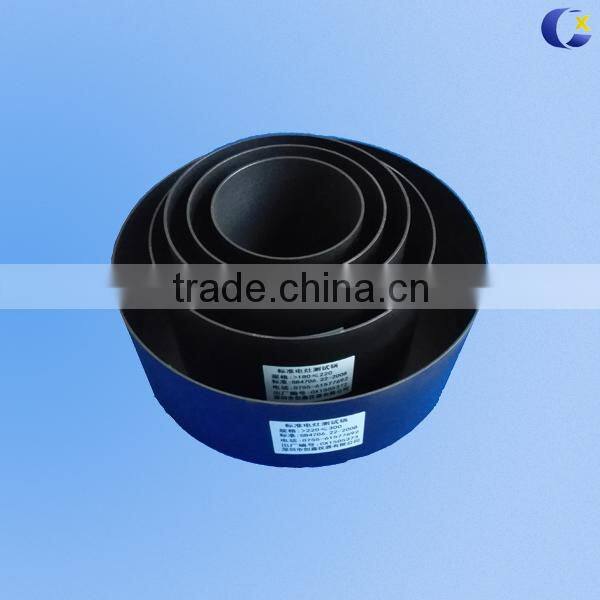

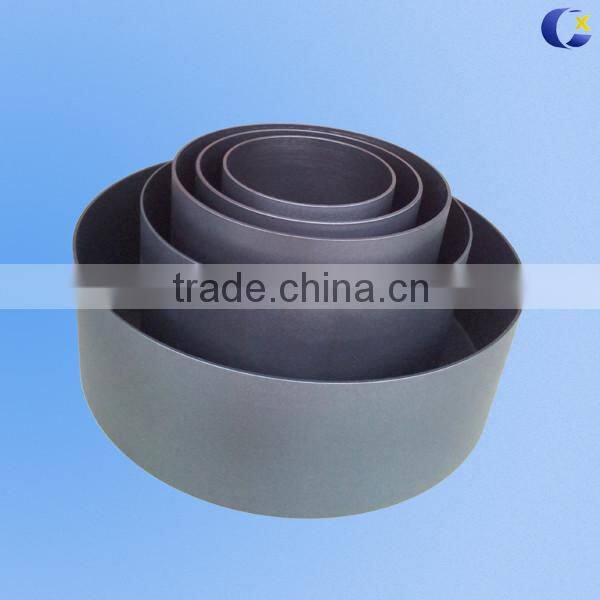

Specification:
1.one set with 5 pcs, the diameter is :110mm,145mm,180mm,220mm,300mm
2.base and wall thickness:2mm±0.5mm
3.The vessel is made of low carbon steel having maxmum carbon content of 0.08%.
4.It's cylindrical without metallic handles or protrusions, the diameter of the flat area of the base of th evessel is to be at least the diameter of the cooking zone. The maximum concavity of the base of the bessel is0.006d.the base of the vessel is convex.

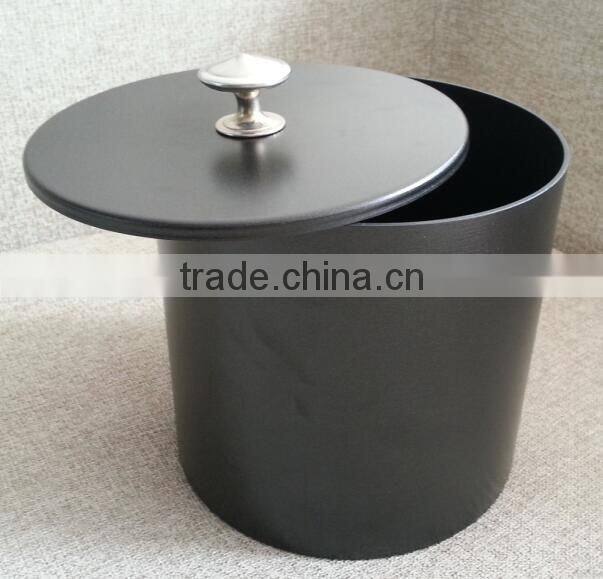

IEC60350-2 Test Pans, Test Vessels

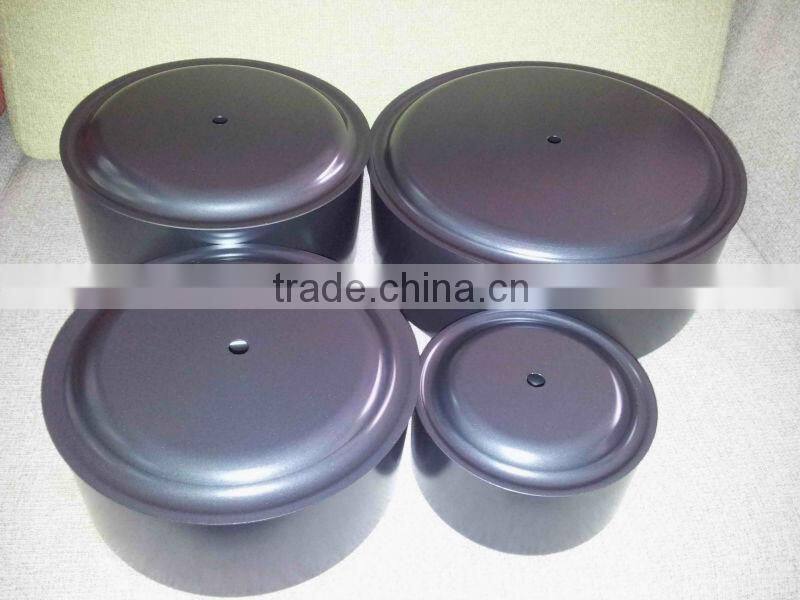

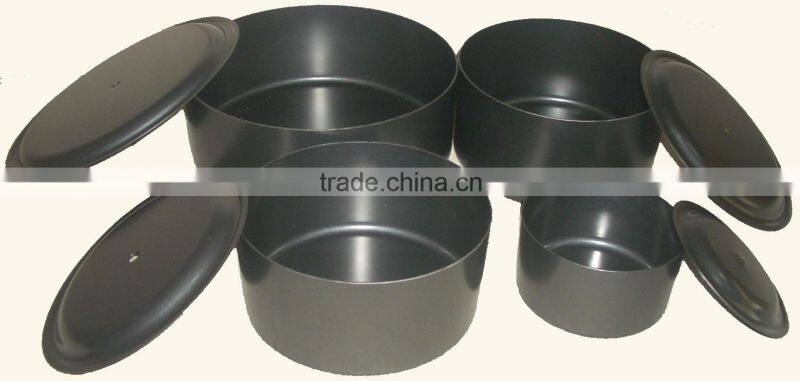

GB-21456-2008 Test pans
Material: Q235 GB 700-88 carbon steel
vessel base: 1.5mm vessel wall: 1.5mm vessel lid: 1.0mm
No | Outside diameter/mm | Inside diameter/mm | Height/mm | Thickness/mm | Volume/L |
B1 | 140 | 120 | 75 | 1.5 | 1 |
B2 | 200 | 180 | 95 | 1.5 | 3 |
B3 | 220 | 200 | 110 | 1.5 | 4 |
B4 | 280 | 260 | 105 | 2.0 | 6 |

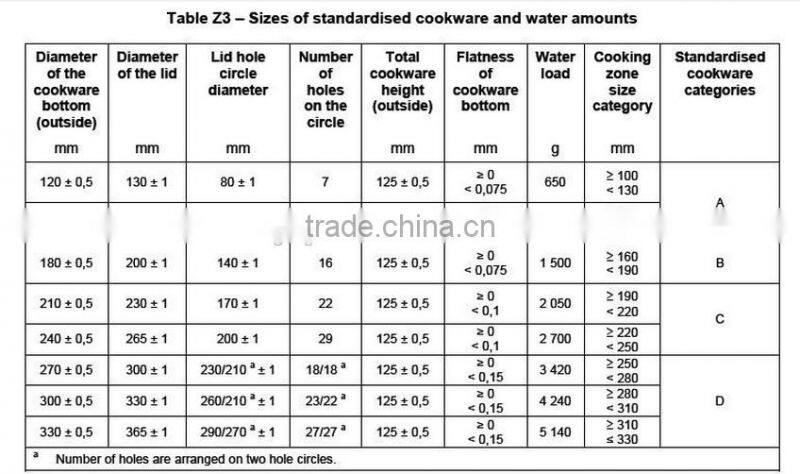

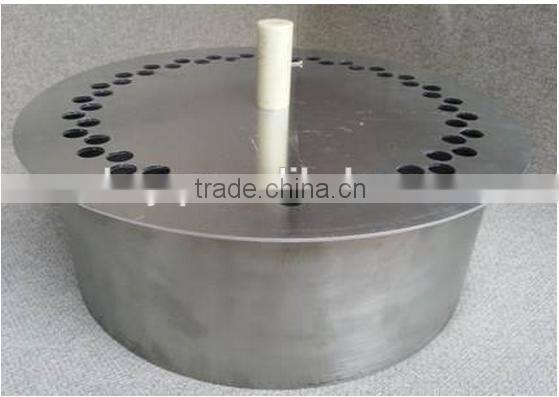

IEC60350 Standards EN60350-2:2013
Material: Stainless steel
vessel base: 1.5mm
vessel wall: 2.0mm
Our product range: IEC & UL Test Probe,Mechanical Impact Tester, IEC Test Instruments,
Lamp Cap & Holder Gauge & Test Instrument,Temperature Rise Test Instrument,Electric Safety Tester,Environmental Test Instrument,Plug & Socket Gauge,EMC & LED Test Instrument,ETC
Welcome to your kindly enquiries!
