Finned heater
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Electric Heater Type | Other, Finned heater | Heating Element | Heating Wire | |
| Installation | Desktop, Wall Mounted | Certification | CE, Other, CE, RoHS | |
| Function | Other, Heating source | Use | Living Room | |
| Place of Origin | Jiangsu, China | Brand Name | DRAGONPOWER | |
| Model Number | LK-CP |
Product Description
Specifications

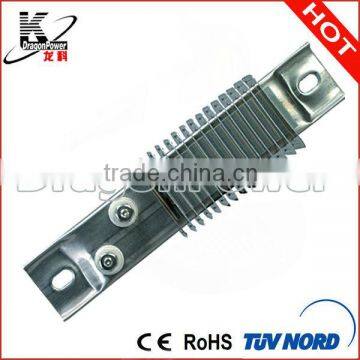

Finned heater:1.Rugged, Durable Construction
2.Stainless Steel Sheath
3.Nickel-Plated Steel Fins (Stainless Steel Optional)
DragonPower finned heaters are extremely efficient and dependable as a heat source for hundreds of industrial and commercial applications. They are used for both forced (mounted in a duct) and natural convection air heating (mounted at the bottom of cabinet type ovens). The finned heater’s basic design consists of a helically wound resistance coil placed in a specially designed ceramic insulator. The resistance coil is mechanically connected to the screw terminal for positive connection. Stainless steel rectangular tubing is used to house the heater assembly. All remaining voids are filled with high purity magnesium oxide to increasethermal conductivity and dielectric strength. Nickel-plated steel fins (stainless steel) are mounted to the rectangular tubing. The fins have been specially designed to provide maximum surface contact for good heat dissipation into the finned cross sections, thus resulting in rapid heat transfer to the air.
Specification and Tolerances
If tighter tolerances are required consult us.
Performance Ratings
Maximum Sheath Temperature: 650°C (1200°F)
Electrical Specifications
Maximum Voltage: 480 Vac (when applicable)
Maximum Amperage: 25 A
Resistance Tolerance: 10%, -5%
Wattage Tolerance: 5%, -10%
Material Specifications and Physical Sizes
Sheath: 304 stainless steel
Fins: Nickel plated steel (stainless steel optional)
Screw Terminals: Stainless steel 10-32 UNF threads
Width Including Fins: 51 mm (2")
Height Including Fins: 35 mm (13/8")
Length Tolerance: Up to 0.61 m (24") ±1/16", over 0.61 m (24") ±1/8"
Mounting Slot Size: Standard 8 x 13 mm (5/16 × 1/2")
Slot Size For Secondary Insulating Bushing: 13 x 16 mm (1/2 × 5/8") for 300V and above
| Reference table-Finned strip heater | ||||
| Length | Watts | Watt Density | ||
| mm | inch | Watt/cm2 | Watt/in2 | |
| 215.9 | 81⁄2 | 250 | 3 | 18 |
| 266.7 | 101⁄2 | 350 | 3 | 17 |
| 266.7 | 101⁄2 | 500 | 4 | 24 |
| 266.7 | 101⁄2 | 600 | 4 | 29 |
| 266.7 | 101⁄2 | 725 | 5 | 35 |
| 266.7 | 101⁄2 | 850 | 6 | 40 |
| 304.8 | 12 | 500 | 3 | 19 |
| 304.8 | 12 | 900 | 5 | 34 |
| 355.6 | 14 | 750 | 3 | 23 |
| 355.6 | 14 | 1100 | 5 | 33 |
| 387.4 | 151⁄4 | 1000 | 4 | 27 |
| 387.4 | 151⁄4 | 1250 | 5 | 33 |
| 454 | 177⁄8 | 1000 | 3 | 21 |
| 454 | 177⁄8 | 1300 | 4 | 28 |
| 454 | 177⁄8 | 1550 | 5 | 33 |
| 495.3 | 191⁄2 | 1250 | 4 | 24 |
| 495.3 | 191⁄2 | 1700 | 5 | 32 |
| 533.4 | 21 | 1900 | 5 | 33 |
| 603.3 | 233⁄4 | 1450 | 3 | 22 |
| 603.3 | 233⁄4 | 2200 | 5 | 33 |
| 679.5 | 263⁄4 | 2500 | 5 | 32 |
| 774.7 | 301⁄2 | 1800 | 3 | 20 |
| 774.7 | 301⁄2 | 2800 | 5 | 31 |
| 850.9 | 331⁄2 | 3150 | 5 | 31 |
| 911.2 | 357⁄8 | 2000 | 3 | 18 |
| 911.2 | 357⁄8 | 3450 | 5 | 31 |
| 1079.5 | 421⁄2 | 4150 | 5 | 31 |
| DragonPower finned heaters are manufactured in a full line of standard sizes, electrical ratings and terminations, or can be made to your specifications | ||||
Plywood case or paper carton for finned heater
1. Customized service 2. One to two years warranty period 3. Professional purchasing guid 4. Technial support
DragonPower specializes in producing industrial electric heaters with a strength in R&D. Our products include air cooling & heating system, ceramic heaters, cast aluminum/copper heaters, mica heaters, cartridge heaters, infrared heaters, tubular heaters, immersion heaters, thermocouples, high temperature insulated wires & cables, etc.
