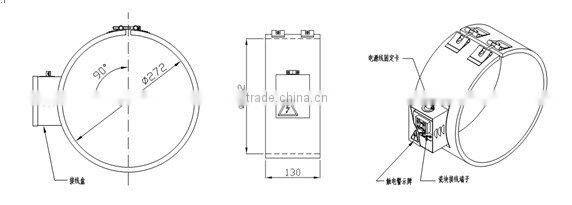

Ceramic heater band
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | DragonPower | |
| Model Number | LK-TC |
Product Description
Specifications
1. Cr20Ni80 resistance wire2. HIgh watt density heater
3. ISO9001, CE and RoHS certified
4. High quality ceramic insulation
Detailed Product Description
1. Cr20Ni80 wire
2. HIgh watt density
3. ISO9001, CE and RoHS
4. Various sizes of ceramic heaters to your needs, min20*20mm
Description
This heater is mainly used for extrusion, casting and down-stroke machines. The operating temperature can reach up to 600°C. The maximum surface loading rate is 8 W/sqm.Its advantages include fast speed of heating, high rate of heat utilization, excellent energy saving (energy consumption is reduced by 30%), high resistance of high temperature creep, long lifetime, resistance of high temperature and high insulation rate. It is one of the most suiTable: electric heaters for plastic extrusion and injection machines, plastic hollow and blowing machines and chemical fibre moulding machines.
Table
Model | Dimension(mm) | Voltage(V) | Power(W) | Key Technical Indexes |
LK-TC-Φ125X51 | Φ125X51 | 230V | 500W | 1.Use condition: environment temperature -20~+60°C, Relative temperature <80% 2.Leakage current: <0.5MA 3.Insulation resistance:≥5Mo 4.Ground resistance: <0.1o 5.Voltage resistance: no electric breakdown for 1 minute under 1500V 6.Temperature endurance: 500-800°C 7.Power deviation:+5%-10%
|
LK-TC-Φ105X66 | Φ105X66 | 230V | 800W | |
LK-TC-Φ185X51 | Φ185X51 | 230V | 1100W | |
LK-TC-Φ190X85 | Φ190X85 | 230V | 1500W | |
LK-TC-Φ220X75 | Φ220X75 | 230V | 1700W | |
LK-TC-Φ180X90 | Φ180X90 | 230V | 1700W | |
Note: Other models are available according to your specifications. Please refer to the Order Guide | ||||
Order Guide
Please specify the following when ordering:
- The diameter (mm) of heaters (inner diameter for external heating or external diameter for internal heating)
- Width of heaters
- Type, length and position of leads
- The position and size of the hole for connecting thermocouple OR of the incision.
- Voltage and power density
- One piece OR two piece
- Special gap between two pieces
- Content of the laser stamping on the sheath of heaters if needed
- Order quantity
- Delivery date
* It’s better to provide us with the drawings/pictures
