Electric cast aluminum heaters
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | DragonPower | |
| Model Number | LK-ZL |
Product Description
Specifications
Various electric heaters available:1. Cr20Ni80 wire
2. HIgh watt density
3. ISO9001, CE, strict QC
4. Wide applications
Description

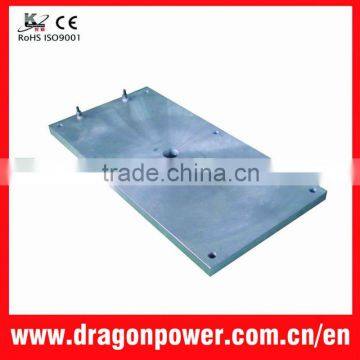

Cast in aluminum heater is mainly used for extrusion and casting moulding machines. It has a wide application in various machinery industries. The operation temperature can reach up to 300°C (Aluminium). In order to concentrate the heat to one direction on the injection face, the other sides of the product are covered by heat retention and heat insulation materials. So it has advantages such as advanced technology, high heat retention, long lifetime, anti-pollution, etc. It is widely used in plastic extrusion, chemical fibre, blowing moulding machines.
Table
Model | Dimension(mm) | Voltage(V) | Power(W) | Key Technical Indexes |
LK-SZL-Φ180Χ480 | Φ180Χ480 | 380 | 3000 | 1.Use condition: environment temperature -20~+60°C, Relative temperature <80% 2.Leakage current <0.5MA 3.Insulation resistance ≥8MΩ 4.Ground resistance <0.1MΩ 5.Voltage resistance: no electric breakdown for 1 minute under 1500V 6.Temperature endurance: 400-830°C 7.Power deviation +8%-8%
|
LK-SZL-Φ220Χ514 | Φ220Χ514 | 380 | 4000 | |
LK-SZL-Φ200Χ80 | Φ200Χ80 | 220 | 1000 | |
LK-SZL-Φ265Χ290 | Φ265Χ290 | 380 | 8000 | |
LK-SZL- L215Χ170 | L215Χ170 | 250 | 1000 | |
LK-SZL- L240Χ100 | L240Χ100 | 220 | 900 | |
LK-SZL- L150Χ150 | L150Χ150 | 230 | 800 | |
LK-SZL- L300Χ200 | L300Χ200 | 240 | 2000 | |
LK-SZL-L198XW140XH214 | L198XW140XH214 | 250 | 5500 | |
LK-SZL-L150XW110XH180 | L150XW110XH180 | 250 | 3000 | |
LK-SZL-L260XW80XH80 | L260XW80XH80 | 220 | 2000 | |
LK-SZL-L280XW196XH250 | L280XW196XH250 | 220 | 8000 | |
Note: Other models are available according to your specifications. Please refer to the Order Guide | ||||
Order Guide
Please specify the following when ordering.
- The inner diameter (mm) and length (mm) of heaters
- Thickness of heaters
- Terminal length (max & min) and the distance of terminal length
- The diameter, length of cooling tubes and the distance between them.
- Voltage and power density
- Gap of two pieces if applicable
- Wiring type and position
- Whether need air blowers
- Content of the stamping if needed
- Order quantity
- Delivery date
* It’s better to provide us with the drawings/pictures
Others: position of terminal box, the position and size of the hole for connecting thermocouple OR of the incision, whether need to cast in the terminal
