High Brightness Led Strip, 26-28 Lm Led Strip 2835 Chip, 120 Pcs/m Flexible Led Light
- shenzhen
- Credit Card
You May Like
-
55-60Lm/LED 24V 5630 LED Strip Light 60leds/m New Version
-
China High Bright Yellow/Purple Color 3528 Led Strip With 2 Double Rows DC24v 240LEDS/M 19.2W Strip
-
Epistar 5050 Led Strips , Flexible Led Strips 5050, Led Strip Light 5050 With CE ROHS
-
High Lumen Flexible 2835 SMD Led Purple Strip,Strip Light With CE,2835 Led Strip Light 12V
-
RGB Led Strip 5050, Black PCB Led Flexible Light 60 Leds/m, 10mm Width Led RGB Light
-
High CTI >90 SMD2835 Led Rope Lights, 48V DC Led Flexible Light Strip, 10 Leds a Unit 2835 Led Strip
Product Details
| LED Light Source | SMD2835 | Type | Flex LED Strips | |
| Input Voltage(V) | DC12V/24V | Lamp Power | 22W | |
| Lamp Luminous Flux(lm) | 1800 | Color Temperature(CCT) | 2700-7500K | |
| Working Temperature(℃) | -20, 60 | Working Lifetime(Hour) | 50000 | |
| Lamp Body Material | Copper | Certification | CE | |
| Emitting Color | Other, warm white | Place of Origin | Guangdong, China | |
| Brand Name | BRIGHT | Model Number | BG-241-2835-600 |
Product Description
SMD2835 led light led flexible strip 120led/m
Features:
1. Width: 8mm, 5m/reel;
2. Viewing angle : 120 degrees;
3. Cuttable at 3 led;
4. Color available:single color;
5. Assembled with 120pcs SMD2835 / 5 meter packing;
6. Long life: 50,000 hours;
7. Board material: FPC;
8. Input: DC 12/24V , 14.4watts per meter;
Specifications of 2835 led strip light:
Light Color | White | Warm white | Green | Bule | Yellow | Red |
LED Quantity | SMD2835 | |||||
Input Voltage | 24V DC | |||||
Operating Current | 1.75-24 A | |||||
Luminous Flux | 900 | 760 | 1050 | 430 | 400 | 400 |
Input Power | 21-24 W/5m | |||||
Water Proof | IP67 | |||||
Size | 1000mmX10mm | |||||
View Angle | 120° | |||||
Illumination range | 0.5-1 m | |||||
Storage Temperature | -40℃----+80℃ | |||||
Operating emperature | -25℃----+60℃ | |||||

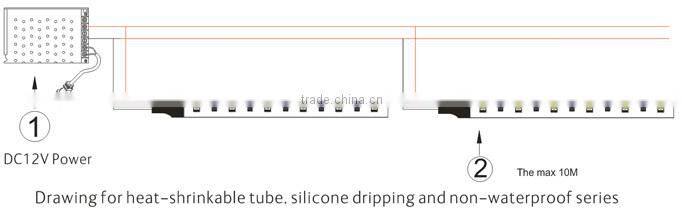

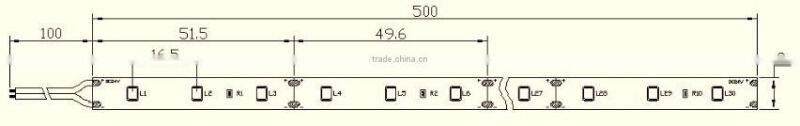

Circuit diogram:

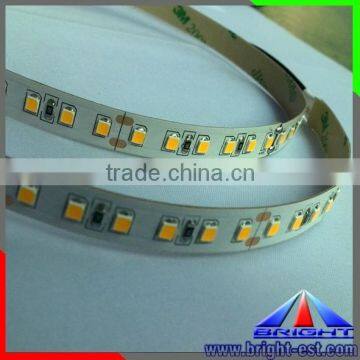

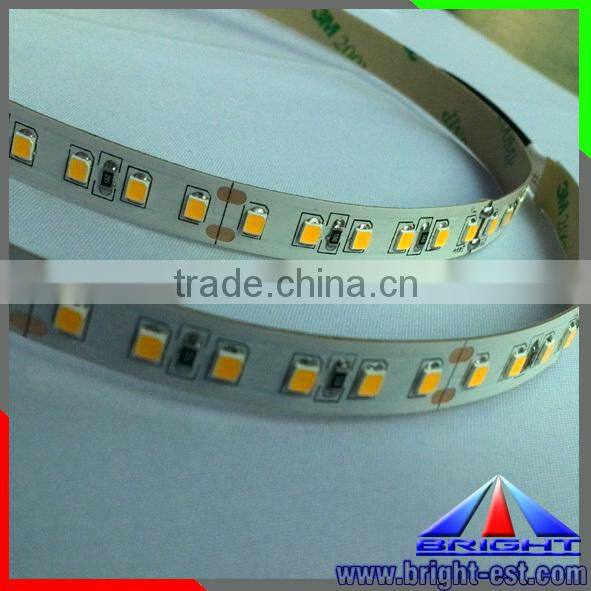

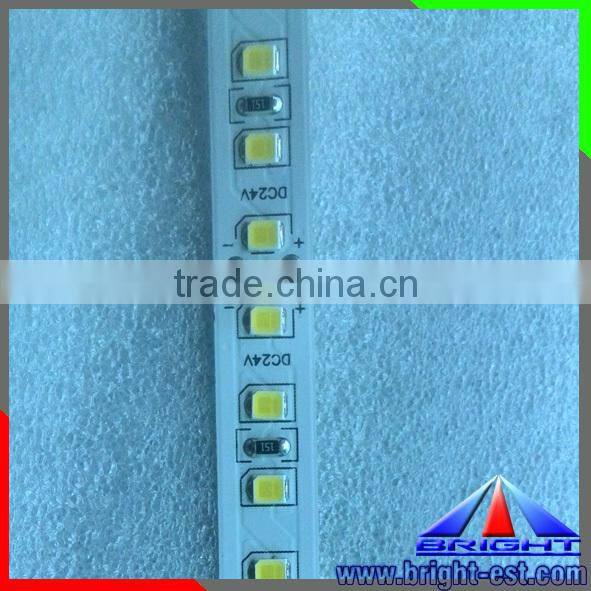

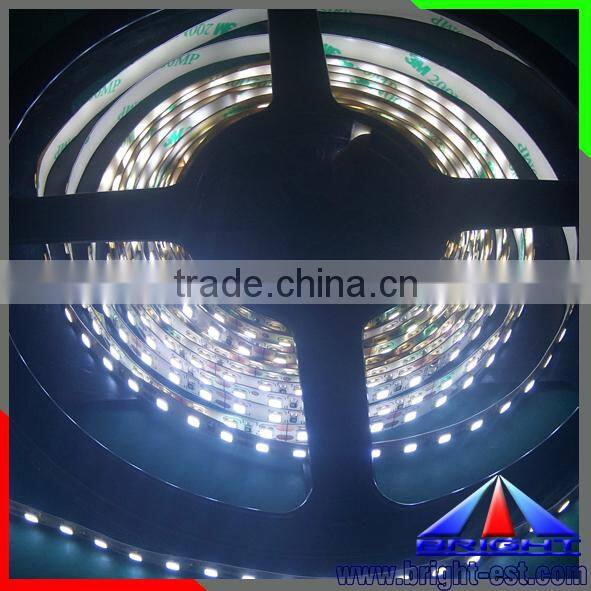

Pictures of smd2835 led strip light:

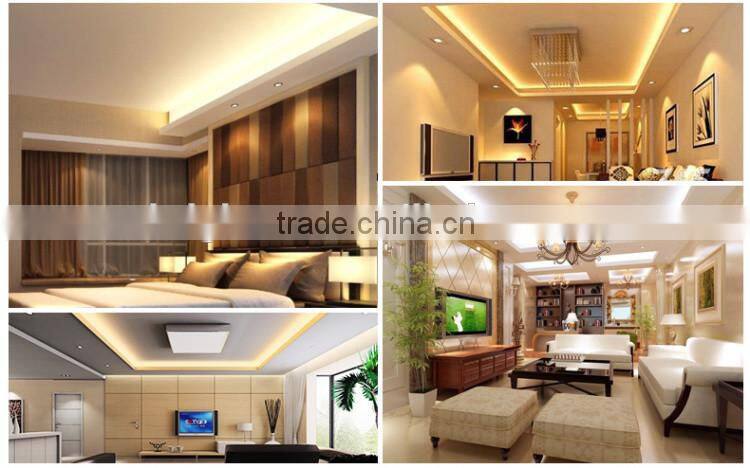

Applications:
1) Architectural decorative lighting
2) Archway, canopy & bridge edge lighting
3) Amusement park, theater & aircraft cabin mood lighting
4) Emergency hallway lighting
5) Auditorium walkway lighting
6) Stairway accent lighting
7) Concealed lighting
8) Backlighting for signage letters
9) Channel letter lighting
10) Cove lighting
1.Your inquiry related to our products or prices will be replied within 24 hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.OEM & ODM welcomed, our professional R&D dept. will realize your customized lighting.
4.Distributorship is offered for your unique design and some of our current models.
5.Protection of your sales area, ideas of design and all your private information
Why choose us:
1.Advanced machinery, well trained workers.
2.5 years experience in LED lighting industry.
3.Unique designed, good quality, competitive price.
4.Full range of indoor and outdoor LED lighting solution.
5.Zero improper after-sales service if any quality issue happened
If there any questions, pls don't hesitate to contact me!!!
Notes:
1. Supply voltage of this product is 12v or 24v; never connect to other high voltage.
2. Never connect two wires directly in case of short circuit.
3.Lead wire should be connected correctly according to colors that connecting diagram offers
