Energy saving air cooling band heater for blow filming machine

Energy saving air cooling band heater for blow filming machine

Air cooling heater is mainly used for complete extrusion parts. It consists of several heaters connected with temperature reducing systems. Depending on specific application requirements, the number and layout of this item can be combined into one system. As the extrusion cylinder is completely covered, it has a uniform temperature flow. Also due to the enlarged surface of heating radiation, the efficiency is improved.It can remove friction heat from extrusion.

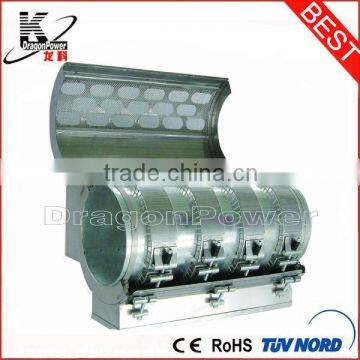

The air cooling ceramic heater with copper cooling fins consists of several band heaters connected with T2 copper fins for heat dispersion. Then the set is covered by an individual mounted cooling jacket with a fan connection box and air outlet device fixed. In addition, the band heater can be removed and replaced. The maximum temperature the heater can stand is 500 °C. Currently, this heater is the most advanced cooling & heating device for extrusion machine and cylinder of injection plastic machine.

This type of heater is recommended for situation when the demand for temperature control is very high.

 Air Cooling Heater Table:

Other related items for reference:

• Hollow shaping machine/Blow-molding machine
• Plastic injection moulding machine
• Extrusion machine/Co-extrusion line
• Raw material processing equipment
• Pelletizing equipment
• Granular machine
• All types of plastics processing machines

Rigorous working and best after-sales services guarantee the first class quality for customers worldwide!

 DragonPower specializes in producing industrial electric heaters with a strength in R&D. Our products include air cooling & heating system, ceramic heaters, cast aluminum/copper heaters, mica heaters, cartridge heaters, infrared heaters, tubular heaters, immersion heaters, thermocouples, high temperature insulated wires & cables, etc. We provide OEM and design services. The other services we are committed to offer include:

1. Flexibility with minimum order requirements

2. On-time delivery

3. Free replacement if any product quality issues within guarantee period

4. Technical support

5. Simple ordering procedure: Email, fax or mail.

Located in Yancheng, Jiangsu, 3 hour drive away from Shanghai, the company covers an area about 27,000 square meters and has over 30 years of experience in this industry.

DragonPower had passed ISO9001 and CE certificate. It applies strict test and control over every single part of the products as well as every processing step, ensuring that our products have longer lifetime, better insulation, more even heating and longer thermal inertia.

Our company has been authorized the import and export rights. Our products are sold to Europe, Australia, the US, South East Asia, Taiwan etc. So far, overseas market contributes about 30% of our annual sales. Now we hope to further develop our customer base abroad and continuously maintain win-win relationship with everyone of you.

Please specify the following when ordering:

1.       The accurate inner diameter (mm) of heaters (specify the tolerance zone if applicable)
2.       Voltage and power density
3.      The position and size of the hole for connecting thermocouple OR of the incision.
4.       Wiring type and position
5.       Whether need air blowers
6.       Content of the laser stamping on the sheath of heaters if needed
7.       Order quantity
8.       Delivery date

* It’s better to provide us with the drawings/pictures
