25 years warranty used china mono solar panels 100watt

FOB Price

USD $0.5 - $0.65 / Piece

20 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1. advanced technology to be reliable, durable
2. maxmum performance to
3. High efficiency
4. High value
5. cost effecti

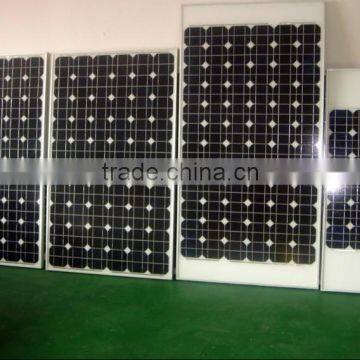

25 years warranty used china mono solar panels 100watt

High efficiency solar cells ensure high performance of solar module and create maximum power output.

Solar Cell:High efficiency solar cells ensure high performance of solar module and create maximum power output.

Low lron Tempered Glass:Anti-reflecting coating and high transmission rate glass increase the power output and

mechanical strength of solar module.

Aluminum Frame:Without screw,corner connection.10holes on the frame can be installed easily.

Supperor Junction Box: Multi function junction box with water proof capabilities.

Long Lifespan:>=25 years.

Tolerance:+/-3%.

Good performance of preventing from atrocious weather such as wind and hails.Resisting moisture and etching

effectively,not effect by

The certificate issued by international authority:CE,TUV,IEC.

Technology Specifications
Model Number		KH50	KH60	KH65	KH70	KH80
Maximum Power as per STC	Pmax(W)	50	60	65	70	80
Power Tolerance	%	±3%
Maximum Power Voltage	Vm(V)	17.2	17.2	17.3	17.5	17.5
Maximum Power Current	Im(A)	2.91	3.49	3.76	4	4.1
Open Circuit Voltage	Voc(V)	21.3	21.3	21.5	21.6	21.7
Short Circuit Current	Isc(A)	3.4	3.86	4.16	4.26	4.46
Maximum System Voltage	VDC	1000
Cell Efficiency	%	17.3	17.5	17.5	17.6	17.8
Module Efficiency	%	14.1	14.2	14.3	14.3	14.3
Cells per Module	Pcs	36
Cell Type		Polycrystalline silicon
Cell Size	mm	156*156
Bypass Diodes	Pcs
Max. Series Fuse Rating	A	10A
Temperature coefficient of Isc	%/ °C	0.05
Temperature coefficient of Voc	%/°C	-0.35
Temperature coefficient of power	%/°C	-0.47
NOCT- Nominal operating cell temperature	°C	47±2
Operating Temperature	°C	-40+85
MECHANICAL CHARACTERISTICS
Dimensions	mm	67654530MM	67667630MM	67667630MM	67667630MM	67680630MM
Weight	kg	5	6	6.5	7	8
Type of Junction Box		TUV certified, IP65
Tempered Glass		3.2 mm, high transmission, low iron
