Jiangsu Kehua Optoelectronics Technology Co., Ltd.: Yangzhou, Jiangsu, China; Main products: solar panel, solar light, Solar street lights, traffic lights, street pole

Home > Products > Mono solar panel > Mono Solar Panel Solar Module 150W 160W PV Poly Crystalline TUV 10 Years Warranty

Mono Solar Panel Solar Module 150W 160W PV Poly Crystalline TUV 10 Years Warranty

FOB Price

US$ 0.45 - 0.65 / Watt

100 Watts(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

max power	100W
operating temperature	-40to+85°c
maximum system voltage	1000V DC
NOCT	48°c±2°c
current temperature coefficient(%/k)	0.06±0.01
voltage temperature coefficient(mv/k)	-(155±10)
power temperature coefficient(%/k)	-(0.5±0.05)
type of output terminal	junction box
cable	900mm,LAPP(4.0mm²)
connection	standard plug and socket
solar cell	poly-crystalline silicon solar cell 156mm*156mm
type of solar cell	type p
No.of cells and connections	36(4*9)
weight	12.5kg

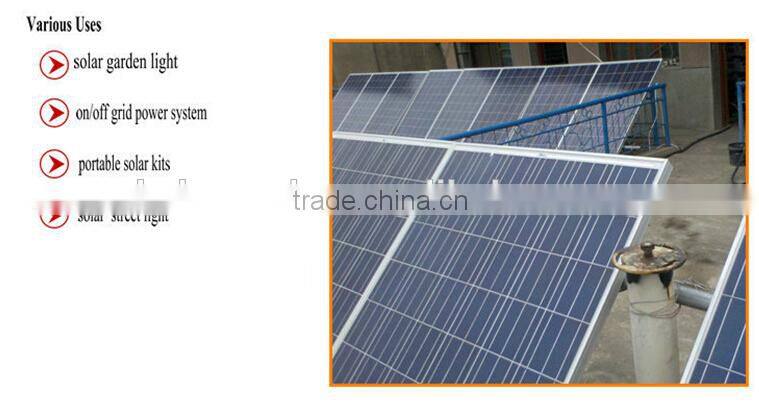

applications	solar lights,household solar power systems,etc

High efficiency solar cells ensure high performance of solar module and create maximum power output.

We have many kinds of solar panels,5W-300W.

Solar Cell:High efficiency solar cells ensure high performance of solar module and create maximum power output.

Low lron Tempered Glass:Anti-reflecting coating and high transmission rate glass increase the power output and

mechanical strength of solar module.

Aluminum Frame:Without screw,corner connection.10holes on the frame can be installed easily.

Supperor Junction Box: Multi function junction box with water proof capabilities.

Long Lifespan:>=25 years.

Tolerance:+/-3%.

Good performance of preventing from atrocious weather such as wind and hails.Resisting moisture and etching

effectively,not effect by

The certificate issued by international authority:CE,TUV,IEC.

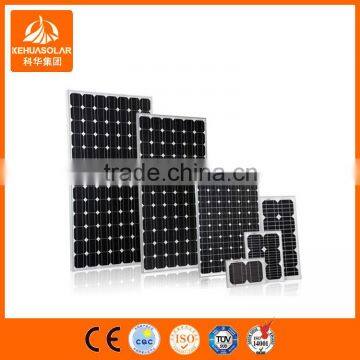

new solar panel

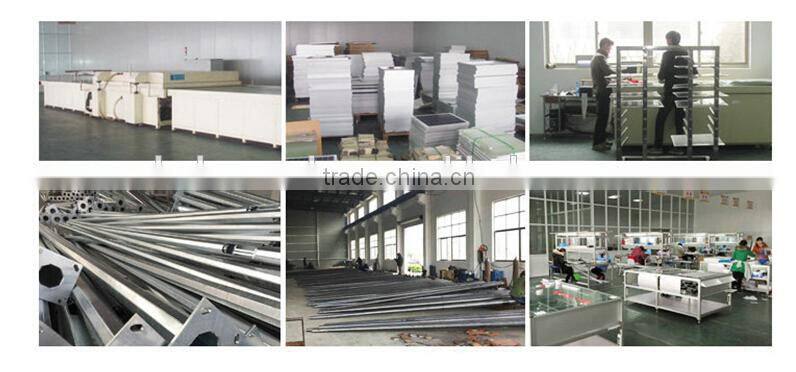

plant view
