hot sale solar panel pv solar module mono poly crystalline

FOB Price

USD $0.5 - $0.6 / Piece

200 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

max power	150W
operating temperature	-40to+85°c
maximum system voltage	1000V DC
NOCT	48°c±2°c
current temperature coefficient(%/k)	0.06±0.01
voltage temperature coefficient(mv/k)	-(155±10)
power temperature coefficient(%/k)	-(0.5±0.05)
type of output terminal	junction box
cable	900mm,LAPP(4.0mm²)
connection	standard plug and socket
solar cell	poly-crystalline silicon solar cell 125mm*125mm
type of solar cell	type p
No.of cells and connections	72(8*9)
weight	16kg
applications	solar lights,household solar power systems,etc

High efficiency solar cells ensure high performance of solar module and create maximum power output.

We have many kinds of solar panels,5W-300W.

Solar Cell:High efficiency solar cells ensure high performance of solar module and create maximum power output.

Low lron Tempered Glass:Anti-reflecting coating and high transmission rate glass increase the power output and

mechanical strength of solar module.

Aluminum Frame:Without screw,corner connection.10holes on the frame can be installed easily.

Supperor Junction Box: Multi function junction box with water proof capabilities.

Long Lifespan:>=25 years.

Tolerance:+/-3%.

Good performance of preventing from atrocious weather such as wind and hails.Resisting moisture and etching

effectively,not effect by

The certificate issued by international authority:CE,TUV,IEC.

new solar panel

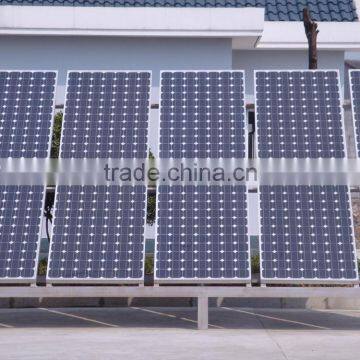

plant view
