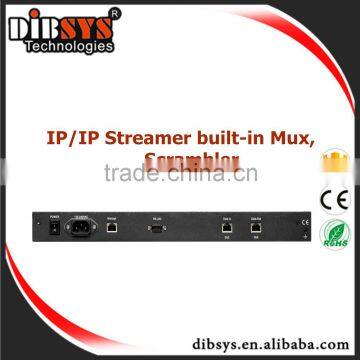

500 mpts/spts stream multichannel IP Multiplexer optional built-in scrambler digital headend

 GbE IP  MPEG Processor with Multiplexing, Scrambling

Overview

DCM700 Digital Content Manager (DCM) MPEG Processor is a compact 1RU platform capable of processing a high number of MPEG video streams. The MPEG Processor is the Second generation of intelligent headend processing equipment where the combination of compactness and flexibility leads to a cost-effective solution. Based on our experience, brings operational and economic benefits in MPEG processing application. The optional built-in DVB scrambler allows easy integration with several Conditional Access (CA)

DCM700 Professional DCM platform is an ideal solution for multiplexing, scrambling of MPEG streams which provide a cost effective, versatile and efficient for delivering digital TV content

over IP networks that Integrates up to 16 separate IP address or Ports and De-encapsulates and Routes Any or All Selected Transport Streams via GbE IP Inputs Port

Key Features

• Up to 2 GbE IP inout per chassis
• Up to 1600Mbps GbE IP inputs,up to 800Mbps GbE IP output
• Up to 500 input TS,24 output TS,1000 DTV programs, be equivalent to 24 sets of multiplexer and scrambler seperately
• Up to 4 CAS simul-cryption
• De-encapsulates and Routes Any or All Selected Transport Streams outputs
• Support processing for multiplexing PSI/SI Table
• PID filtering,mapping and passtthrough
• Auto-generation and manual upload for SI/PSI information
• SPTS and MPTS supported
• Transrating of MPEG2/MPEG4 AVC SD and HD
• Management via WEB and local front panel
• Integrated, compact 1-RU platform saves rack space and reduces operating costs
• Low network jitter,low latency,high PCR precision
• Easy-to-Use System Management
• Real-time monitoring bit rate statistics

Our advantages

1)        High quality and low price

2)        3-year warranty

3)        Perfect after-sale service and technical support
