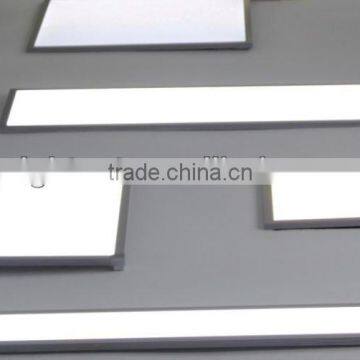

DMX Console with DMX Controller and DMX LED flat light
- Shenzhen
You May Like
Product Details
| LED Light Source | SMD5050 | Warranty(Years) | 2 | |
| Input Voltage(V) | AC100-240V | Lamp Power(W) | 24 | |
| Color Temperature(CCT) | Other, RGB | Working Temperature(℃) | -20, 60 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum | |
| IP Rating | IP54 | Certification | CE | |
| Place of Origin | Guangdong, China | Brand Name | Bright-led panel light | |
| Model Number | BG-502 |
Product Description
Specifications
DMX LED Panel1.300*600*13.5mm RED led panel
2.85-265V red led panel
3.SMD3528 RED LED Panel
4.CE&RoHS RED led panel
DMX Console with DMX Controller and DMX LED Panel
SQUARE PANEL LIGHT | ||||||||
NO. | SIZE(mm) | VOLTAGE | LED TYPE | POWER | LED QTY. | LUMENS | COLOR | IP Grade |
BG-501 | 300x300x13.5mm | 100-240V | SMD3528 | 19 W | 180 pcs | 1000 Lm | W / WW | IP50 |
BG-502 | 300X900X13.5mm | 100-240V | SMD3528 | 30 W | 300 pcs | 1437 Lm | W / WW | IP50 |
BG-503 | 300x1200x13.5mm | 100-240V | SMD3528 | 39 W | 384 pcs | 2170 Lm | W / WW | IP50 |
BG-507 | 300X600X13.5mm | 100-240V | SMD3528 | 22 W | 240 pcs | 1150 Lm | W / WW | IP50 |
BG-511 | 600x600x13.5mm | 100-240V | SMD3528 | 39 W | 372 pcs | 2200 Lm | W / WW | IP50 |
BG-512 | 600x1200x13.5mm | 100-240V | SMD3528 | 78 W | 744 pcs | 4380 Lm | W / WW | IP50 |
ROUND PANEL LIGHT | ||||||||
NO. | SIZE(mm) | VOLTAGE | LED TYPE | POWER | LED QTY. | LUMENS | COLOR | IP Grade |
BG-510 | Φ 10" x H11mm | 100-240V | SMD5050 | 16 W | 100 pcs | 950 Lm | W / WW | IP50 |
BG-508 | Φ 8" x H11mm | 100-240V | SMD5050 | 11 W | 70 pcs | 660 Lm | W / WW | IP50 |
BG-506 | Φ 6" x H11mm | 100-240V | SMD5050 | 8 W | 50 pcs | 560 Lm | W / WW | IP50 |
BG-504 | Φ 4" x H11mm | 100-240V | SMD5050 | 5 W | 30 pcs | 305 Lm | W / WW | IP50 |
RGB PANEL LIGHT | ||||||||
NO. | SIZE(mm) | VOLTAGE | LED TYPE | POWER | LED QTY. | LUMENS | COLOR | IP Grade |
BG-515 | 300x300x13.5mm | 100-240V | SMD5050 | 10 W | 36 pcs | / | R G B | IP50 |
BG-516 | 300x600x13.5mm | 100-240V | SMD5050 | 24 W | 84 pcs | / | R G B | IP50 |
BG-517 | 300X900X13.5mm | 100-240V | SMD5050 | 36 W | 116 pcs | / | R G B | IP50 |
BG-518 | 300x1200x13.5mm | 100-240V | SMD5050 | 48 W | 168 pcs | / | R G B | IP50 |
BG-519 | 600x600x13.5mm | 100-240V | SMD5050 | 24 W | 84 pcs | / | R G B | IP50 |
Features:
DMX Master console (with 48effects) can Connect with DMX decoder, the decoder can be increased to continue to expand output channels,To achieve the effect of multiple point changes.For example: synchronous static, jumpy changing, gradual changing, strobo flash and other effects of change.
