Home > Products > LED Panel light > 17W LED PANEL LIGHT,10" Round LED Panel Lighting,LED Flat Panel Light

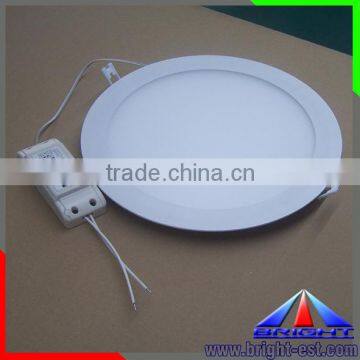

17W LED PANEL LIGHT,10" Round LED Panel Lighting,LED Flat Panel Light
- Shenzhen
- Credit Card
You May Like
Product Details
LED Light Source | SMD3528 | Warranty(Years) | 2 | |
Input Voltage(V) | AC100-240V | Lamp Power(W) | 17 | |
Lamp Luminous Flux(lm) | 1300 | Lamp Luminous Efficiency(lm/w) | 76 | |
Color Temperature(CCT) | Other, 2700-7500K | Working Temperature(℃) | -20, +45 | |
Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum | |
IP Rating | IP54 | Certification | CE | |
Place of Origin | Guangdong, China | Brand Name | Bright | |
Model Number | BG-510A |
Product Description
Specifications
10" LED Panel Light1.High perfomance light guide
2.SMD5630 3528,5050 Hight lumens led
3.Dimmable&Undimmable&RGB
4.CE&ROHS
White Color LED Light Panel,10" LED Panel Light,LED Flat Panel Light
LED Panel Light Specifications
External Driver Required | Yes |
Driver Supplied | Yes |
Dimmable | Optional |
Materials | Aluminum, PVC/Acrylic |
Power Factor | > 0.95 |
Rated Life | 50,000 hours |
CRI | >75 |
Weight | 1500 grams |
Measurements | 10 inch |
LED Panel Light FEATURES
1. LED panel is a kind of advanced indoor light, which inherits the characteristics of simplicity and classics of Europe style. It is gaining the favor of customers for its super thin profile and clear bright light effect. LED panel creates a strong sense of depth and space when applied in indoor places such as meeting room, VIP reception room, and hotel.
2. The frame is made of 6063 aluminum alloy with anodic oxidation treatment, which is very good in heat dissipation. Light source is 3535 LED, which can create a flat lighting effect when its light pass through the light guide plate.
3. LED panel is more energy saving and environment protecting with longer life than traditional light products. Its light is well-proportioned, soft, comfortable and bright.
LED PANEL LIGHT | ||||||||
NO. | SIZE(mm) | VOLTAGE | LED TYPE | POWER | LED QTY. | LUMENS | COLOR | IP Grade |
BG-501 | 300x300x13.5mm | 100-240V | SMD3528 | 19 W | 180 pcs | 1000 Lm | W / WW | IP50 |
BG-502 | 300X900X13.5mm | 100-240V | SMD3528 | 30 W | 300 pcs | 1437 Lm | W / WW | IP50 |
BG-503 | 300x1200x13.5mm | 100-240V | SMD3528 | 39 W | 384 pcs | 2170 Lm | W / WW | IP50 |
BG-507 | 300X600X13.5mm | 100-240V | SMD3528 | 22 W | 240 pcs | 1150 Lm | W / WW | IP50 |
BG-511 | 600x600x13.5mm | 100-240V | SMD3528 | 39 W | 372 pcs | 2200 Lm | W / WW | IP50 |
BG-512 | 600x1200x13.5mm | 100-240V | SMD3528 | 78 W | 744 pcs | 4380 Lm | W / WW | IP50 |
Round LED PANEL LIGHT | ||||||||
NO. | SIZE(mm) | VOLTAGE | LED TYPE | POWER | LED QTY. | LUMENS | COLOR | IP Grade |
BG-510 | Φ 10"x H11mm | 100-240V | SMD5050 | 16 W | 100 pcs | 950 Lm | W / WW | IP50 |
BG-508 | Φ 8"x H11mm | 100-240V | SMD5050 | 11 W | 70 pcs | 660 Lm | W / WW | IP50 |
BG-506 | Φ 6"x H11mm | 100-240V | SMD5050 | 8 W | 50 pcs | 560 Lm | W / WW | IP50 |
BG-504 | Φ 4"x H11mm | 100-240V | SMD5050 | 5 W | 30 pcs | 305 Lm | W / WW | IP50 |
RGB PANEL LIGHT | ||||||||
NO. | SIZE(mm) | VOLTAGE | LED TYPE | POWER | LED QTY. | LUMENS | COLOR | IP Grade |
BG-515 | 300x300x13.5 | 100-240V | SMD5050 | 10 W | 36 pcs | R G B | IP50 | |
BG-516 | 300x600x13.5 | 100-240V | SMD5050 | 24 W | 84 pcs | R G B | IP50 | |
BG-517 | 300X900X13.5 | 100-240V | SMD5050 | 36 W | 116 pcs | R G B | IP50 | |
BG-518 | 300x1200x13.5 | 100-240V | SMD5050 | 48 W | 168 pcs | R G B | IP50 | |
BG-519 | 600x600x13.5 | 100-240V | SMD5050 | 24 W | 84 pcs | R G B | IP50 |
Product Installation instruction:
Packing:
Attention:
1.suggested working temperature is 20 ~ + 40 degree,
or it would bring bad effects to lifespan of the lights once exceed the scope temperature.
2.only use for indoor.
3.Lamp installation and maintenance work must be operated by professionals.
Notes
1.Please read instructions carefully before start installation;
2.Input voltage shall comply with the instruction;
3.Recommended ambient temperature is from -20degree to +45degree, use the product beyond the temperature range will bring bad effect to its service life.
4.This product is for indoor use only;
5.Installation and maintenance of the product should be carried our by professional person.
LED Panel Applications:
Widely used indoor and outdoor lighting, such as room, office, KTV, Bar, wall edge, sink, conceal, ceiling, backlight for indoor lighting, and architecture, sign, advertisement, path, gallery etc for outdoor lighting.
