Home > Products > LED Panel light > Panel Light Smd5050,smd 3528 Led Panel Light,panel Light Round

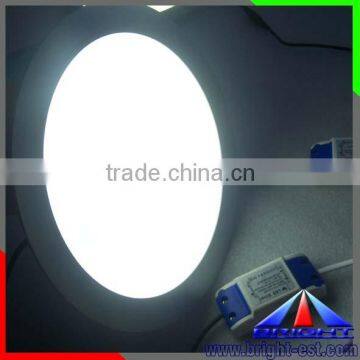

Panel Light Smd5050,smd 3528 Led Panel Light,panel Light Round

FOB Price

US$ 10 - 180 / Piece

1 Piece(Min. Order)

Port Shenzhen

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	SMD5050	Warranty(Years)	2
Input Voltage(V)	AC100-240V	Lamp Power(W)	12
Lamp Luminous Flux(lm)	750	Lamp Luminous Efficiency(lm/w)	85
Color Temperature(CCT)	Cool White	Working Temperature(℃)	-20, 60
Working Lifetime(Hour)	50000	Lamp Body Material	Aluminum
IP Rating	IP54	Certification	CE, EMC, FCC
Place of Origin	Guangdong, China	Brand Name	Bright-12w round led panel
Model Number	BG-506A

Product Description

Specifications

led panel:
1. in factory price
2. 2-7 working days delivery
3.CE&ROHS approval
4.3 yeas warranty

led light panel :

1. Energy-efficient, environment-friendly

2. No glare, no noise, no UV

3. Ultra slim and fashionable design

4. Maintenance free,easy installation

5. No maintenance for the life of unit, apart from cleaning

6. Solid-state,high shock/vibration resistant

7. No fluorescent flickering

8. No danger of broken glass

Item:

NO.	SIZE(mm)	VOLTAGE(V)	LED TYPE	POWER(W)	LED QTY.	LUMENS FLUX (Lm)(white)	COLOR	IP Grade
NO.	SIZE(mm)	VOLTAGE(V)	LED TYPE	POWER(W)	LED QTY.	LUMENS FLUX (Lm)(white)	COLOR	IP Grade
BG-504	ø121*14.5 mm Hole: 4" ø108mm	AC 100-240	SMD3528	7W	40 pcs	420 Lm	WW: 2700-3300K NW : 4000-4500K CW: 5500-6500K	IP50
BG-506A	ø180*14.5 mm Hole: 6" ø170mm	AC 100-240	SMD3528	12W	50 pcs	750 Lm	WW: 2700-3300K NW : 4000-4500K CW: 5500-6500K	IP50
BG-508A	ø245*14.0 mm Hole: 8" ø225mm	AC 100-240	SMD3528	13 W	130 pcs	900 Lm	WW: 2700-3300K NW : 4000-4500K CW: 5500-6500K	IP50
BG-510A	ø278*14.5 mm Hole: 10" ø265mm	AC 100-240	SMD3528	17 W	210 pcs	1300 Lm	WW: 2700-3300K NW : 4000-4500K CW: 5500-6500K	IP50

Picture:

application:

Certificate:

Product Installation instruction:

Packing:

Attention:

1.suggested working temperature is 20 ~ + 40 degree,

or it would bring bad effects to lifespan of the lights once exceed the scope temperature.

2.only use for indoor.

3.Lamp installation and maintenance work must be operated by professionals.

Notes

1.Please read instructions carefully before start installation;

2.Input voltage shall comply with the instruction;

3.Recommended ambient temperature is from -20degree to +45degree, use the product beyond the temperature range will bring bad effect to its service life.

4.This product is for indoor use only;

5.Installation and maintenance of the product should be carried our by professional person
