new Multi-Function Pillow Type Packaging Machine

FOB Price

USD $7,000 - $9,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Medical
Packaging Type	Cartons	Packaging Material	Plastic
Automatic Grade	Automatic	Driven Type	Electric
Voltage	380V	Power	2.8KW 220V
Place of Origin	Zhejiang, China	Brand Name	BOCHENG
Model Number	GZB550-B	Weight	800KGS
Dimension(LWH)	420X100X145CM	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas

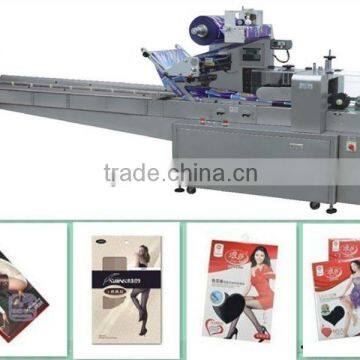

new Multi-Function Pillow Type Packaging Machine

A).Main performance and features

1.This machine adopts Siemens PLC and operates accurately and steadily.

2.Photoelectric tracing, hence more options for bag length and sizes(from 90mm to 600 mm)

3.Bearing plate conveying structure makes it steady and accurate to fill and pack articles.

4.Oversize packing is equipped with air bleeder. it is convenient for multi packing.

5.Coding machine can be equipped, and the printing position can be choose at random.

B).Main technical parameters

Model	BC-250
Max. Film Width	550mm
Max. Capacity of Packing(according to the material)	80bags/min

Model	BC-250
Max. Film Width	550mm
Max. Capacity of Packing(according to the material)	80bags/min
Film Thickness	0.03mm-0.07mm
Bag Length	90mm-300mm/180mm-600mm
Packing Width	60mm-220mm
Packing Hight	≤120mm
Total Power	2.8kw 220v
Overall Dimentions(L×W×H)	4200×1000×1450mm
Total Weight	800kg
