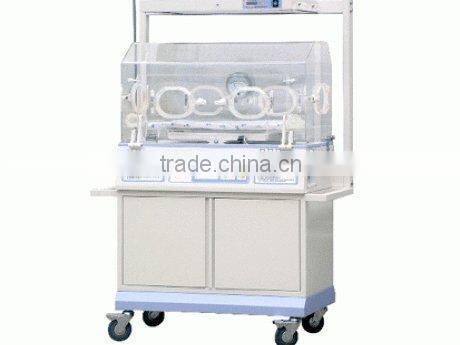

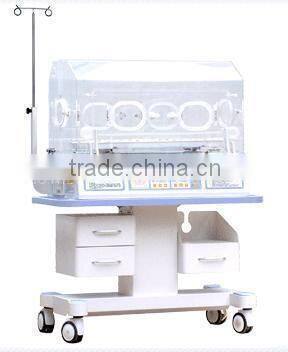

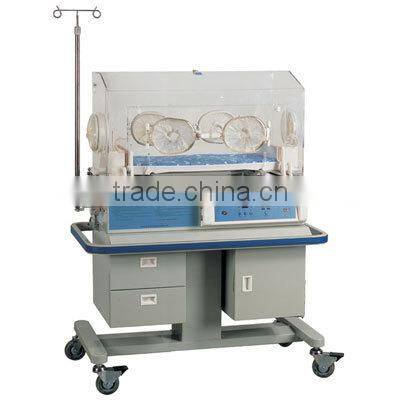

High Standard Medical Equipment Infant Incubator

Features:

Microprocessor based servo controlled temperature system

Control modes: Air mode and baby skin mode

Humidity control system

Set temperature, air temperature, baby skin temperature, humidity, timer and heating power are displayed separately by LED

Self - testing function, various failure alarms by audible and visual

>37℃ temperature set function

Triple protection for over temperature with separate cut off device, more safety system

The inclination of infant bed is adjustable

Single wall hood, 4 operating windows and 2 iris ports

Independent locking device for front door

RS232 connector, Oxygen inlet

Optional function: X ray cassette Tray;baby weight system ; Electric height adjustable ;

LED phototherapy unit; Air and oxygen blender, Double wall hood.

Technical data:

Power supply : 110/220V  60/50Hz

Power input :  ≤420VA

Operating conditions:

Environment temperature: 20°C~30°C

Environment relative humidity: 30%~70%RH

Environment air velocity of flow: <0.3m/s

Air Temperature control range:25°C~38°C

Skin temperature control range:32°C~38.5°C

Skin temperature sensor accuracy:+0.3°C

Temperature fluctuation: +0.5°C

Uniformity of mattress temperature: ≤0.8°C

Warm-up time: ≤30min

Internal noise level: ≤48dB

Infant bed tilt angle : +10º

Mattress size: 65cm(L)*37cm(W)

Trough capacity: 1200ml

Air filter:0.5um

Package:

Each unit is packed in two wooden crate

Size (control unit and cabinet):120*70*96CM    N.W.:80KG  G.W.:110KG

                            Hood: 97*56*63CM     N.W.:15KG  G.W.:40KG

Transport and storage

Environment Temp:-10°C--+70°C

Environment Relative Humidity : ≤80%

Atmospheric Pressure: 500~1060Hpa
