Home > Products > CO2 laser cutting machine > Large Size PMMA Plate CO2 Laser Cutting Bed for Sale

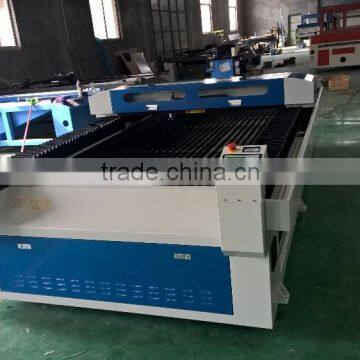

Large Size PMMA Plate CO2 Laser Cutting Bed for Sale
- China port
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Laser Type | CO2 | |
| Applicable Material | Acrylic, Crytal, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood | Cutting Thickness | 35mm | |
| Cutting Area | 1300*2500mm | Cutting Speed | 6m/min | |
| CNC or Not | Yes | Cooling Mode | Water Cooling | |
| Control Software | LEETRO,RD | Graphic Format Supported | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | |
| Place of Origin | Shandong, China | Brand Name | PENN | |
| Model Number | PC-1325L | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
large size PMMA plate CO2 laser cutting bed for sale
ing area 1300*2500mm
2.in stock
3.CE
4.80W/100W/120W/150W laser tube
1.Adopt the international advanced DSP control technology, it is the pioneer to
fast continuously curving-cut and shortcut processing pathway optimizing function,
accordingly increase greatly the decency.
2.It automatically equalizes the diminishing of light during the whole operating to
ensure the same cutting effect ion different area.
3.High-speed cutting control software and buffer function in high-speed movement
can improve production efficiency.
4.The up-to-date software provides the direct output of original pictures; completely
fit the graph foams such as CAD, CAM of CAD, and CorelDraw software, to meet the
practical design requirement of the end users.
5.The advanced colors and the toms of the cutting can realize the one-time output
completelyor partially.
6.It uses USB port to transmit data, equipped with large-capacity memory, improving
working efficiency greatly.
Technical Parameter:
Model | PC1325L | PC1525L | PC1530L |
Table Size(mm) | 1300*2500 | 1500*2500 | 1500*3000 |
Laser Power | 80W/100W/130W/150W/170W | ||
Laser Type | CO2 sealed laser tube, water-cooled, 10.6um | ||
Cooling type | Water-cooled | ||
Engraving Scanning Speed | 0-6000mm/min | ||
Max Moving Speed | 30000mm/min | ||
Cutting speed | 0-1000mm/min | ||
Laser Output Control | 1-100%software setting | ||
Smallest Character Engraving | Character2.0mm*2.0mm, English 1.0mm*1.0mm | ||
Highest Scanning Precision | 4000DPI | ||
Locating Precision | 0.01mm | ||
Supported File Format | DAT,PLT,BMP,DXF,AI,etc. | ||
Compatible Software | TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD | ||
Operating humidity | Temperature:0-45,Humidity:5%-95%(without condensed water) | ||
Optional parts: | Up&down table,auto focus system,rotary device, ball scew tran | ||
Applicable Materials:
Wood,Bamboo,jade,marble,acrylic,crystal,leather,plastic,paper,rubber,ceramic,glass
and other non-metal materials.
