PC-6060M CNC Metal Mold Engraver Machine for Steel 40-50 HRC Available
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
3 Axis CNC Metal Mould Carving Machine for Aluminum
-
CNC Metal Mould Engraving Machine for Steel 4040model
-
Metal Mold Engraving Machine Cast Iron Lathe Bed 600*600mm
-
Heavy Duty CNC Metal Mold Carver Machine Cast Iron Lathe Bed 600*600mm
-
PC-6060M CNC Metal Mould Engraver Machine for Steel 40-50 HRC Available
-
Heavy Duty CNC Metal Mould Carver Machine Cast Iron Lathe Bed 600*600mm
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | PENN | Model Number | PC-6060M | |
| Rated Power | 5.5KW | Engraving Speed | 9m/min | |
| Main Axle Rotational Speed | 24000rpm | Feeding Height | 260MM | |
| Milling Cutter Diameter | 3.175-12mm | Application | metal mould | |
| Dimensions | 2*2*1.9 | Weight | 3T | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

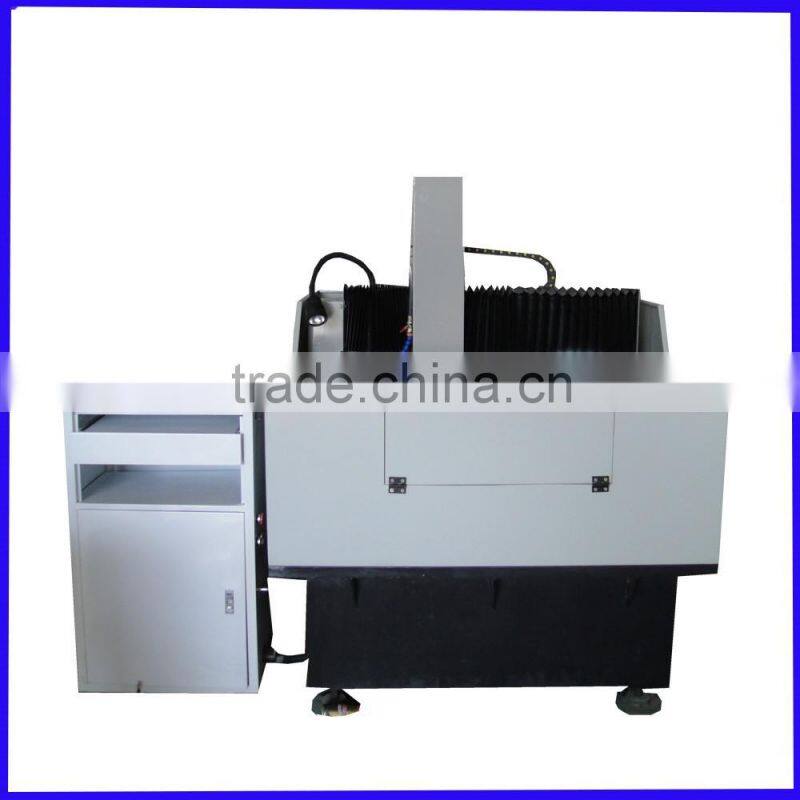

PC-6060M CNC metal mold engraver machine for steel 40-50 HRC available
1. mould industry
tal material
3.cast iron
4.40-50 HRC steel is available
Main configuration:
1.cast iron lathebed
nstant power rate spindle 5.5KW
3. Three axes Taiwan BALL SCREW
4.Taiwan HIWIN linear guideway
5.stainless steel dust proof
6.half cover
7.Copyright Shanghai NC Studio control system
8.stepper motors and drivers
Technical Parameter:
Model | PC-6060M |
X.Y working area(mm) | 600*600 |
Z working area | 260mm |
Resolution | 0.01mm |
X,Y,Z structure | Taiwan ball screw |
Max speed | 9m/min |
Spindle power | 5.5KW |
Spindle rotating speed | 0-24000r/min |
Cooling mode | Water cooling |
Working voltage | AC380V/50/60HZ,3PH |

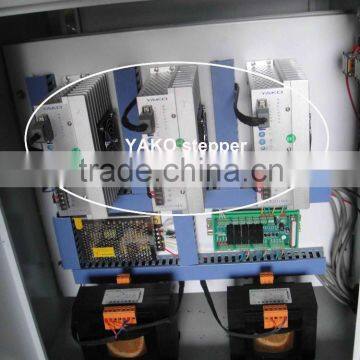

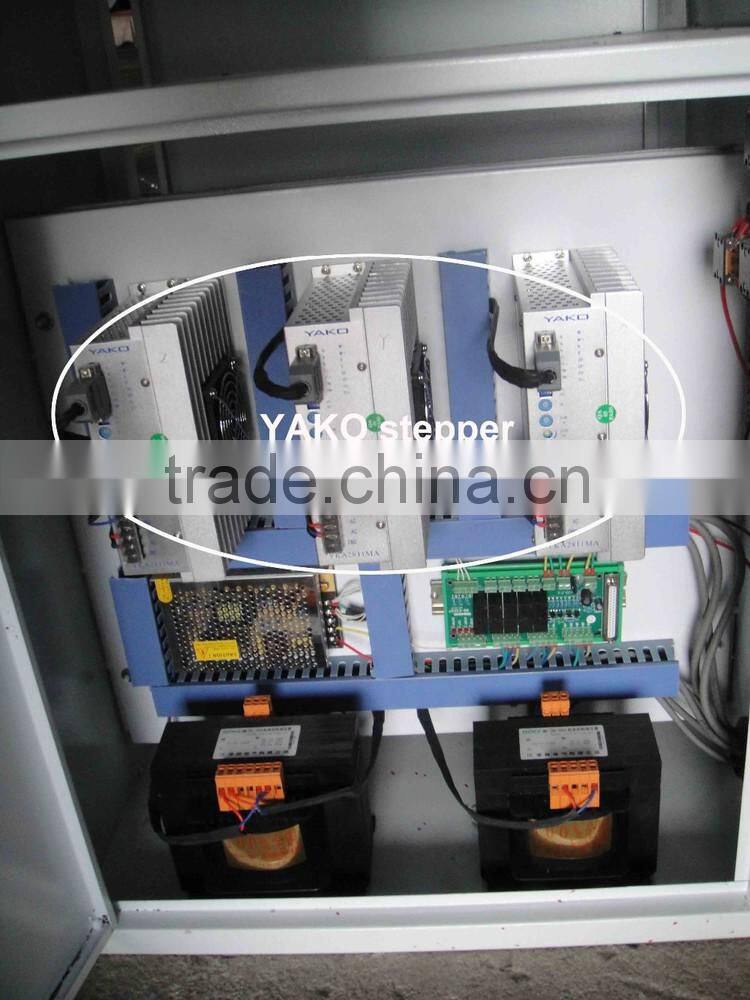

Drive Motor | stepper motors and drivers |
Command | G code*.u00*.mmg*plt |
Operating system | Shanghai weihong |
Diameter of cutter | 3.175-12.7 |
Work-holding | By clamp |

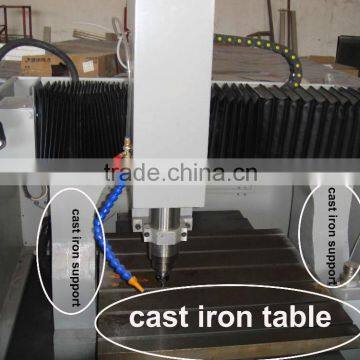

Cast iron lathebed

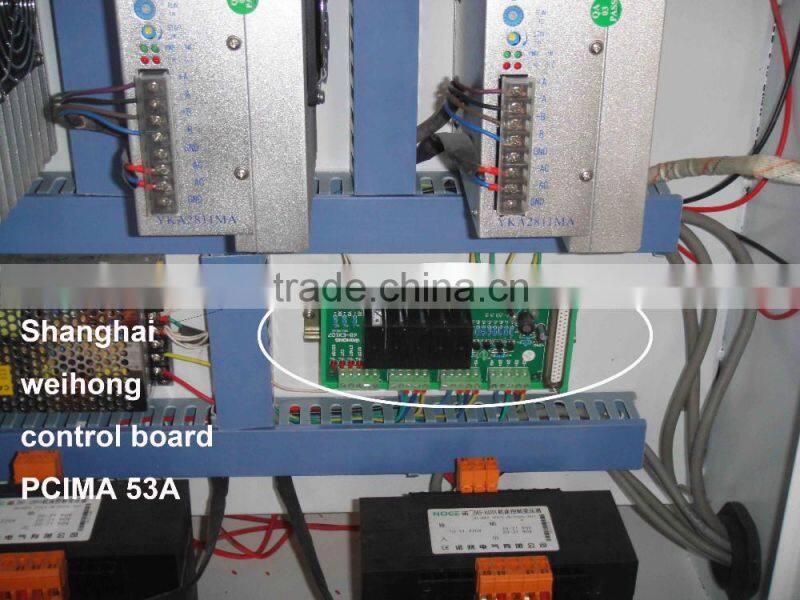

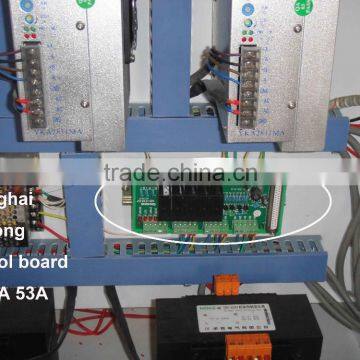

Copyright control system PCIMA 53A card

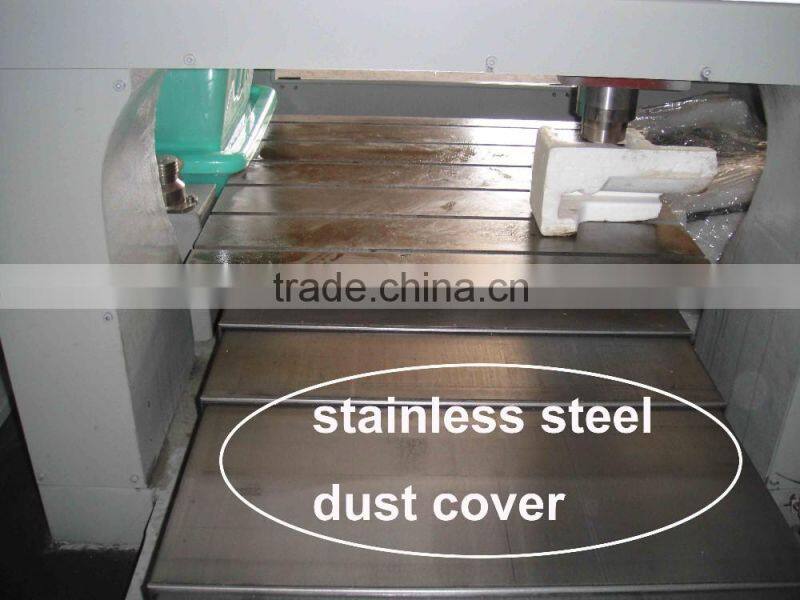

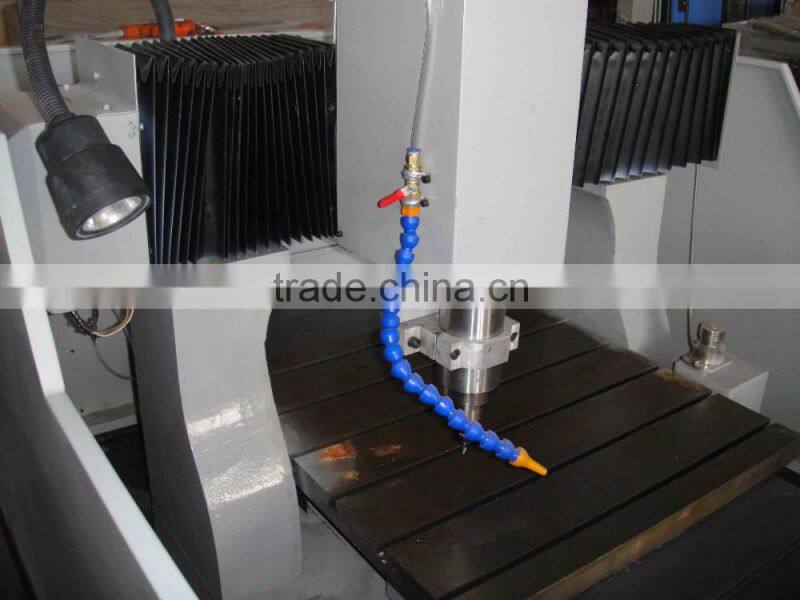

Stainless steel dust cover
Taiwan Ball screw
Sample---aluminum material
More of our other model machines:
wood mould cnc router
1. Delivery time
Standard machine: 2 weeks after getting your deposit.
2. Logo& model no.
Machine with your logo&model no. is available
3. OEM
Available
4. Guarantee
1 year since you get the machine.(lens and mirrors 3 monthes,laser tube 8 monthes)
5. After sales service
24 hours online service in SKYPE,TRADEMANAGER,WHATSAPP type.
If machine has problems because of bad quality parts during guaranty, we change new parts Free,
Out of guaranty, we charge parts at cost price.
Whole lifetime technical support.
6. Packing
LCL: plywood case inner film with steel pipe, Silica gel dryer.
FCL: film cover, fixed in the container, Silica gel dryer.
More models metal mould cnc router
