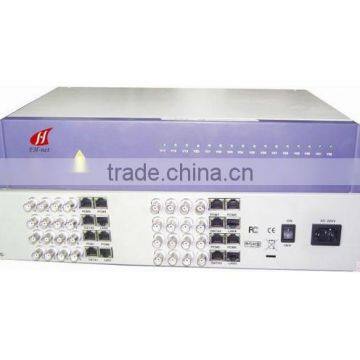

32 channel fiber optical video transmitter

FOB Price

Negotiable / Piece

10 Pieces(Min.Order)

Supply Ability 50000 Piece / Pieces per Month
Port Shenzhen HK
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	FH-net
Model Number	FHC6302T/R

Product Description

Specifications

1.32 channels video transmitter;
2.4 E1 and 1*100/1000M Ethernet over a single fiber cable;
3.Uncompressed digital video

Overview:
The Product is a fiber optic digital multiplexer for transmitting 32 channel high quality, uncompressed digital video, 8 channels of bi-directional data and audio, 4 E1 and one 100/1000M Ethernet over a single fiber cable. The product may also be maintained by our future product, FHC-6000M, a Network Management System.
Applications for this product include CCTV, video surveillance, homeland security, ITS and etc.

Features:

Transport 32 channels of High quality video over one optical fiber cable
Exceed RS250C Medium Haul Specification for DG, DP and SNR.
8MHz video bandwidth, Compatible with NTSC, PAL and SECAM
Uncompressed video, 8/10 Bit digital encoding/decoding
Transmission of 8channels of any directional audio
Provide 8 channels of bi-dir data compatible with RS232, RS422/RS485
Support 4 E1, G.703 standard
One 10M/100/1000M Ethernet compatible with IEEE802.3
Easy installation and adjustment free
Transmission up to 60KM over one fiber

Specifications:

Power:
220VAC/50Hz, standalone device
1A@5VDC for rack card
Indicators:
Power, Optical Link Status
Video Signal, Audio status, Data traffic
E1 Alarm, Ethernet Link Status
Video:
Format: PAL/NTSC/SECAM
Video Signal: 1Vp-p, 75Ω
Digitization: 8/10bits, 15M Sample
Bandwidth 8MHz
DG <1%
DP <0.5o
SNR >63dB(weighted)
Connectors: 16 BNCs
Audio
Channel: 1~8, Bi-dir
Audio Input: unbalanced, 600Ohms
Digitization: 16bit@48k
Frequency: 10Hz to 20KHz
SNR: >70dB
Connector: RJ45

Data:
Channel: 1~8, Bi-dir
Data Rate: 0~~180Kbps/Ch
Format: RS-232/RS-422/RS-485
Connector: RJ45
E1 support:
Bit rate: 2.048Mb
Line code: HDB3
Standard: ITU-T G.703
Connector: CC3(1.0/2.8)
line impedance: 75ohm
Jitter Performance: G.742 and G.823
Ethernet:
Data Rate: 10/100/1000Mbps auto detect
Standard: IEEE802.3
Connector: RJ45
Auto-negotiation with half/full duplex
Environment:
Operating: 0oC~+70oC
Storage: -40oC~+85oC
Humidity: 0-95% Non-Condensing
Physical Dimension:
434 * 66 * 200(mm), Standalone

Ordering Information:

Fiber Type	Video Transmitter	Video Receiver	Range	Notes
Singlemode (09/125μm)	FHC-6320T-W	FHC-6320R-W	40Km	Video only
	FHC-6320TnAnD-W	FHC-6320RnAnD-W	20Km
	FHC-6320TnAnD-W	FHC-6320RnAnD-W	40Km
	FHC-63207TnAnD-W	FHC-6320RnAnD-W	60Km
CWDM	FHC-6320T-Wllllrr	FHC-6320R-Wllllrr	rrKm	Video only
CWDM	FHC-6320TnAnD-Wllllrr	FHC-6320RnAnD-Wllllrr	rrKm

Note:

Replace n within 1 through 8 for audio and data channel numbers
Replace llll with CWDM wavelength, replace rr with requested distance
Add -M at the end of model number for rack card product
FC connectors standard, consult factory for other connectors
