New Product RF Dimmer for Led Lights, Led Remote 2.4G Touch Controller, DC12V Led Dimmer
- ShenZhen
- Credit Card
You May Like
-
2015 New Design 2.4G RF Remote Controller Led Dimmer, 1 to 4 Led Remote Dimmer
-
2.4G Led Light Controller, RF Led Dimmer, Single Color Led Controller
-
Smart Wirless Led Wifi Driver RGB Led Driver RF Led Driver
-
Smart Wirless RGB Led Driver RF Led Driver
-
Smart Wirless Led Driver RF Led Driver
-
Smart Led Controller,Digital LED Controller With Display Screen CE&ROHS Made in China
Product Details
| Place of Origin | Guangdong, China | Brand Name | BRIGHT | |
| Model Number | BG-J-DT11 | Type | Remote Control | |
| Max. Load Power | 192W | Voltage | Other, DC12-24V |
Product Description
led touch dimme,RF touch controller
Electrical Specification:
Working Voltage | DC12V~24V |
Peak Output Power | 96W@12V, 192W@24V (50% duty cycle) |
Peak Output Curren | 4A (50% duty cycle)2way,4A per channel |
| Remote controll | RF wireless card type remote controller |
| Remote Controll Frequency | 2400-2483.5MHz |
Remote Controll Voltage | DC12-24V |
Remote Standby Current | <1uA |
| Remote Distance | >15 meters at open area |
Remote Controller matching mode | 1 to 1-4 match for remote to controller |
control mode | GFSK |
Wrong Polarity Protection | Yes |
Working Temprature | -30~70 |
Components & PCB | SMD parts / Double side FR |
Environmental Standards | Rohs compliant |

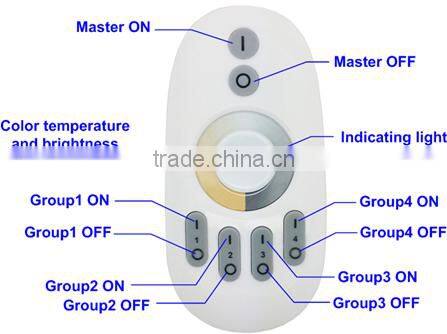

The Remote control parameter are as below table:
Item | Parameter | Remarks |
Supply voltage | 3V | 2pcs AAA battery |
Transmitting frequency | 2400-2483.5MHz |
|
Control Mode | GFSK |
|
Transmitting power | 6db |
|
Static power consumption | 10uA |
|
Remote distance | 20-30M |
|
External dimension | 110*55*20mm |

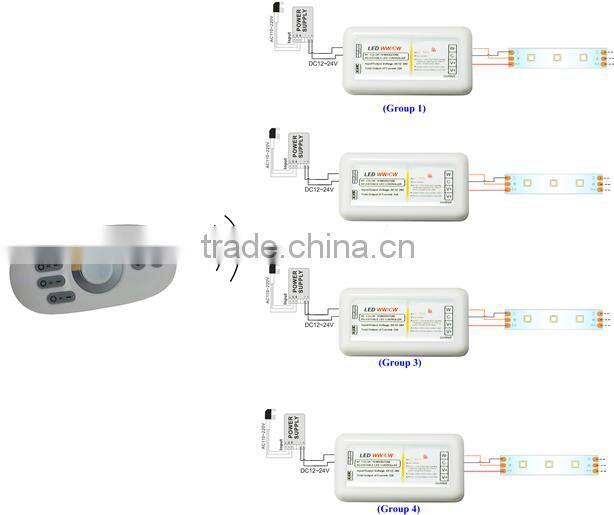

Typical Application
Features:
1. Auto adaptation of 12-24V DC working voltage and with input polarity protection function
2. The newest 2.4G control technology, delicate light performance, no flicker
3. High power dimmer control MOS tube with stable and reliable performance
4. More than 15 meters RF remote control distance
5. Multi-level, multi-color, multi-change flexible control effects
6. Multi-type memory functions for color, modes, speed, and brightness
7. Smart appearance, standard input and output port, easy installation and high cost performance.
Single color dimmer:
Double colors dimmer controller:
