Home > Products > LED Controller > 2015 HOT!!! RF 2.4G Touch Dimmer, White, WW+CW, RGB, RGBW Led Light Dimmer With Remote

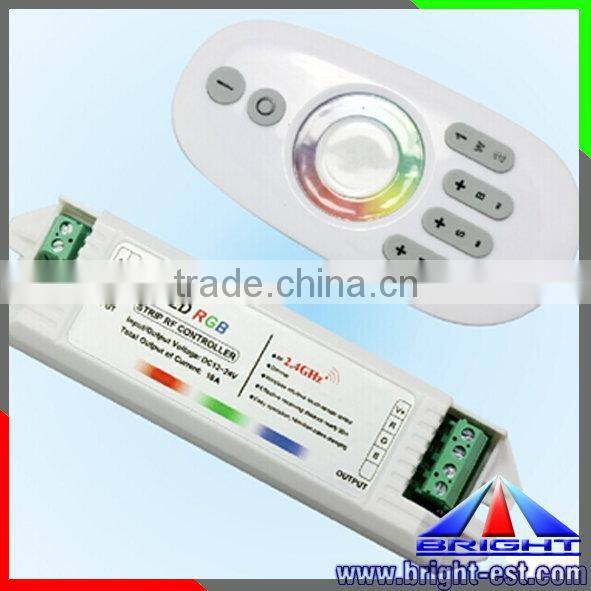

2015 HOT!!! RF 2.4G Touch Dimmer, White, WW+CW, RGB, RGBW Led Light Dimmer With Remote
- ShenZhen
- Credit Card
You May Like
-
DC12V DC24V Single-color WW/W RGB Wifi LED Dimmer,Wifi LED Smart Controller,RGB Remote Wifi Controller
-
New Design 2.4G RF RGB Touch Controller, Led Remote Controller, RGB Strips Dimmer
-
DC12V DC24V Single-color WW/W RGB Wifi Control,Wifi Lighting Control,RGB LED Strip Wifi Controller
-
Led RGB Controller, RF Led RGB Remote, 2.4G RGBW Remote Controller
-
Chian Supplier RF Led Touch Dimmer Controller, Double Colors Led Dimmer 2.4G
-
Wirless Mini RGB LED Controller Wifi,Smart RGB Wifi LED Controller,Android and IOS MINI Wifi Controller
Product Details
| Place of Origin | Guangdong, China | Brand Name | BRIGHT | |
| Model Number | BG-J-QC11 | Type | Remote Control | |
| Max. Load Power | 288W | Voltage | Other, DC12-24V |
Product Description
led touch dimme,RF touch controller
Electrical Specification:
Working Voltage | DC12V~24V |
Peak Output Power | 144W@12V, 288W@24V |
Peak Output Curren | 4A (50% duty cycle)4way,4A per channel |
| Remote controll | RF wireless card type remote controller |
| Remote Controll Frequency | 2400-2483.5MHz |
Remote Controll Voltage | DC12-24V |
Remote Standby Current | <1uA |
| Remote Distance | >15 meters at open area |
Remote Controller matching mode | 1 to 1 match for remote to controller |
control mode | GFSK |
Wrong Polarity Protection | Yes |
Working Temprature | -30~70 |
Components & PCB | SMD parts / Double side FR |
Environmental Standards | Rohs compliant |

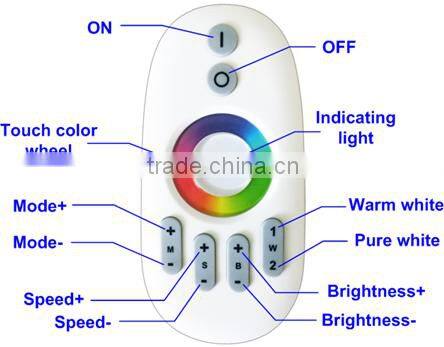

The Remote control parameter are as below table:
Item | Parameter | Remarks |
Supply voltage | 3V | 2pcs AAA battery |
Transmitting frequency | 2400-2483.5MHz |
|
Control Mode | GFSK |
|
Transmitting power | 6db |
|
Static power consumption | 10uA |
|
Remote distance | 20-30M |
|
External dimension | 110*55*20mm |

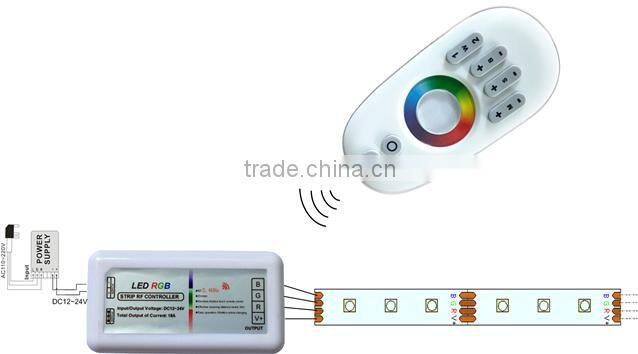

Typical Application
Features:
1. Auto adaptation of 12-24V DC working voltage and with input polarity protection function
2. The newest 2.4G control technology, delicate light performance, no flicker
3. High power dimmer control MOS tube with stable and reliable performance
4. More than 15 meters RF remote control distance
5. Multi-level, multi-color, multi-change flexible control effects
6. Multi-type memory functions for color, modes, speed, and brightness
7. Smart appearance, standard input and output port, easy installation and high cost performance.

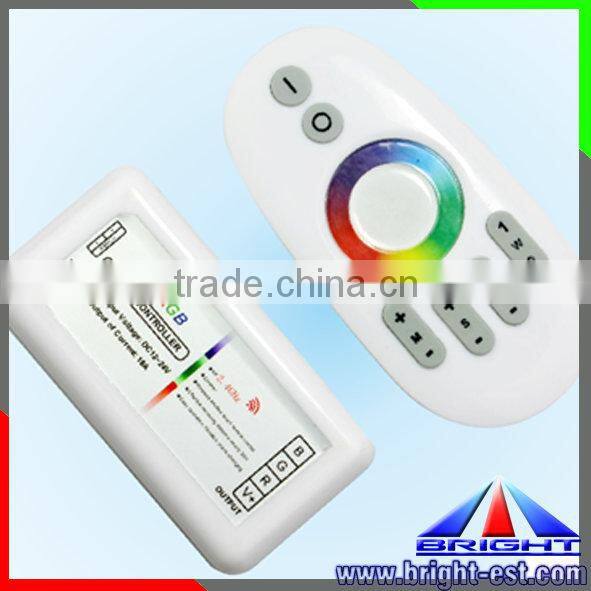

RGB:

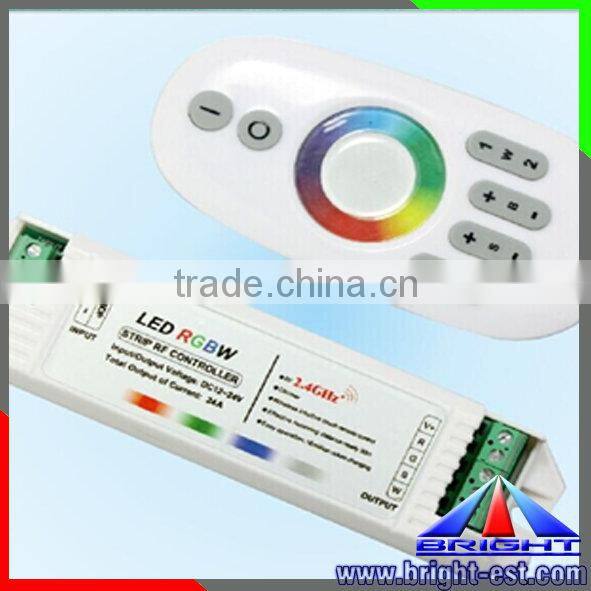

RGBW:

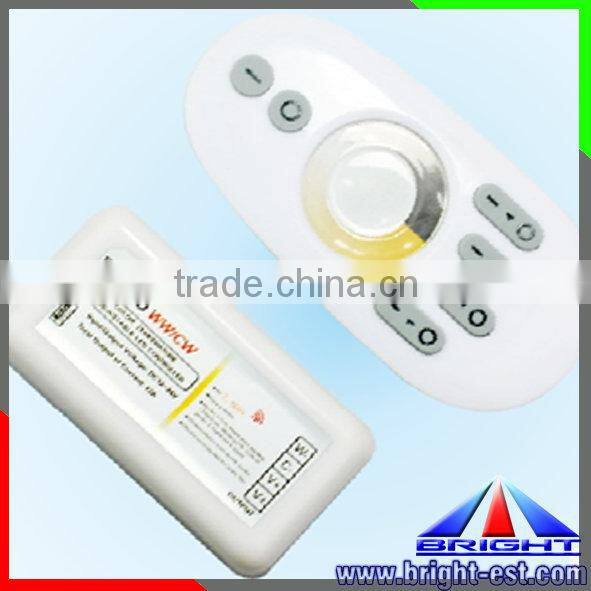

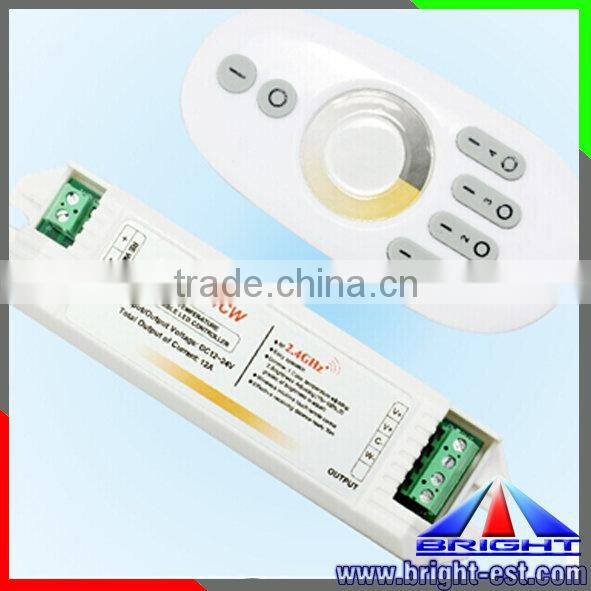

Double colors controller:
Express Delivery:
Payment Terms:
1.T/T (in advance)
2.Paypal
3.Western Union
1.Your inquiry related to our products or prices will be replied within 24 hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.OEM & ODM welcomed, our professional R&D dept. will realize your customized lighting.
4.Distributorship is offered for your unique design and some of our current models.
5.Protection of your sales area, ideas of design and all your private information
Why choose us
Advanced machinery, well trained workers.
5 years experience in LED lighting industry.
Unique designed, good quality, competitive price.
Full range of indoor and outdoor LED lighting solution.
Zero improper after-sales service if any quality issue happened
If there any questions, pls don't hesitate to contact me!!!
