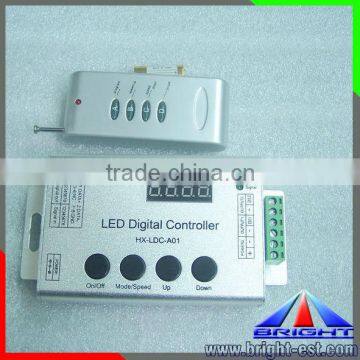

led digital DMX controller, led mini controller with amplifier for RGB led strip
- 10000 Piece / Pieces per Month
- Shenzhen
- Credit Card
You May Like
-
led dimmer switch controller, mini led controller dimmer, DC2.1mm RF led controller for led strip light Quality Choice
-
New product RGB led strip WIFI controller
-
RGB WiFi controller, APP systerm led controller, mobilphone remote wifi controller
-
DC12V 3Channel Digital SD Card Led Controller,SD Card Led Strip Controller,LED SD Card DMX Controller
-
DC12V 3Channel Pixel LED Controller,RGB Pixel LED Controller,Digital LED Controller
-
Hot sale procduct Led Dimmer Controller 12-24V RGB Led Controller Wifi Bluetooth Led Controller Quality Choice
Product Details
Place of Origin | Guangdong, China | Brand Name | BRIGHT | |
Model Number | BG-SZ100-CT |
Product Description
Digital cotroller TM1803/TM1804/TM1809/UCS1903/WS2811
CONTROLLER PROPOSAL
The Digital LED strip can be used with the special designed which developed by our company, it can realize different kinds of color changing mode such as 7 color static changing, waterflowing, chasing, gradual changing, flashing, proliferation with the inner fixing light programs controller, total is 133 kinds of program.
TECHNICAL PARAMETER OF CONTROLLER
Working temperature | -20-60℃ |
Supply voltage | DC12V |
Current | <60mA |
External dimension | L137*W70*H25 mm |
Packing size | L137*W80*H54mm |
Net weight | 180g |
Gross weight | 270g |
Effects model | 133 |
Maximum control points | 1024 (Low-speed) points, 2048 (High-speed) points |
Controlled IC Model | Such as the TM1803, TM1804, TM1809, , TM1812, UCS1903 etc. |
STEERING MANUAL
1). Connect the load well wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power. Then set the steps as follows.
2). Press the "On / off" button to take the controller off before setting the menu.
3). Press the “up”, “down” button one time at the time, and LED would be bright at this moment. Then press the "Mode / Speed" button to get into the menu settings screen.
4). The first setting screen is for “High-speed, low-speed settings”, and the LED would display "S-HI" or "S-LO". Then press the “up” and “down” button to select the mode. (If the IC on the light bar is high-speed mode, you should choose “S-HI”, and choose “S-HI” when low-speed.) The factory default is for the high-speed mode.
Continue to press the "Mode / Speed" button to enter the second screen-“Control points setting”. The LED display 4-digit is for the number of control points. To plus or minus the number by pressing the “up” and “down” button (Long pressing can adjust quickly). The factory default is for 50.
5). As set well, press the "On / off" button to save and exit.
6). There are 4 buttons in total on the control panel, function of each button as below:
7). Adopt wireless control method, 4keys in total, function of each key as below:
On/off: It can open or close output.
Mode/Speed: Mode adjustment / speed adjustment function switch (The first LED displays H for model adjustment, shows S for the speed adjustment.)
UP: Mode+/Speed+ button. When in mode regulator function, it is for “Mode+”. When in speed regulator function, it is for “Speed+”.
DOWN: Mode-/Speed- button. When in mode regulator function, it is for “Mode-”. When in speed regulator function, it is for “Speed-”.
A: Mode adjustment / speed adjustment function switch (The first LED displays H for model adjustment, shows S for the speed adjustment.)
B: Mode+/Speed+ button. When in mode regulator function,it is for “Mode+”. When in speed regulator function, it is for “Speed+”.
C: Mode-/Speed- button. When in mode regulator function, it is for “Mode-”. When in speed regulator function, it is for “Speed-”.
D: On/Off button: It can open or close output.
Note: After powering, the red light would bright. And each press, the green light flash one time.
APPLICATION CONNECTION 1
APPLICATION CONNECTION 2
(Each controller can be individually powered, can also share power) Application of synchronization:
(Cascade Connection)
(Bus connection)
