Home > Products > 12V VRLA lead acid battery > 12V 100AH Valve Regulated Lead Acid Storage Battery

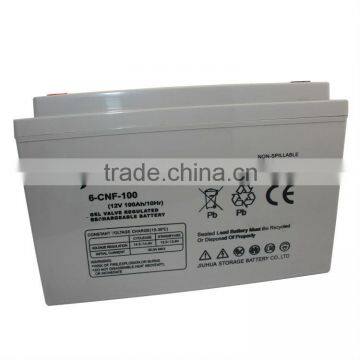

12V 100AH Valve Regulated Lead Acid Storage Battery
- ningbo
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | JIUHUA | |
| Model Number | 12V100AH | Usage | Other, Storage | |
| Voltage | Other, 12v | Sealed Type | Sealed | |
| Maintenance Type | Free | Size | 330*171*217 | |
| Weight | 30kg | Nominal Capacity | 100ah |
Product Description
Specifications
1)lead acid battery with 100Ah
2)CE&UL approved
3)Maintenance free battery.
Lead acid battery 12V100Ah:
Battery Structure:
1) Container/Cover: Made of UL94HB and UL 94-0ABS Plastic.
2) Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency
and less gassing.
3) Separator: Import high quality AGM separator.
4) Positive plates: PbCa grids minimize corrosion and prolong life.
5) Terminal post: Copper material with maximum conductivity, enhance the high current rapidly.
6) Vent Valve: Allows the release of the excess gas automatically for safety.
Application:UPS, solar systems, control systems, power systems, wind energy systems,
telecommunication/communication systems and etc.
Installation Notice:
1) Lay the battery with up-down direction instead of put it inverted in any case.
2) Abnormal vibration or shock is not allowed.
3) Do insulate when installation.
4) Make the batteries ventilated and gapped.
5) Do not mixed up different brand and different manufacturing date batteries.
6) Separate the batteries from organic solvent.
ups battery, alarm system battery, lead acid battery
Internal Resistance: Fully charged battery 25 °C------0.02 Ohm
Self Discharge: 3% of capacity declined per month at (25 °C)
| ITEM NO. | VOLTAGE(V) | CAPACITY(AH) | Dimension(mm) | Weight(Kg) | Packing (pcs/ctn) | |||
| Length | Width | Height | Total height | |||||
| 3-FM-1.3 | 6 | 1.3 | 97 | 24 | 52 | 57 | 0.30 | 60 |
| 3-FM-2.8 | 6 | 2.8 | 65 | 33 | 97 | 103 | 0.62 | 30 |
| 3-FM-3.2 | 6 | 3.2 | 124 | 33 | 60 | 65 | 0.65 | 20 |
| 3-FM-4 | 6 | 4 | 70 | 47 | 101 | 106 | 0.69 | 20 |
| 3-FM-5.5 | 6 | 5.5 | 67 | 67 | 96 | 103 | 0.82 | 20 |
| 3-FM-7 | 6 | 7 | 151 | 34 | 94 | 99 | 1.20 | 20 |
| 3-FM-9 | 6 | 9 | 98 | 56 | 118 | 118 | 1.55 | 10 |
| 3-FM-10 | 6 | 10 | 151 | 50 | 94 | 99 | 1.82 | 10 |
| 3-FM-12 | 6 | 12 | 151 | 51 | 94 | 99 | 1.90 | 10 |
| 3-FM-14 | 6 | 14 | 107 | 70 | 139 | 139 | 2.30 | 8 |
| 6-FM-0.8 | 12 | 0.8 | 96 | 25 | 62 | 62 | 0.35 | 20 |
| 6-FM-1.3 | 12 | 1.3 | 97 | 43 | 52 | 58 | 0.60 | 12 |
| 6-FM-2.2 | 12 | 2.2 | 177 | 35 | 61 | 66 | 0.98 | 10 |
| 6-FM-2.8 | 12 | 2.8 | 177 | 35 | 61 | 65 | 1.15 | 10 |
| 6-FM-3.2 | 12 | 3.2 | 134 | 67 | 60 | 64 | 1.30 | 10 |
| 6-FM-4 | 12 | 4 | 90 | 70 | 102 | 106 | 1.43 | 12 |
| 6-FM-5.5 | 12 | 5.5 | 151 | 50 | 94 | 99 | 1.80 | 10 |
| 6-FM-7 | 12 | 7 | 151 | 65 | 94 | 99 | 2.20 | 8/10 |
| 6-FM-9 | 12 | 9 | 151 | 65 | 94 | 99 | 2.65 | 8/10 |
| 6-FM-10 | 12 | 10 | 151 | 99 | 94 | 100 | 3.30 | 6 |
| 6-FM-12 | 12 | 12 | 151 | 99 | 94 | 100 | 3.85 | 6 |
| 6-FM-18 | 12 | 18 | 181 | 76 | 166 | 166 | 5.55 | 4 |
| 6-FM-24 | 12 | 24 | 175 | 166 | 125 | 125 | 6.50 | 2 |
| 6-FM-30 | 12 | 30 | 196 | 131 | 164 | 170 | 10.50 | 1 |
| 6-FM-40 | 12 | 40 | 196 | 165 | 170 | 170 | 13.30 | 1 |
| 6-FM-50 | 12 | 50 | 196 | 166 | 175 | 182 | 14.20 | 1 |
| 6-FM-55 | 12 | 55 | 230 | 138 | 208 | 213 | 17.50 | 1 |
| 6-FM-65 | 12 | 65 | 350 | 166 | 176 | 176 | 20.00 | 1 |
| 6-FM-70 | 12 | 70 | 260 | 167 | 209 | 227 | 21.90 | 1 |
| 6-FM-75 | 12 | 75 | 260 | 167 | 209 | 227 | 23.00 | 1 |
| 6-FM-85 | 12 | 85 | 350 | 167 | 173 | 180 | 25.00 | 1 |
| 6-FM-90 | 12 | 90 | 307 | 169 | 208 | 227 | 27.00 | 1 |
| 6-FM-100 | 12 | 100 | 329 | 172 | 215 | 220 | 29.00 | 1 |
| 6-FM-120 | 12 | 120 | 406 | 174 | 208 | 235 | 36.00 | 1 |
| 6-FM-150 | 12 | 150 | 483 | 170 | 241 | 241 | 46.00 | 1 |
| 6-FM-200 | 12 | 200 | 522 | 240 | 219 | 245 | 60.00 | 1 |
| 6-FM-250 | 12 | 250 | 520 | 268 | 220 | 249 | 72.00 | 1 |
| 3-FM-150 | 6 | 150 | 260 | 180 | 247 | 251 | 23.50 | 1 |
