Home > Products > Electric Stacker > Oil Drum power lift full electric Hydraulic Forklift

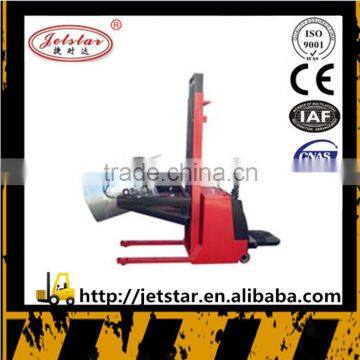

Oil Drum power lift full electric Hydraulic Forklift
- shanghai
- T/T Credit Card
You May Like
-
Wide leg setable electric stacker battery charger forklift
-
power lift full electric pallet Hydraulic Forklift 1.5T
-
1.5 ton 4.5m standing Electric mini pallet hydraulic forklift
-
mini Residential structural steel semi electric forklift
-
Double mast power lift full electric Hydraulic Forklift
-
Jetstar compact structure battery lift platform stacker
Product Details
Condition | New | Place of Origin | Jiangsu, China | |
Brand Name | Jetstar | Model Number | HL15 | |
Type | Powered Pallet Truck | Power Souce | DC Motor | |
Rated Loading Capacity | 1/1.2/1.5 T | Max. Lifting Height | 5500mm | |
Min. Lifting Height | 90mm | Fork Length | 1150mm | |
Fork Width | 320mm | Overall Dimensions | 1988*850*1975mm | |
Certification | CE | After-sales Service Provided | Overseas third-party support available |
Product Description
Oil Drum power lift full electric Hydraulic Forklift
Advantages:
1.America CURTIS Main-handle Assembly;
2.Handle Button Accelerator (stepless adjusting speed),
3.Electric Controller Electric Meter Contactor
4.Swiss BUCHER Hydraulic System;
5.Motor Oil Pump Distribution Valve Flow Control Valve,
6.Pressure Regulator Valve,One-way Valve
7.Hong Kong Oil Cylinder
8.Intelligent Battery and driving wheel from China or imported
General | Model | Unit | HL12 | HL15 | |
Rated load capacity | kg | 1200 | 1500 | ||
Power |
| Tractive-type battery | |||
Operator type |
| Pedestrian / rider (pedal) | |||
Characteristics | Maximum lifting height | mm | 5500 | 5500 | |
Lowered height of fork | mm | ≤90 | ≤90 | ||
Minimum turning radius | mm | 1425 | 1650 | ||
Minimum aisle width | mm | 2300 | 2500 | ||
Minimum ground clearance | mm | 30 | 30 | ||
Standard fork length | mm | 1150 | 1150 | ||
Standard fork width | mm | 175 | 175 | ||
Fork overall width | mm | 570 | 570 | ||
Fork individual width | mm | 220 | 220 | ||
Chassis | Overall length | mm | 1800 | 1988 | |
Overall width | mm | 850 | 1000 | ||
Mast extended height | mm | 1975 | 1975 | ||
Mast lowered height | mm | 1975 | 1975 | ||
Performance | Maximum traveling speed | Laden | km/h | 4 | 4 |
Unladen | km/h | 6 | 6 | ||
Maximum lifting speed | Laden | mm/h | 80 | 80 | |
Unladen | mm/h | 130 | 130 | ||
Maximum lowering speed | Laden | mm/h | 110 | 110 | |
Unladen | mm/h | 90 | 90 | ||
Gradeability | Laden | % | 5 | 5 | |
Unladen | % | 8 | 8 | ||
Brake | Braking type |
| Electromagnetic | ||
Wheel | Wheel type front/rear |
| Poly/Poly | ||
Wheels |
| 1×Driven wheel,2×Balance wheel,4×Front wheel | |||
Balance wheel dimension | mm | Φ156×50 | Φ156×75 | ||
Axis space | mm | 1228 | 1450 | ||
Motor | Driving motor | kw | 1.2 | ||
Lifting motor | kw | 2.2 | |||
Battery | Battery(Voltage/Capacity) | V/Ah | 12/165 | 24/210 | |
Control | Control system |
| Curtis I207a | ||
Weight | Weight | kg | 1260 | 1360 |
this specification is for reference, if you have other needs,please contect me
Packaging
1)Normal Packing for free
Inner Pack: Bubble Film + PP Knitted Band
Outer Pack: Wrapping Film + Iron Pallet
2)Plywood case packing for optional
Shipping
The transportation depends on client's choice, usually by sea, by train etc.You also can choose other shipping method and inform us before shipment.
Hong Kong Investment Taizhou Jetstar Machinery Equipment Co. Ltd. is a diversified, high-tech, and internationalized large modern company. She was established in 2006 as a professional manufacturer and exporter of forklift. The head office was located in Hong Kong, as a window for overseas business, and the factory is located in the Economic Development Zone, Taizhou city of Jiangsu Province.
During the development of our company, we realize that people are the most important resources of all and we invested very heavily on our staffs. Currently, we have 20 veteran engineers and experts who were having been busy in developing new electric logistics machines. Also our products are of streamline design and have many components made in America and Europe. So the surface, the structure and the useful life about our products are achieved the international level.
Backed by our own and our partner factories, professional technology and valuable customers, our products has steadily developed into one of the largest and most experienced suppliers of forklift, electric stackers, electric pallet trucks, series semi-electric stackers in China. Our products are marketed under “Jetstar” brand and sold into the markets of America, Europe and different area of the world.
Our company passed CE certification and ISO 9001:2000, we completely carry out the quality management system of it. We persist with the principle of “Quality first, customer first, management first”, so that we can offer you the first class products and the first class service. We also have OEM service to manufacture products according to customers’ specific requirements. Please don’t hesitate to contact us for more details or visit our website if you have any questions or inquiries.
• If you want to buy forklifts, you should Tell us your detail requirements(Load Capacity? Lifting height etc.) by email or on TradeManager or Whatsapp, We will send you our offer in 24 hours.
•We provide excellent after service.
•We accept custom non-standard products
•You can add logo on our products! We provide OEM/ODM service. In addition, we promise your design would protect by law, we won't tell anyone else about this. It's your own copyright.
•If you have any repair questions, we can also help because we are professional.
More Products maybe you interested, please contact us
TaiZhou Jetstar Machinery Equipment Co.,Ltd.
address: No.48 Renjing Road, TaiZhou City,JiangSu Province, China
Tel: +86 15896005039
Fax: +86 523 86573337Email: 15896005039(at) & mandy_huo(at)whatsapp:+86 158 9600 5039
