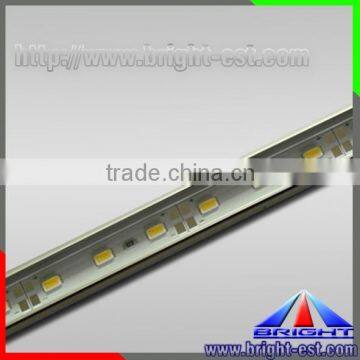

Aluminum Bar light, Rigid LED Bar Epistar Chip,LED light bar
- ShenZhen
- Credit Card
You May Like
-
5630 aluminum Samsung led bar light SMD5630 DC12V led rigid strip
Quality Choice
-
U/V Shape Aluminum Housing LED Light Bar, 5630SMD Rigid Bar Light, Samsung Rigid Bar Light 5630
-
5630 Best LED Light Bar, 0.5w Per LED 5630, High LED Lumens Bar Light 5630
-
Flexible SMD5730 LED Strip 30LED 60LED 120LED DC12V 24V SMD5730 LED Strip Light Waterproof IP67 SMD5730 LED Bar Aluminum Profile
-
led strip light 5630 bar light, high brightness Samsung led light 5630 hard strips
-
SMD5630 72 Rigid Bar, 0.5W Epistar/SAMSUNG Chip LED Light Bar, 40 Lumen Each Chip Bar LED Light
Product Details
| LED Light Source | LED SMD5630 | Type | LED Bar Lights | |
| Input Voltage(V) | DC12V/24V | Lamp Power | 24W/m | |
| Lamp Luminous Flux(lm) | 2400 | Color Temperature(CCT) | 2700-7500K | |
| Working Temperature(℃) | -20, +60 | Working Lifetime(Hour) | 50000 | |
| Lamp Body Material | Aluminum Alloy | Certification | CE, CE | |
| Emitting Color | Other, White,Warm White,Cool White, White | Place of Origin | Guangdong, China | |
| Brand Name | Bright | Model Number | BG-1707-5630-60 |
Product Description
5630 60LEDs/m LED Bar Lights,Aluminum Housing LED Rigid Strip
FEATURES
1. Work voltage DC12V/24V
2. Working current ( one meter): 400mA/600mA
3. Standard length: 1meters/pc.
4. PCB Width: 10mm , 12mm
5. Rigid strip, cuttable every 3/6leds.
6. Available Color: White, Warm White.
7. White PCB are available.
8. SMD5630, 60LEDs/meter.
10. Sign chip or 3 chips LEDs are available.
11. Beam Angle: 120 degree.
12. Light decay: Less than 5% after 1000 hours constant work.
13. Protect range: non-waterproof or waterproof IP65.
14. Can be waterproof with silicon cover.
15. Can be waterproof with nanomaterials coating.
16. Life Span: 50,000-80,000 hours.
17. Hight Lumen:2400Lm/m
IP65 Waterproof 5630 LED Bar:
5050 led bar:
Specifications
Product NO. | LED TYPE | LED Qty. | Voltage | Current | Luminous Flux(lm) | Power | Color | PCB Material | IP Grade | View Angle | Size:mm |
BG-1701-3528-60 | SMD3528 | 60Pcs/m | 12V DC | 0.4 A | 300-350 | 9.6 W | Single color | FR-4 | No | 120° | 1000*8*4 |
BG-1702-3528-60 | SMD3528 | 60Pcs/m | 12V DC | 0.8 A | 290-335 | 9.6 W | Single color | FR-4 | No | 120° | 1000*10*7 |
BG-1702A-3528-60 | SMD3528 | 60Pcs/m | 12V DC | 0.8 A | 275-325 | 9.6 W | Single color | FR-4 | IP65 | 120° | 1000*10*7 |
BG-1703-5050-60 | SMD5050 | 60Pcs/m | 12V DC | 1.2 A | 840-870 | 14.4W | Single color /RGB | FR-4 | No | 120° | 1000*12*4 |
BG-1704-5050-60 | SMD5050 | 60Pcs/m | 12V DC | 1.2 A | 830-860 | 14.4W | Single color /RGB | FR-4 | No | 120° | 1000*12*7 |
BG-1704A-5050-60 | SMD5050 | 60Pcs/m | 12V DC | 1.2 A | 810-840 | 14.4W | Single color /RGB | FR-4 | IP65 | 120° | 1000*12*7 |
BG-1705-5050-72 | SMD5050 | 72Pcs/m | 12V DC | 1.45 A | 970-980 | 17.5W | Single color /RGB | MCPCB | No | 120° | 1000*8*4 |
BG-1706-5050-72 | SMD5050 | 72Pcs/m | 12V DC | 1.45 A | 930-950 | 17.5W | Single color /RGB | MCPCB | No | 120° | 1000*12*20 |
BG-1706A-5050-72 | SMD5050 | 72Pcs/m | 12V DC | 1.45 A | 910-940 | 17.5W | Single color /RGB | MCPCB | IP65 | 120° | 1000*12*20 |
APPLICATIONS
- Jewelry counter lighting
- Indoor decorative lighting and backlighting
- Emergency hallway lighting
- Auditorium walkway lighting
- Indoor/outdoor illuminated signs and advertisements
- Backlighting for larger size ad-signs
- Elegant interior decoration
- Nice accent lighting lamps
- Landscape outlines, etc.
- Signal lighting
