New design Aluminum LED Light Bar SMD5630,Samsung 5630 LED Bar Light,LED Rigid Strip 5630

Samsung led bar 5630,Samsung bar lights

LED Aluminum bar , widely used in jewelry, star hotel, high-end clubs, museum, professional windows, counters and other key lighting place, it is an alternative replacement to traditional old halogen and other light.

5630 led bar superiority:

1.High brightness, adopt high brightness SMD5630 as light sources

2.Well Radiates, PCB board and Out shell, all made with Aluminum materials, low heat and easy output

3. Low power and less light decay: energy saving can reach into 90% for you

4. Without any radiation, non-UV / Infrared, and heat radiation, environmental friendly

5. Outer covering with aluminum alloy, and surface anodizing,very unique design with high level

6. Install easy, the unique structural desing, easy installation, all person not professional do well

5630 led bar specifications

5630 led bar features

1.Item No.: BG-1707-5630-60

2.LED type: High brightness SMD5630

3.Color available: White, Warm white, Cold white

4.Color temperature: White : 6000~6500K, Warm white:2900~3200K, Cold white: >8000K

5.Viewing Angle: ≥120°

6.Product size: 1000*14*7mm

7.LED quantity: 60leds

8.Luminous Flux: 35~40lm/led, 2050-2300Lm per meter!

9.Voltage /Power: 12VDC , Max 30W/m

10.Waterproof : IP65

11.Working temperature:- 35°C~+60°C

12.Storing temperature: -40°C~ +70°C

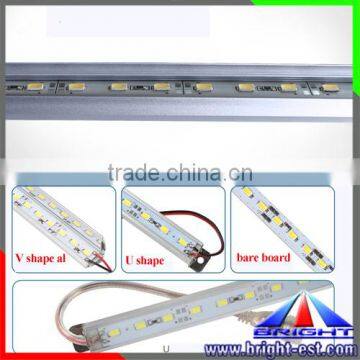

5630 led bar picture:

Application places

Our company:

5630 led bar matters:

1. Supply voltage of this product is 12v; never connect to other high voltage.

2. Never connect two wires directly in case of short circuit.

3.Lead wire should be connected correctly according to colors that connecting diagram offers.
