High Accuracy Handheld Ozone Gas Leak Detector 0-100ppm Ozone Sensor

Product outline

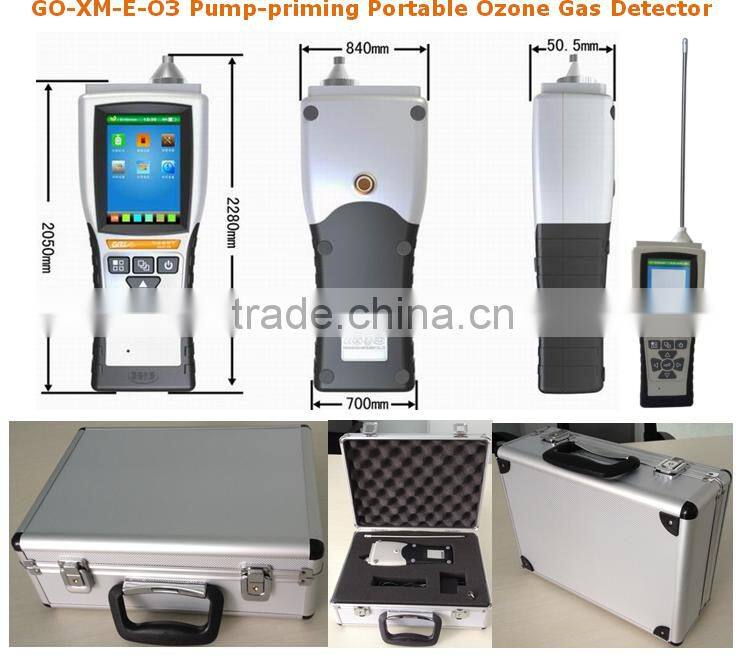

GO-XM-E-O3 Pump-priming Portable Ozone (O3)

Gas Detector is a continuous monitoring of a variety of single gas detection equipment.This

product is suitable for environmental monitoring including the cold storage,industrial production

processand other harmful gases working environment,which can effectively protect the health

and safety of staff is not compromised.

Features

1.Smart probe design, calibration easy;

2.Maintenance more convenient in the future;

3.Fault, Warning, operator error, alarm will be smart tips;

4.Built-in CF calibration coefficients (VOC measurements only valid);

5.With audible alarm, visual alarm function, the status bar also displays alarm status;

6.Full-color 3.5-inch TFT screen, color LCD display and intuitive;

7.Can be both digital and curve display of gas concentration in two ways;

8.With USB communication port, you can speed 9600 bytes to communicate directly with the computer;

9.With test record function, can store a month's measurement data and instrument or computer

can view the data;

10.With alarm recording function, you can record the last four times the alarm time and type;

11.With calibration record; can record the last four times the size of the calibration time span;

12.High-capacity lithium battery-powered, rechargeable, low battery automatic shutdown;

13.Can be set high reported, underreporting, TWA, STEL, shutdown time, pump speed, etc.;

14.Indicate way: LCD display real-time concentration, LED, buzzer alarm.

Product Technic Data

1. Power supply: Lithium battery (4.2V/3000mAh)

2. Operating Current: normal current: ≤150mA; Alarm current: ≤200mA

3. Operating environment:

Temperature: -40OC-70OC; Relative Humidity: 15%-95%, non-condensing

4. Storage environment:

Temperature: -20OC-60OC; Relative humidity: ≤90%, no condensation

5. Housing material: PC

6. Dimensions: 228*84*50.5mm

7. Installation: Handheld/Stand-in

8. Weight: 0.55kg

9. Response time: T90<10S

Applications

They are widely used in petroleum chemical industry,power industry,water treatment industry,

the tobacco industry,pharmaceutical industry,food industry,coal,metallurgy,municipal gas,

environmental monitoring and other occasions on-site testing.

Can be measured gas species: CH2O, TVOC, CO, H2S, NO2, NO, SO2, CL2, NH3, H2, PH3, O3,

F2, HF, HCL, HBR, C2H4O, COCL2, SIH4, CLO2, HCN, C2H4, SF6 and combustible gases.

Product Picture

Similar Models

Product Line

Trade terms

Payment method

Paypal,WU,T/T,etc

Packaging

1.Inner layer: plastic bag

2.Middle layer: EPE(Expand aple poly ephylene)

3.Outer Layer: carton/composite wooden cases

Prompt delivery

1.Shipping way:by sea,by air or by express(DHL,FedEx,UPS,TNT etc)

2.3-7 days for sample order;

3.10-30 days for mass production order.
