Product Details
| Place of Origin | Guangdong, China | Brand Name | globalozone | |
| Model Number | GO-AC |
Product Description

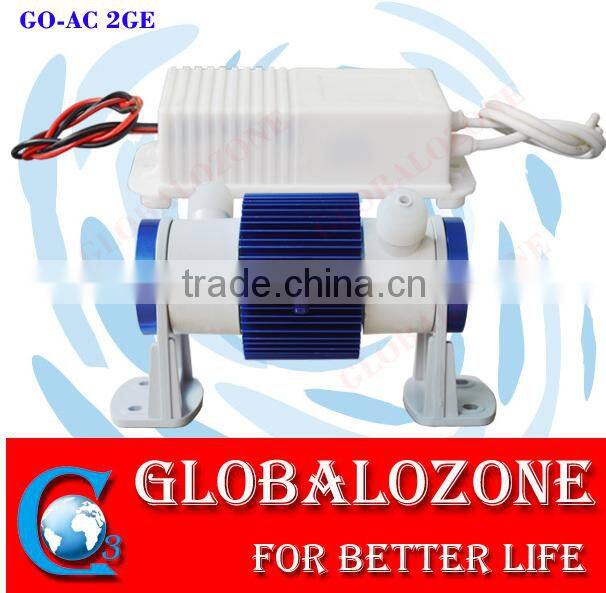

Factory price 2g 3g 5g 6g corona discharge ceramic tube ozone generater
***************************************************************
Features:
1. It is the patent product of our company.
2. Ozone output: 2G/Hr 3G/Hr, 5G/Hr, 6G/Hr
3. Using with adjustable electric card, that’s Ozone output could be regulated from 20% to 100% based customer’s demand.
Or using with enclosed electric card, which is best for water proof.
4. We are using imported ceramic powder for ceramic ozone tube; SS316L internal electrode; PVDF material connectors for ensuring several years running without ozone leakage.
5. Internal & external electrodes are both using with aluminum heat sink for heating dissipation.
6. Extremely high ozone concentration, about 28- 68Mg/L for different pure oxygen flow, different working condition.
7. Low power consumption, power consumption rate of 8~10KW.h/kgO3.
***************************************************************
Specifications
Item | Unit | GO-AC | ||||||||||
2GE | 2GA | 3GE | 3GA | 5GE | 5GA | 6GA | ||||||
Oxygen feed flow rate | LPM | 0.5-2 | 1-3 | 1.2-3 | 1-2.5 | |||||||
Ozone concentration | Mg/L | 50.3-28 | 65-28 | 60-32 | 50-39 | |||||||
Ozone output | G/Hr | 1.5-3.36 | 3.9-5.04 | 4.32-5.76 | 3-5.85 | |||||||
Power | Kw | 0.040 | 0.050 | 0.080 | 0.085 | |||||||
Output frequency | KHz | 7-15 | ||||||||||
High voltage output | V | 3600V Peak to Peak | ||||||||||
Power supply dimensions | mm | 165×65×52 | 200×75×83 | 165×65×52 | 200×75×83 | 165×65×52 | 200×75×83 | 215×87×85 | ||||
Location of mounting holes of power supply | mm | 152(φ5) | 190.5×57 | 152(φ5) | 190.5×57 | 152(φ5) | 190.5×57 | / | ||||
Cooling method | / | Air cooling for internal and external electrode | ||||||||||
Fitting size for air & ozone | mm | IDφ6, EDφ8 | ||||||||||
Ozone output adjustable range | % | / | 20-100 | / | 20-100 | / | 20-100 | |||||
Dew point | °C | -45 | ||||||||||
Line power supply | V/Hz | 110/220V 50/60Hz | ||||||||||
Ozone tube dimensions | mm | 162×60 | 182×60 | 200×60 | 227×60 | |||||||
Mounting hole foot print of ozone tube | mm | 140×28(φ5) | 160×28(φ5) | 177×28(φ5) | 204.5×28 (φ5) | |||||||
Ozone tube weight | Kg | 0.50 | 0.53 | 0.56 | 0.65 | |||||||
Power supply weight | Kg | 0.59 | 0.76 | 0.59 | 0.76 | 0.59 | 0.76 | 1.10 | ||||
Noted:
Working conditions: Ambient temperature:20°C, Oxygen concentration: >99%, Dew point: >-45°C
