150W Stainless Acrylic HQ Laser Cutting Machine
- Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High Speed HQ-1390 Co2 Metal Wood Hybrid Laser Cutter Machinery for Paper Price
-
High Speed HQ-1390 Co2 Metal Wood Hybrid Laser Cutting Machine for Paper Price
-
Low Cost HQ-1390 Co2 Metal Wood Hybrid Laser Cutting Machine for Paper Price
-
Hot Sale HQ-1390 Co2 Metal & Nonmetal Hybrid Laser Cutting Machine for Paper Price
-
CE,FDA Certification HN-WS1350 Acrylic Edge Polishing Machine
-
CE,FDA Certification HN-WS1350 Acrylic Diamond Edge Polishing Machine
Product Details
| Condition | New | Laser Type | CO2 | |
| Applicable Material | Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood | Cutting Thickness | 30mm(acrylic) 2mm(metal) laser cutting | |
| Cutting Area | 1300*900mm | Cutting Speed | 0-64000mm/min | |
| CNC or Not | Yes | Cooling Mode | Water Cooling | |
| Control Software | Laser cut 5.3 | Graphic Format Supported | AI, BMP, DWG, DXF, PLT, Other, AI, BMP, DWG, DXF, PLT, GIF/JPEG/TGA/TIFF/CDR | |
| Place of Origin | Guangdong, China | Brand Name | Hanniu laser cutting machine | |
| Model Number | HN1390 | Certification | CE, Other, CE, FDA | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
150W stainless acrylic HQ laser cutting machine
CONTACT ME
Address: Buiding 2 WangGang Changshui Industrial Baiyun District Guangzhou China
SALES MANAGER : MIKE
TEL:+ 86 13922247841 whatapp:+86 13726710301 QQ:1992527358 Skype: michalelee8
Web: http://hanniulaser.en.china.cn/

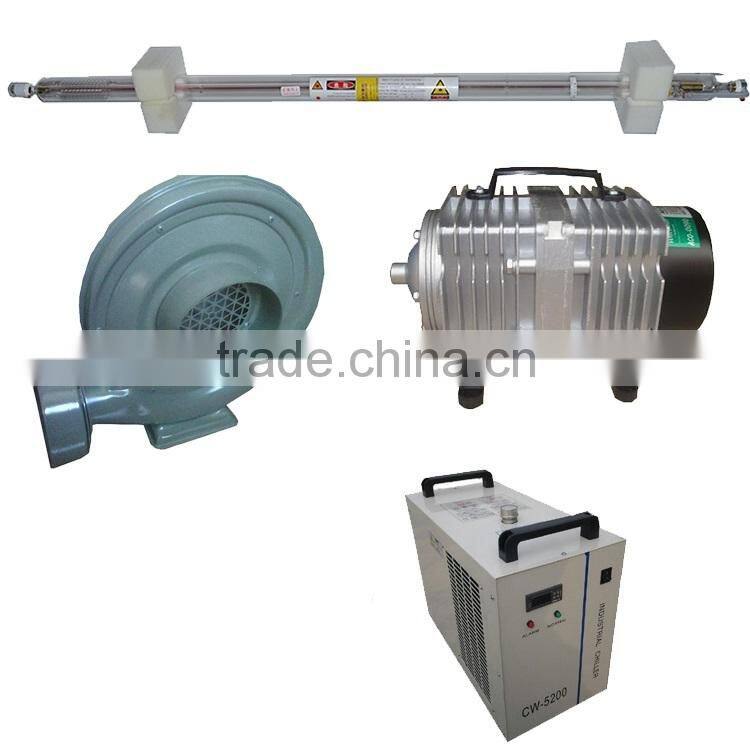

The parts of the laser cutting machine
laser cutting machine comes with parts
Specifications of the laser cutting machine
Control system: | DSP control system |
Laser type: | 150W CO2 glass laser tube |
Working area: | 1300*900mm |
Laser power: | 80w/100w/120W/130w/150w/180w |
Pass-thru doors: | Allow to cut extremely long materials(max thickness 35mm) |
Interface: | USB connection ( Work in Windows XP, 2000,Vista,7) |
Memory: | 1Gb Buffer Memory |
Driver system: | Stepper motor |
Auxiliary equipments: | Exhaust-fan, air-exhaust pipe |
Laser Tube life hours: | 8000 Hours |
Repeating precision: | ±0.05mm |
Moving system: | CNC controlling units |
Cooling mode: | Water-cooling and protection system |
Engraving speed: | 0-64000mm/min(stepless speed regulating) |
Working voltage: | AC110/220±10% 50/60Hz |
Whole power: | <1250W |
Operating temperature: | 0-45°C(32° - 113° F) |
Operating humidity: | 5%-95% |
Controlling software: | Original hanniu software |
Graphic format supported: | BMP,PLT,DXF,DST,JPG,CDR,HPGL,PNG,DSB,GIF, TIF,TGA,PCX |
Compatible software: | Auto CAD, CoreIDraw 12 |
Resolution: | User controlled 100-500DPI(standard model), up to 1000DPI(high resolution attachment) |
Machine dimension: | 1900*1500*1300mm |
Packing dimension: | 2200*1600*1500mm |
Net weight: | 450kg |
Gross weight: | 650kg |
Packing: | stronger wooden case |
Feature Description
(1)The software can support AutoCAD/CorelDRAW/CAD/CDR and other graphical software
(2)The USB interface can support heat play & pluy
(3)Quick data transitting
(4)Chinese&English edition liquid display can make it easy for user to operate
Standard accessories
1) 1×Air pump for Air Assist ( for blowing off debris as the laser engrave or cut)
2) 1×Exhaust fans with Tube ducts (install inside machine)
3) 1×Industrial chiller
4) 1×USB Cable (connecting PC and laser)
5) 1×DVD (including software, guiding videos etc)
6) 2×Power cables
Optional accessories
1) High resolution(for engraving extremely high quality photos, even 3D photos).
2) Rotary (for engraving round items).
3) New red dot design(make the laser beam visible).
4) Motorized up and down worktable.
Guarantee
The laser machine guarantee for 1year except laser tube
80w laser tube guarantee for 9months
120w laser tube guarantee for 6months
150w/180w laser tube guarantee for 9months

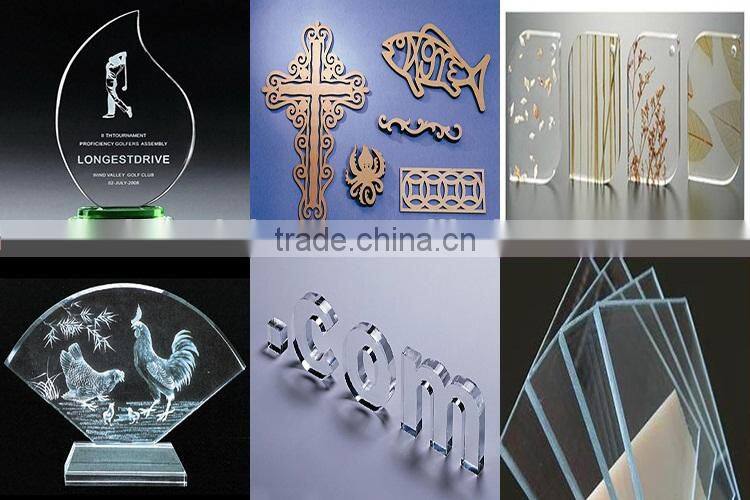

Samples of the macine
Applicable Matericals of laser cutting machine
Wood,paper,leather,cloth,organic glass,resin,acrylic,wollens,plastic,rubber,ceramic,tile,crystal,bowlder,bamboo,non-metal etc
Applicable Industry
Cloth embroide fabric toy,fabricture,glove,bag,leather,advertising,decoration,electric product,rubber,acrylic product,middle density,board etc non-metal sheet precision cutting &engraving.
About us
GUANGZHOU HANNIU LASER MACHINERY CO.,LTD comes to the development of the industry for many years, with advanced technology and talents. we sell our products to all over the world, we enjoy the high repulation in this area.
We work hard to provide customers with the most satisfactory product quality and thoughtful service.
We hope to develop together with you hand in hand. Your satisfaction is our greatest pursuit.
We sincerely welcome you come to visit our factory.
Certificates
welcome to our factory
The exhibition of canton fair
Customers of our company
your satisfieds is our happiness
sell the machine with our responsibility, offer the good after sell services
Package
we pack it in strong wooden case
Thank you for your visting our website.
Any interested, Please contact us!
With your attention
question and answer
1: how was the machine guarantee?
we offer you one year guarantee
2: IF machine have problem with the guarantee, how to fix this problem?
we have the after sell department, machine have the problem, we will fix it through from the internets.
we check with you by internet face to face, then if machine part have problem, we exchange the new parts for you,
and help to install it.
3: how can i use the machine, if you are the new buyer?
we can teach you in the factory face to face, it only take you two hours to learn the using, if you have no time, need to come back learn, we have the english manual book and machine working vedio, step by step. we can also teach you through Whatsapp or Skype
4: how you control your quality?
before we ship our machine to another country, we will test it well, let it go through every of the corner, check the accuracy.
we will let it move two days without stopping. we will let the machine go through a complicative test, like cutting the strong thing, and test its speed, and so on.
5:If machine real have problem can not fix, how can we deal with this problem?
we can send a man to your country, but you need to pay for the fare.
