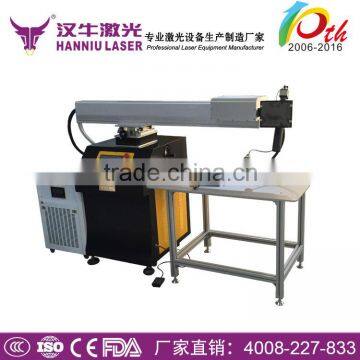

Laser Welding Machine for Advertising Logo

FOB Price

US$ 5,000 - 6,500 / Set

1 Set(Min. Order)

Port Guangzhou port
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Guangdong, China
Brand Name	HANNIU LASER	Model Number	H-TF-300
Single Pulse Energy	1-200Hz(Continuously adjustable)	Pulse Width	0.1-20ms(Continuously adjustable)
Wavelength	1064nm	Focal Spot Diameter	0.3mm
Max. Output Power	300W	Dimensions	17007401300mm
Usage	welding	Power(W)	300W
Certification	CCC, Other, CCC, FDA	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Welcome to contact professional sales:Mora zheng

Mobile:+86-13922242690. QQ:2851679357.

Viber/Whatsapp:+8613922242690

Working Principle

Laser welding, occurs when the laser is used as an intense energy source to selectivey heat materials to a point between their melting and vaporizing temperature.Once molten,the materials are allowed to alloy and then re-solidify in a controlled

atmosphere. The result is a reliable, oxide-free weldment.By adjusting various

parameters such as the laser energy and focal point position,one can create

weld ratio ranging from wide and shallow to narrow and deep. In most cases the welded part geometry dictates this ratio.Laser welding offers a variety of benefits over other types of welding: deep penetration of precise narrow welds, small heat affected zone, low heat input, fast weld times,minimum part distortion, no secondary processing and high repeatability.

Specifications

Specification form of H-TFZ300 yag 300w laser welding machine used

Model	HTF-300
Laser power	300W
Cooling method	Water-cooling
Laser medium	Nd:YAG
Laser wavelength	1064nm
Welding minimum molten pool	0.1mm
Welding depth	1mm
Pulse width	0.1-20ms(continuously adjustable)
Pulse rate	1-200Hz (continuously adjustable)
Viewing system	CCD camera and red light positioning
Power	≤7KW
Power source	220V/50Hz/40A
Table format	1000x800mm

This is only for your reference.Speed may be different as for different figures.

It should be based on practical test results of this laser welding machine.

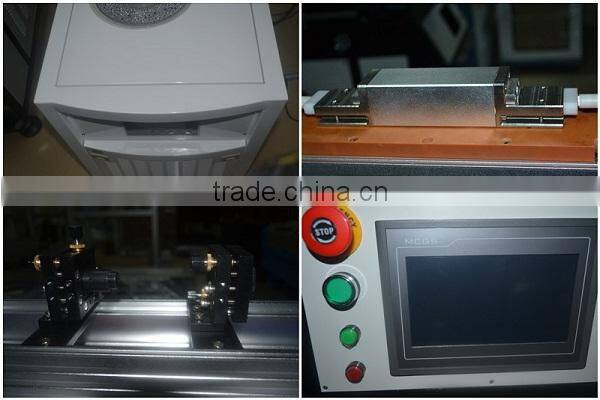

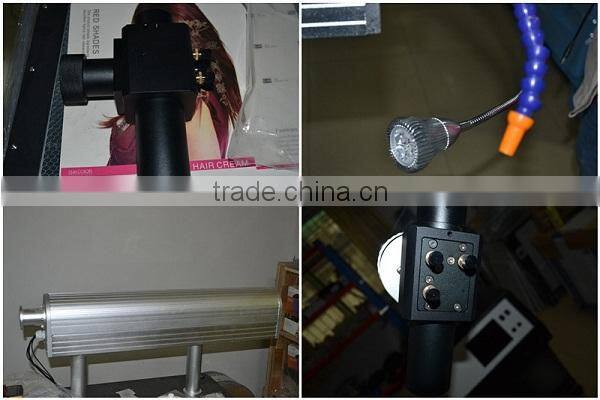

Detail pictures

Detail pictures of laser welding machine used

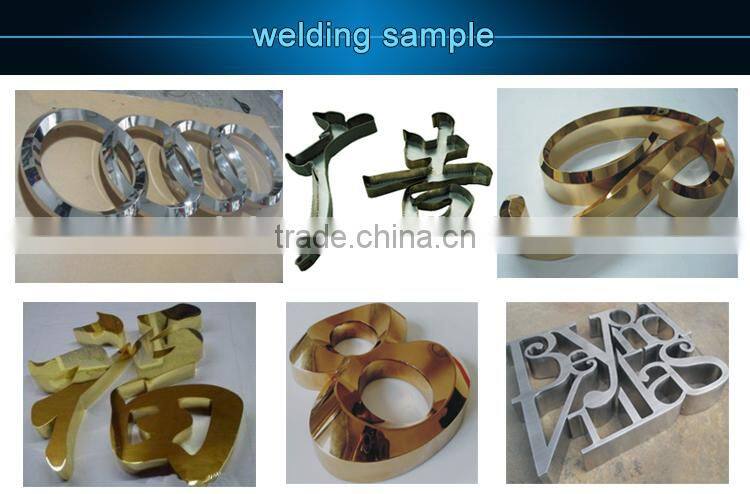

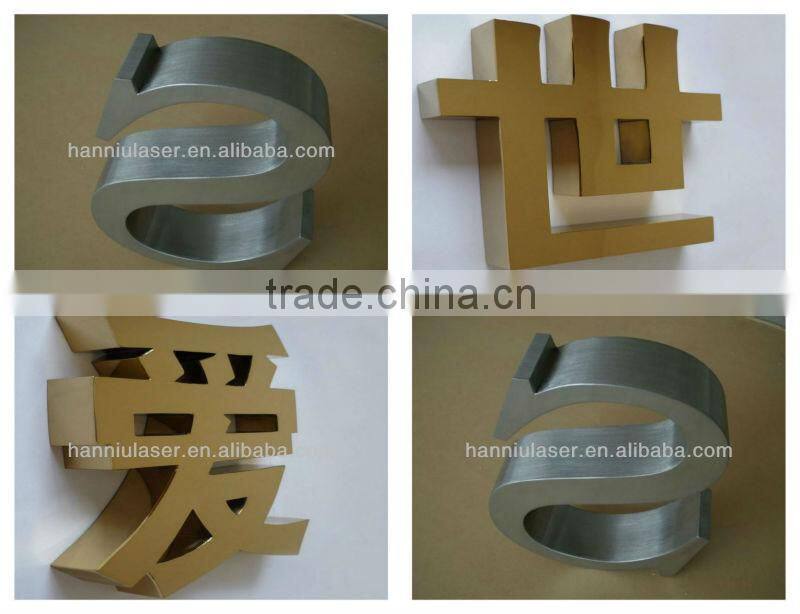

Samples

Samples of TF-300 laser welding machine used

good jewelry laser welder price

Application

Brief Introduction for jewelry laser welder

Suitable for welding thin plates;3D work bench and the master unit are integrated;

This machine can weld space curve,LED metal,all kinds of words.Applied in medical,electronics components,circuit boards,IC,battery,instrument, etc.

Suitable materials and application of laser welding machine

Suitable for welding kettle,vacuum cup,stainless steel bowl,sensor,tungsten wire,

high power diode (triode),aluminum alloy,laptop shell,mobile phone battery,door

handle,mould,electric apparatus fittings,filter,nozzle,stainless steel products,golf head,zinc alloy artworks.

Weld point,straight line,circle,square or any plane graphs drawn by AUTOCAD;weld vertical track.

Advantages

Our advantages for jewelry laser welder

1.8 electricity capacitor.Srong power supply.

2.Good light intensity.

3.High voltage,very stable.

4.High precision extended light path,CCD camera to help position.

Our Services

♦ This laser welding machine warranty for one year. We will offer good parts for free if your parts are broken during warranty,which was not caused by artificial.

♦ Our technican can offer free training in our workshop.

♦ Our technican can go to your place and offering service if you want.

♦ We are no holiday and vacations for your after-sale problems.
