Home > Products > High Quality Quartz Rod > 1 mm Optical Fiber Glass Rod

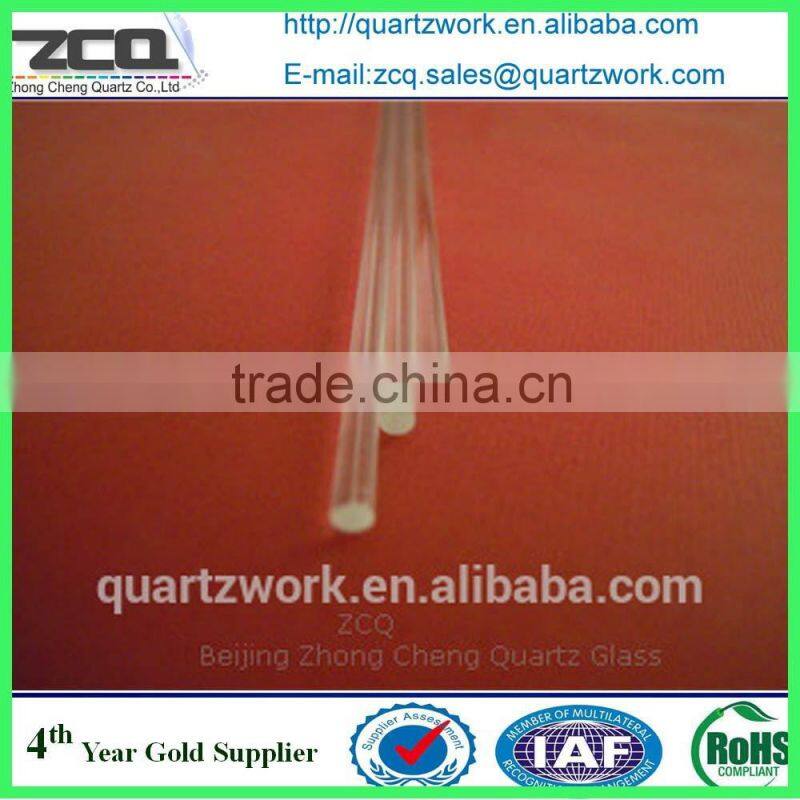

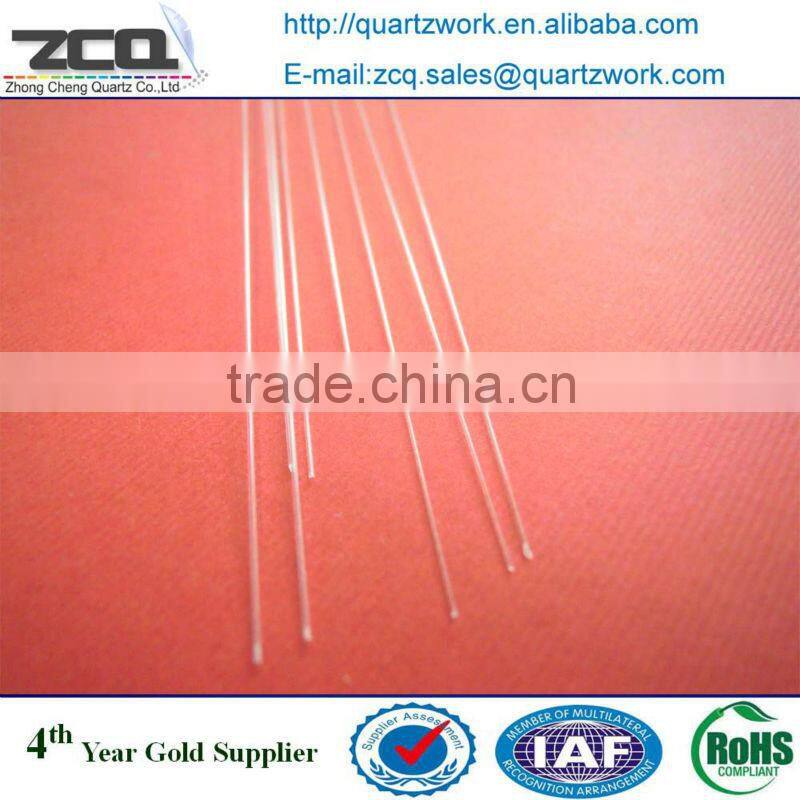

1 mm Optical Fiber Glass Rod
- Tianjin Port
 - T/T L/C D/P D/A Credit Card

You May Like
-


Semicircle Quartz Rod Glass Optical Lens for Linear Light
 -


Clear Square Capillary Quartz Glass
 -


Square Transparent Quartz Glass Heating Rod OEM Service Quality Choice
 -


Square Capillary Quartz Heating Rod
 -


Clear Square Capillary Quartz Glass Rods For Selling
 -


OD=5mm Polishing Quartz Glass Rods With Cone-Sharp On The End

Product Details
| Place of Origin | Beijing, China | Brand Name | ZCQ | |
| Model Number | Clear Quartz Pipe | Application | Optics, Electronics | |
| Surface Treatment | Smooth Surface | Dimensions | Customer -design |
Product Description
Quartz Tubing: Clear Or Unclear
Dimension :Φ1mm
Tolerance: +-0.02mm-+-1mm
Length: 100mm-1000mm
 End Finish:


 Flame Polished


Service
At ZCQ, we are committed to providing our customers with excellent precision optical service.
We are able to fabricate custom-designed optical glass products with
provided materials or the OEM service, if that is what you require.
ZCQ Offers Two Major Categories:
1. Quartz Products Series
2.Optical Glass Products Series
Manufacturing Features:
1. Customer Designed Products
2. Different Precise Levels for Different Products
3. Good Quality
4. No Minimum Order
5. Timely Delivery and Various Transport Channels
Characteristics and superiority

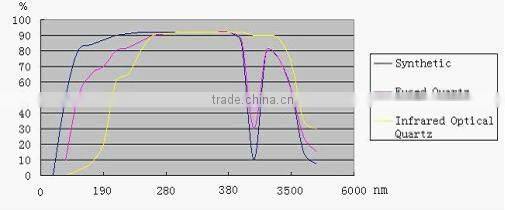

Optical Property:
Based on differences of Optical Performances and Purity, ZCQ usually Supply three basic Quartz Materials:
Fused Quartz, Synthetic Fused Silica (UV) and Infrared Optical Quartz

Chemical Property:
NAME  | UNIT ×10-4%  | |||||||||||||||
Al  | Fe  | Ca  | Mg  | Yi  | Cu  | Mn  | Ni  | pb  | Sn  | Cr  | B  | K  | Na  | Li  | OH  | |
Fused Quartz  | 16  | 0.92  | 1.5  | 0.4  | 1.0  | 0.01  | 0.05  | <0.3  | <0.3  | <0.3  | <0.3  | 0.2  | 1.49  | 1.67  | <0.3  | 400  |
Synthetic Fused Silica  | 0.37  | 0.31  | 0.27  | 0.04  | 0.03  | 0.03  | 0.01  | <0.03  | <0.03  | <0.03  | <0.03  | 0.02  | 0.5  | 0.5  | <0.03  | 1200  |
Infrared Optical Quartz  | 35  | 1.45  | 2.68  | 1.32  | 1.06  | 0.22  | 0.07  | <0.03  | <0.03  | <0.03  | <0.03  | 0.3  | 2.2  | 3  | <0.3  | 5  |
Mechanical Property:
Mechanical Property  | Reference Value  | Mechanical Property  | Reference Value  |
Density  | 2.203g/cm3  | Refractive Index  | 1.45845  |
Compressive Strength  | >1100Mpa  | Coefficient of thermal expansion  | 5.5×10-7cm/cm.°C  |
Bending Strength  | 67Mpa  | Hot work temperature  | 1750~2050°C  |
Tensile Strength  | 48.3Mpa  | The temperature for a short time  | 1300°C  |
Poisson's Ratio  | 0.14~0.17  | The temperature for a long time  | 1100°C  |
Elastic Modulus  | 71700Mpa  | Resistivity  | 7×107Ω.cm  |
Shearing Modulus  | 31000Mpa  | Dielectric Strength  | 250~400Kv/cm  |
Moths Hardness  | 5.3~6.5(Moths Scale)  | Dielectric Constant  | 3.7~3.9  |
Deformation Point  | 1280°C  | Dielectric absorption coefficient  | <4×104  |
Specific Heat(20~350°C)  | 670J/kg °C  | Dielectric loss coefficient  | <1×104  |
Thermal Conductivity(20°C)  | 1.4W/m °C  | Typical Mechanical Property of Fused Quartz  | |
ZCQ is a full value-added distributor in custom quartz products manufacturing. We believe customers should be regarded as root of the trees if a company desires flourishment and fruits. Our mission is to provide a comprehensive suite of services related to meet your needs. We go out of our way to ensure that you receive the service and personal attention you deserve.
EXW Price- In 2014, we ZCQ manufactured and exported USD$600,000 quartz products. Importers saved USD$350,000 than purchasing from trading company.
ISO 9001and ROHS Certified –We are ISO 9001 and RoHS Certified, and will provide any certifications you need about the quality of our products. Our company founding and manufacturing history can be dated back to 1998.
Quotes in 24 Hours or Less– Each Enquiry is replied within 24 hours. Individual sales representative is also pleased to answer your phone call within or out of office time. Please send email us in case international phone call cant be reached.
Low Order Minimum – Just $35 for you to order any group of quartz products in or out of stock.
Custom and prototyping are welcome–We welcome custom quartz products to meet your exact specifications. With a team of senior quartz experts, we can also offer advises on product design for free.
Prompt Lead TimesFor products in stock, product will be delivered in 1 or 2 days.For custom products, it takes 5-10 days. No matter what type, we try to understand and support customer’s time requirement.
On-Time Delivery In 5-7 or 10-20 days, Product parcel shall arrive at assigned destinations.
Shipping methods via China post(15-20 days) Epacket (10-15days) EMS(7-10days) Fedex(5-7days) DHL(5-7days)
Free Samples We are pleased to send free samples to customers whoever interested in business and cooperation with us. Shipping charge shall be paid by customers from the other part of the globe.
Company tour invitation 1 hour from international meeting center of Beijing, ZCQ invites guests to visit our company after long day meeting and get relaxed in nature. Our company is also sitted in arms of mountains and river.
With over 70 personnel in sales and support alone, ZCQ is ready to handle even the most difficult request. We hope you will have the most content quartz products buying experience possible and can focus on your core strengths.
Questions and help
If you have any questions concerning products, please call us at 86-10-89770383 ,86-13241781622 or email us .
Order Acceptance and Pricing
ZCQ will provide a Pro Forma Invoice as confirmation on customers’ order.
Production will be arranged in line with technical specification within the invoice once payment received .
Payment Terms
Advanced T/T Credit Card Payments: ZCQ accepts Visa, MasterCard, and American Express.
We also accepts paypal payment .
Shipping & Handling
Freight Policy: If you have a freight collect account with any shipping carrier, please tell us in advance.
Or we will advise you a most economic method of shipment before checkout.
Return/Guarantee Policy
A Return Merchandise is to be returned on the original shipping form. Returns may be subject to freight. Credit will not be issued until the return has been received and inspected by ZCQ. Please send us an email and include your order number.
