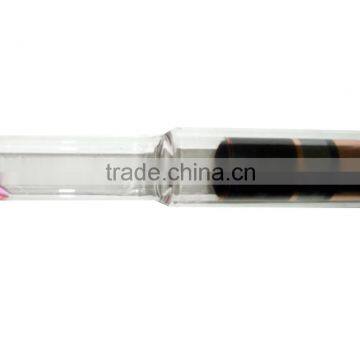

all glass double vacuum sun collection heat pipe

FOB Price

US$ 3 - 3.2 / Piece

500 Pieces(Min. Order)

Port QINGDAO

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	GuangPu
Model Number	58-40mm/1800mm.	Type	Vacuum Solar Collector
Application	Water Heater	Pipe Material	Glass

Product Description

Specifications

1. High pressure withstanding ability
2. High absorption efficiency
3. CE ISO9001:2008
4. Stable and ageing-resistant coating

These patented tubes offer faster heating and lower heat loss since there is an exchange of steam instead of water. Using gaseous diffusion instead of liquid effusion prevents the formation of ice and residue in temperatures as low as -40?C.

All-glass heat pipe is manufactured by Guangpu Solar Energy Project Co.,Ltd, a leading manufacturer of all-glass evacuated solar collector tubes in China. There are two vacuums in an all-glass heat pipe, the one in the inner tube and the one between the inner tube and the outer tube. The inner tube absorbs the solar energy, which is transferred to heat. The temperature in the inner tube rises up and the liquid in the inner tube evaporates. The gas rises up to the condenser where it transfers the heat to the water in the tank, so the gas loses its heat and changes into liquid which then flows down to the bottom of the tube because of the gravity. Such a circulation will continue as long as the sun shines. Here is the specifications of All-glass heat pipe:

All-glass heat pipe
Manufacturer	Guangpu Solar Energy Project Co., Ltd
Structure	All-glass coaxial twin-glass tube
Material of tube	Borosilicate 3.3
Outer tube diameter(mm)	Φ47±0.7
Outer tube diameter(mm)	Φ58±0.7
Inner tube diameter(mm)	Φ37±0.7
Inner tube diameter(mm)	Φ47±0.7
Outer tube thickness(mm)	1.6
Inner tube thickness(mm)	1.6
Length(mm)	Φ47*1500
Length(mm)	Φ58*1800
Length of condenser(mm)	125mm±5mm(Φ47*1500)
Length of condenser(mm)	145mm±5mm(Φ58*1800)
Material of coating	SS-AlNx/Cu
absorption efficiency	0.90-0.95(AM1.5)
Launch ratio	0.04-0.06(80°C±5°C)
Degree of vacuum between the outer and the inner tube	P≤1.0×10-3 (Pa)
Degree of vacuum in the inner tube	P≤3.0×10-3 (Pa)
Average heat loss coefficient	ULT =0.4~0.6W/(m2°C)
Stagnation parameter	260-300m2.°C/KM
Hail resistance	Hail diameter≤Φ25mm
Solar radiation under stagnation	2.9~3.2MJ/m2(Φ47mm) 3.7~4.2 MJ/m2(Φ58mm)
