Home > Products > cnc router Machine > QL-1212 CE Characters Cutting Mini Cnc Router

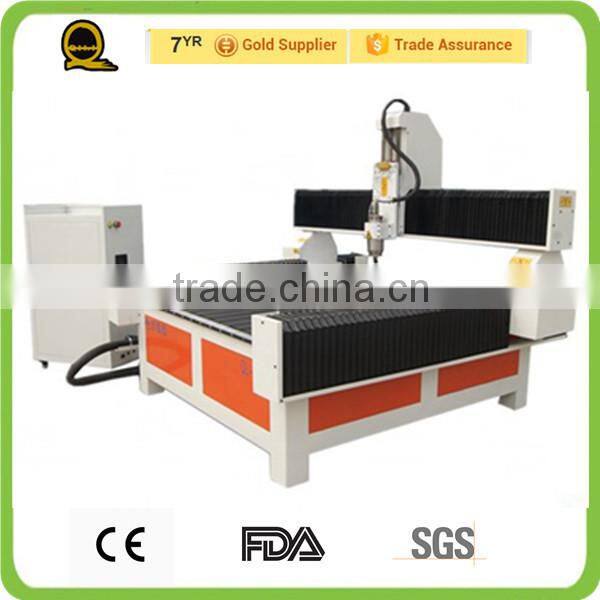

QL-1212 CE Characters Cutting Mini Cnc Router
- Qingdao Tianjin Shanghai port
- T/T L/C D/P D/A Credit Card
You May Like
-
Vacuum Table Cnc Router Machine the Small Business QL-1325 -II Joinery Cnc Router
-
QL-1325-1 Hot Sale High Quality Science Working Models
-
Cut & Engrave Advertisement Materials Cnc Router Engraver Machine Carving Wood,MDF,Aluminum,stone
-
Engraving Machine QL-1200 Equipment for Small Business at Home With Rotary
-
2015 Jinan High Quality T-slot Table 6090 Cheap Price Mini Ball Screw 3 Axis Cnc Carving Machine Router
-
600*900mm Material for Nameplates Engraving/typical Sewing Machines China
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | QiLi | |
| Model Number | QILI 1212 CNC advertisement cnc router | Voltage | AC220V,50HZ | |
| Power(W) | 1.5KW | Dimension(L*W*H) | 1200*1200*120 | |
| Weight | 350kg | Certification | CG SGS | |
| Warranty | One year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Advertising 1212 CNC router machine for brand
Advertising series is designed for engraving and cutting most advertising material with various application and reasonable price. High precision engraving meets the diverse needs in adverting industry.
Basic Information
Table Size | 1650x1650mm |
X, Y, Z Traveling Area | 1200mm*1200mm*120mm |
Table Structure | steel structure lathe bed and T-slot of sectional material |
X Y Transmission |
TBI Ball Screw
|
Z Transmission | TBI Ball Screw |
X Y Z Guide rail | Three axis circle |
Spindle Power | 1.5 kw water cooling spindle |
Max.Spindle Speed | 24000 rpm/min |
lding Speed | 5mm/min |
Working Speed | 3mm/min |
Processing Accuracy | ±0.05mm |
Reposition Accuracy | ≤0.02mm |
Driving System | stepper motors |
Command Language | G Code |
Control System | NCSTUDIO |
Working Voltage | AC220V, 50HZ |
Net Weight/Gross Weight | 230KGS / 350KGS |
Package Dimension | 1820mm*1730mm*1400 mm |
Standard accessories:
(01) User Manual (CD in English Version)
(02) NCSTUDIO
(03) Communication cable
(04) Water pump for Spindle, Water tank, Water pipe head
(05) Power cable: 3 pieces
(06) Tool case : 1 set
(07) Wrench: 1 set
(08) Collet: 2 pieces
(09) Other tools
Cutting Tools | One box of ordinary Tools, including 12 sharp tools, 5 cutters ( 3 of 3.175, one of 4mm and one of 6mm),a box of woodworking tools(5 cutters.).One bed-cleaning Tool and one V-Tool (90 degrees, diameter of 6mm and breadth of 32mm). Tool holders or edge case matching the tools. |
Other Tools | 1.two wrenches (22,30 style)and one hexagon wrench 2.two photoelectric switches 3.six sets of clamps 4.one water pump, one bucket 5.one data line (connected with computer), |
Software | Type3/Artcut & Artcam in Windows 98/2000/XP/7. one PCI card, English User Manual, warranty card and |
Product Features

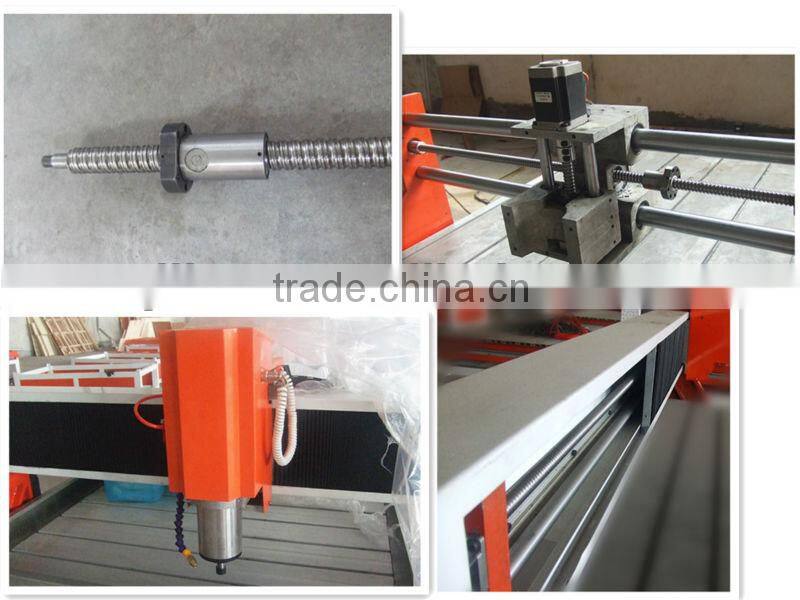

.Double-net ball screws from German offer high working accuracy.
2.Square linear guide tracks provide large loading capacity.
3.Restoring function enable the machine continue to work after suddden stop, such as accident, tool breaking.
4.Sample made out is not only delicate without serrature, the bottom is also is smooth and in high edge sharpness.
5.Square guides on axis Y is optional for high accuracy request in large size material.
Scope of application
1.Advertising sign making, plastic molding,characters cutting, LED light box molding ect.
2. For most advertising material working.
Certificate
These certificates can show our product's quality and you will be pleased with it.
Our factory
We have own factory so that you needn't there are on enough machine. Besides, we can according to your require produce machine. Welcome to our factory, you must to be satisfyed with our product.
Inventory
cnc machine
Package
Our team
Our group is very excellent and we can speak English well so that you can ask any question about machine to us.
Exhibition
We have took part in many exhibitions recent years and maybe we met each other if you take it every year.
Guarantee&Aftersales Service:
1)Guarantee for one year
2)24-hour technical support by email or phone
3)User-friendly English manual and video CD for machine using and maintaining
4)Jinan Hongye CNC Machine Co.,Ltd provides free operation training service in Hongye factory.
