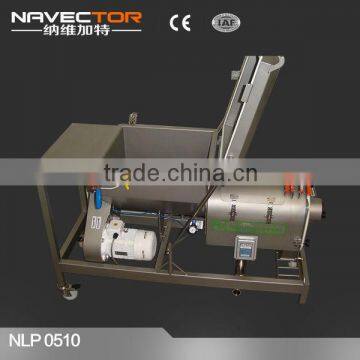

"Chocolate tumbler segregator "

Primary competive advantages:

a. Brand-name parts: Navector

b. Country of origin: China

c. Gurantee/warranty: 1 year

d. Packing: Wooden packing. Special fumigation-free wooden

material. OR according to your requirement.

e. Price. We promise a factory price for each machine.

f. Product features: 1. Dust-proof, heat-proof, oil-proof, explosion-proof.

                                   2. Green, Environment, Performance.

g. Product performance: screening rate can arrive to no less than 95%.

h. Prompt delivery: 15days

i. Services: ±2% spare parts.

j. Small order accepted.

Model

NVS-1000

Diameter

970 mm

Layer

1

Mesh

1mm

Material

SUS304 and Q235A

Mesh material:

SUS304

Reference capacity(for sand)

2 t/h

Feature:

Dust-proof, oil-proof, heat-proof

Low carbon, energy-saving, environmental

Consumption:

Low

Amplitude

3-5 mm

Phase

3

Voltage:

110V/220V/240V380V/450V

Power:

0.75kw

Frequency:

50 or 60 HZ

Protection grade:

IP55 or IP 65

Working environment

≤40°C. ≤ 1000 m

Noise:

65-70 dB

Way of working

Continuation

Screening ratio

≥95%

Warranty:

12 months

Characters and usage:

a. It absorbs the advanced technology from domestic and overseas, and adopts

  senior processing technic

b. It is a kind of high-precision screening and filtering machine

c. The vertical vibrating motor is the vibrating power of machine

d. There are two eccentric blocks on the motor's upper and down

e. The eccentric blocks make cubic element movement (horizonal, up-down, and tilting)

f. By changing the eccentric block's included angle (the upper and down),

the track that material moves on the mesh, will be changed So that the

 screening target will be realized

a. With a small volume and the light weight, it is easy to install and move.

b. With a special mesh frame design and a long life for mesh, and it is easy to change and clean mesh

c. All- closed design, no dust pollution, low noise.

d. Different particles are graded eduction automatically, so the auto-operation can be realize

e. The outlet's location can be adjusted to anywhere you need, it is very easy to form producing line

f. Low consumption and noise, environmental-friendly and energy conservation

Support to OEM order.

Pls provide the follow information for us.

a. material name, the density, water content(%).

b.  the necessary capacity you required(per hour)

c.  Machine material. Pls choose one:

   1. SUS 304 or SUS316

    2. All carbon steel 235 A

   3. The contacting part is SUS304, the other parts is carbon steel.

d.  the dimension of the machine can be designed for you.

e.  Additional parts ,like the mobil wheel, removing-dust hole

and noise-proof base,can be easily fixed and maintained
