small bending radius, pipe OD up to 42mm, pipe bending machine EHPB642, 2 years warranty

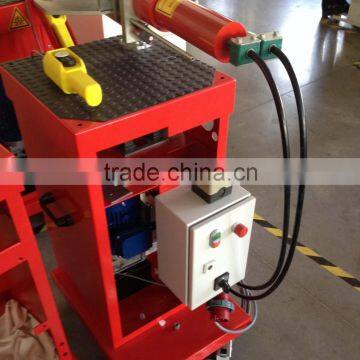

Electric hydraulic pipe bending machine EHPB642

 Futures of pipe bending machine:

1. Hydraulic driven, which ensures an excellent bending result.

2. Small bending raduis, bending raduis of EHPB 642 is from 2.5D to 3D

3. Reliable components, hydraulic pump from Bucher, Parker valves and Schneider                     switchs.

4. Large working ranges, tube OD from 6mm up to 42mm, maximum tube wall thickness is         up to 5mm.

5. Portable device, fixed onto wheel frame, suitable for both stationary use and on-site               working.

6. Limit switch, very convenient for mass bendings.

7. This EHPB642 pipe bending machine can be integrated with de-burring, ferrule pre-assembly and 37 ° flaring functions. The manufacturer could customize this bending machine according to your specific requirements.

Bending Dies and Winghead:

 Bending dies: 6,8,10,12,14,15,16,18,20,22,25,28,30,35,38,42mm

Winghead: two bending dies corespond one winghead, ie. 6mm and 8mm bending dies use the same winghead for the bending process.

Both bending dies and winghead can be fixed on the machine quickly,  easily changeover.

Bending dies and winghead.
