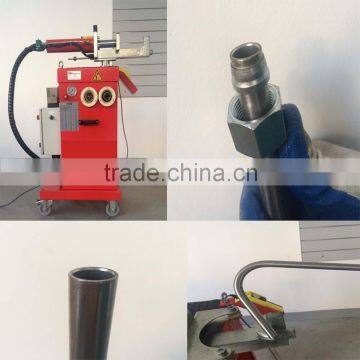

multi-functional portable bending machine SPC642 for tube bending, de-burring, cutting assembly and flaring

Multi-functional bending machine SPC642

 Futures of bending machine SPC642:

1. Hydraulic driven, which ensures an excellent bending result.

2. Small bending raduis, bending raduis of SPC 642 is from 2.5D to 3D

3. Reliable components, hydraulic pump from Bucher, Parker valves and Schneider                     switchs.

4. Large working ranges, tube OD from 6mm up to 42mm, maximum tube wall thickness is         up to 5mm.

5. Portable device, fixed onto wheel frame, suitable for both stationary use and on-site               working.

6. Limit switch, very convenient for mass bendings.

7. This SPC642 bending machine integrates with de-burring,  cutting ring pre-setting and 37 degree flaring functions. The manufacturer could customize this bending machine according to your specific requirements.

Details of this bending machine SPC642 machine:

Bending Dies and Winghead:

 Bending dies: 6,8,10,12,14,15,16,18,20,22,25,28,30,35,38,42mm

Winghead: two bending dies corespond one winghead, ie. 6mm and 8mm bending dies use the same winghead for the bending process.

Both bending dies and winghead can be fixed on the machine quickly,  easily changeover.

Bending dies and winghead.

De-burring unit for tube end internal and external de-burring

hydraulic motor driven, Tube OD: 6-42mm

Hydraulic cylinder for cutting pre-assembly and 37 degree flaring

Cutting ring pre-assembly unit

37 ° Flaring unit.

 SPC642 bending machine, the best choice for pipe bending solution!
