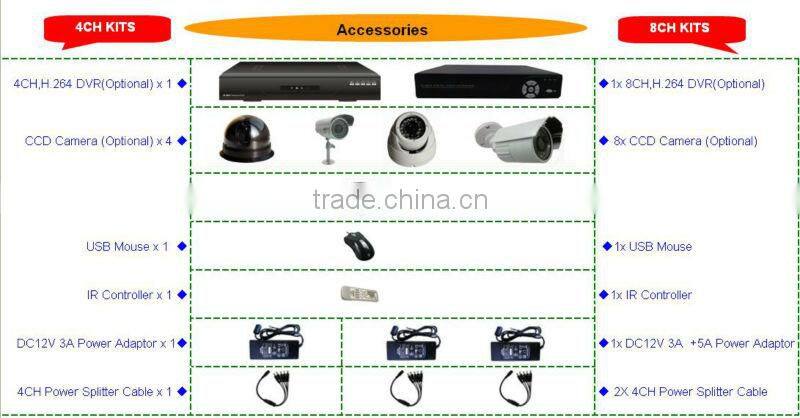

HOT 24 Channel H264 Cctv Camera Kit Home Alarm System

MODEL

AP-144G/ AP-1474A

Image Device

1/3" SONY

TV Format

PAL/NTSC

Number of Pixel

NTSC: 510x492/ PAL: 512x582

Resolution

420 TV lines

Sync.System

Internal

IR LED

24 units IR LEDs

IR Effective Range

UP to 15 meters

Minimum Illumination

0LUX(IR ON)

LEN

f3.6MM/6MM (F2.0)

IP Rating

IP66

AGC

AUTO

S/N Ratio

≥48dB

Smart Light Control

YES

Gain Control

Auto

White Balance

Auto(2500°K~9500°K)

Electronic Shutter

Auto E Shutter:1/60(1/50)~1/100000 Sec(PAL)

1/60~-1/120,000 Sec(NTSC)

Back light Compensation

AUTO

Video Output

1.0Vp-p composite 75ohm

Power Consumption

300mA/350mA

Power Supply

DC12V

Operation Temp

-10°C~+50°C

System

Model

AP-9624D

AP-9632D

Main Processor

1 X HI3520A

1XHI3521

Operating System

Embedded LINUX

System Resources

Pentaplex function:live,recording,playback,backup & remote access

User Interface

GUI,on-screen menu tips

Control Device

Front panel,USB mouse,IR remote control

Video

Video Standards

PAL 625 line,50 f/s;NTSC 525 line,60 f/s

Video Compression

H.264 High profile

Video Recording

CIF:PAL 1f/s-25f/s NTSC 1f/s-30f/s;

Motion Detection

Zones:192(16*12)detection zones,Sensitivity:1-6(6 is highest)

Trigger recording,PTZ movement,tour,alarm,e-mail & FTP

TV Output Audjustment

Adjust TV output color & display zone

Audio

Audio Conpression

G711A

Bidrectional Talk

Support

Record &

Playback

Recording Mode

Manual>Alarm>Video Detection>Continuous

Playback

Max 16 channels playback simultaneously,

Pause,stop,rewind,fast play,slow play,next file,previous file,repeat,shuffle,backup selection

Search Mode

Time/Date,Alarm,Motion Detection & exact search(accurate to second)

Storage &

Backup

Space Occupation

Video: 1080p 80G/day/ch, 720p 26G/day/ch, 960H 24G/day/ch,

D1 16~20G/day/ch ; Audio: 691.2M/day/channel

HDD Management

Hard disk hibernation technology,HDD faulty alarm & Raid(Redundancy)

Backup Mode

Network download/Flash stick

Interface

Video Input

24 channel

32 channel

Video Output

2ch BNC output, 1ch VGA output,1ch HDMI

2ch BNC output (include 1ch Spot output),1ch VGA output,1ch HDMI

Audio Input

8 channel

16 channel

Audio Output

1 channel

Alarm Input

8 channel

Relay Output

1 channel

Hybrid mode

Only Analog(DVR):

24*CIF

Only IP(NVR):

8*960H/4*720P/2*1080P/ 1*720P+7*D1/ 1*1080P+1*720P+2*D1

Only Analog(DVR):

32 *CIF

Only IP(NVR):

16*D1/2*1080P +2*720P

/1*1080P+1*720P+6*960H

/8*720P

Net Interface

RJ-45 10M/100M

PTZ Control

1 RS485, 1 RS232

3G/WIFI

Support

USB Interface

2* USB2.0 port for mouse and backup

Hard Disk

2 SATA port(Max 2 x 3T)

Environmental

Power Supply

12V/4A

Power Consumption

<15W

Working Temperature

0-55

Working Humidity

10%-90%

Atmosphere Pressure

86kpa-106kpa

Dimension

475*115*338mm

Weight

5kg

Mounting

Desktop
